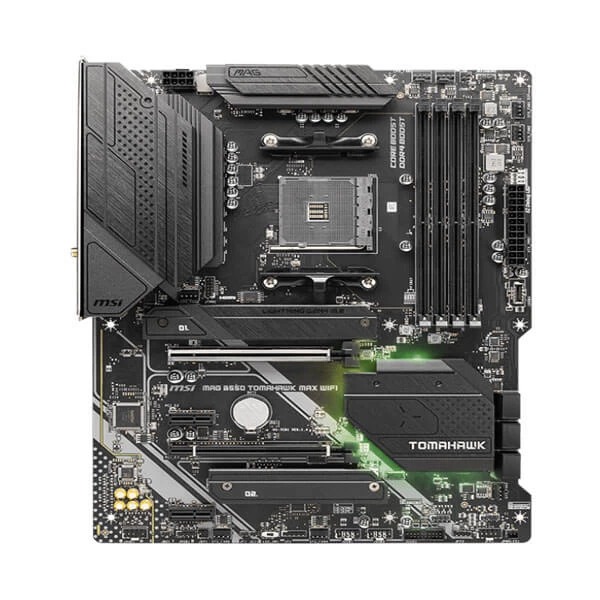

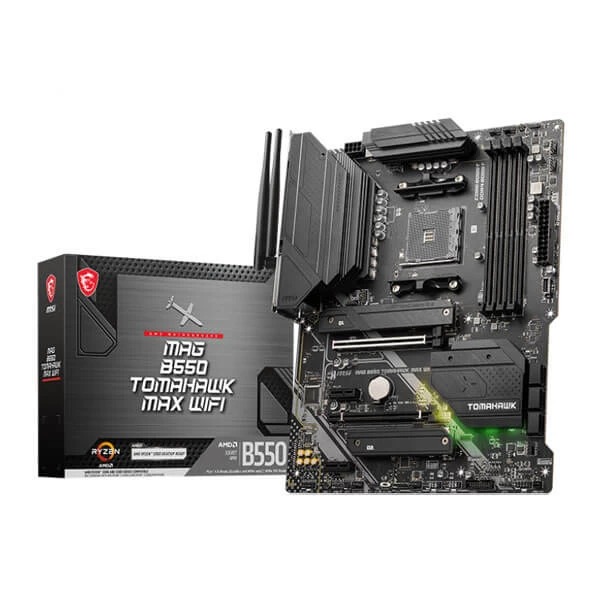

MSI MAG B550 Tomahawk MAX WIFI Motherboard
MPN MAG-B550-TOMAHAWK-MAX-WIFI · Brand MSI · ATX
MSI MAG B550 Tomahawk MAX WIFI Motherboard. Highlights: up to 5100+
Inclusive of GST · GST invoice available
Overview
The MSI MAG B550 Tomahawk MAX WIFI Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: AM4|AM5; Chipset: B550; Form Factor: ATX; Memory Type: DDR4; Memory Speed: up to 5100+. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹17399 subject to availability — confirm at checkout
Datasheet
| Platform | AMD |
|---|---|
| Motherboard Series | MSI MAG |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Memory Feature | Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
| Expansion Slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.2 |

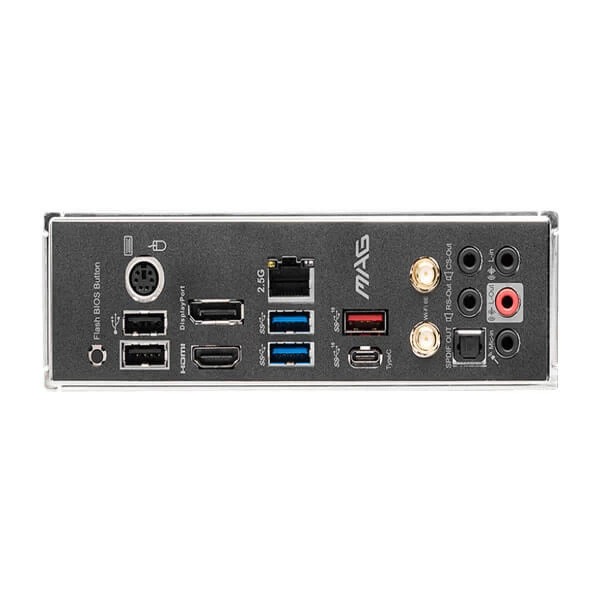

| Back Panel I/O Ports | Keyboard / Mouse DisplayPort 1.4 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 Port HDMI™ 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-C Optical S/PDIF OUT |
| Internal I/O Connector | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |
| Memory Type | DDR4 |
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B550 |
| Socket | AM4, AM5 |
| CPU Type | Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000 |
| Max Memory | 128 GB |
| Memory Speed | up to 5100+ |
