The MSI MAG B650M Mortar Wifi DDR5 AMD Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹20445 subject to availability — confirm at checkout
MSI Pro B760M-E DDR5 Intel Motherboard
₹9,790.00

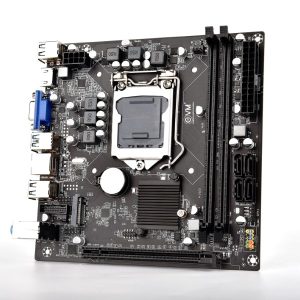

EVM EVMH110NEL H110-DDR4 Motherboard With Nvme Slot
₹4,915.00

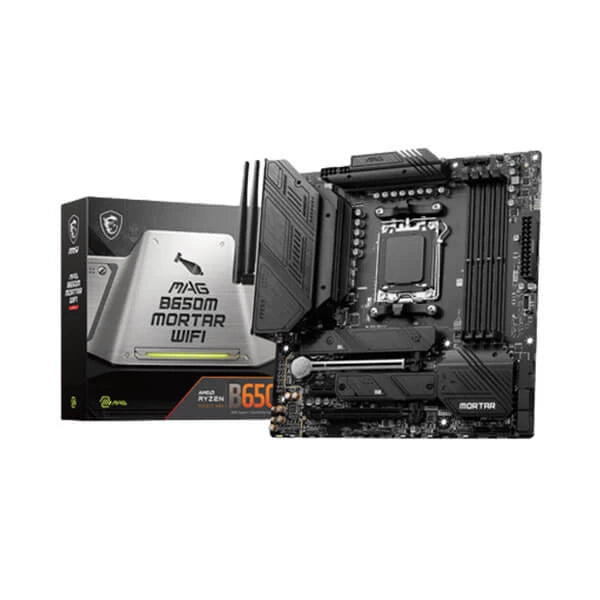

MSI MAG B650M Mortar Wifi DDR5 AMD Motherboard
₹21,815.00
MSI MAG B650M Mortar Wifi DDR5 AMD Motherboard
Additional information
| Lan | Realtek RTL8125B 2.5Gbps LAN |
|---|---|
| Usb | 4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function |
| Audio | Realtek® ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel |
| Model | MAG-B650M-MORTAR-WIFI |
| Memory | 4x DDR5Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz |
| Storage | 2x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| Warranty | 3 Years |
| Cpu Support | Supports AMD Ryzen 7000 Series Desktop ProcessorsSocket AM5 |
| Led Feature | 4x EZ Debug LED |
| Internal I/O | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C |
| Expansion Slot | 2x PCI-E x16 slotSupport x16/ x41x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Upcb Dimension | M-ATX |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI1x DisplayPort Support HDMITM 2.1 with HDRmaximum resolution of 4K 60HzSupport DP 1.4maximum resolution of 8K 60Hz |
| Wireless / Bluetooth | AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2 |
