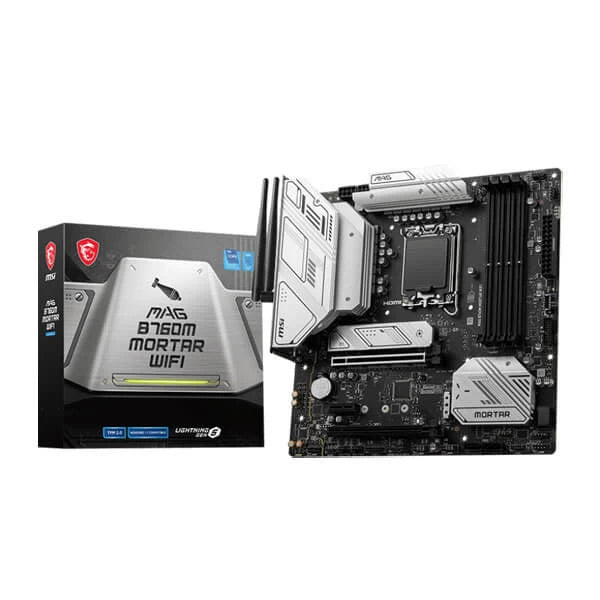

MSI MAG B760M Mortar Wifi DDR5 Intel Motherboard
MPN B760M-MORTAR-WI-FI · Brand MSI
The MSI MAG B760M Mortar WiFi is a Micro-ATX motherboard for Intel 12th/13th Gen LGA1700 processors, featuring DDR5 support up to 7000+ MHz (OC), PCIe 5.0, Intel Wi-Fi 6E, and a robust 12+1+1 power design
Inclusive of GST · GST invoice available
Overview
The MSI MAG B760M Mortar WiFi is a Micro-ATX motherboard built on Intel's B760 chipset, designed for LGA1700-socket processors from Intel's 12th and 13th Generation Core, Pentium Gold, and Celeron families. Its compact 243.84 mm x 243.84 mm PCB is constructed with a 6-layer design using 2 oz thickened copper on server-grade material, contributing to signal integrity and structural durability across demanding workloads. Memory support is a highlight of this board: four DDR5 DIMM slots accommodate up to 128 GB of RAM, with JEDEC profiles starting at 4800 MHz and overclocked speeds reaching 7000+ MHz under the 1DPC 1R configuration. The 12+1+1 Duet Rail Power System, paired with dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies, provides a stable power delivery foundation for both stock and overclocked operation. For storage and expansion, the board features a primary PCIe 5.0 x16 slot from the CPU, two M.2 slots (both supporting PCIe 4.0 x4, with the second also offering SATA mode), and four SATA 6G ports with support for RAID 0, 1, 5, and 10. Thermal management is addressed through an extended heatsink design and M.2 Shield Frozr covers on the M.2 slots. Connectivity is handled by Intel Wi-Fi 6E supporting 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.4 Gbps with MU-MIMO, alongside Bluetooth 5.3. Wired networking is provided by a Realtek 2.5 Gbps LAN controller. The rear panel includes HDMI 2.1 (up to 4K 60 Hz) and DisplayPort 1.4 (up to 4K 60 Hz) outputs for use with processors featuring integrated graphics, a USB 3.2 Gen 2x2 Type-C port at 20 Gbps, three USB 3.2 Gen 2 Type-A ports, and Optical S/PDIF output. Audio is managed by a Realtek ALC897 codec offering 7.1-channel output. Internal headers include support for ARGB (2x JARGB_V2) and RGB (1x JRGB) LED strips, four EZ Debug LEDs for straightforward POST troubleshooting, a TPM 2.0 pin header, and a Thunderbolt header (JTBT with RTD3 support). The board ships with a 3-year manufacturer warranty and supports Windows 10 and Windows 11 (64-bit). Key Verified Specifications: - Chipset: Intel B760 - Socket: LGA1700 - Form Factor: Micro-ATX (243.84 mm x 243.84 mm) - Memory: 4x DDR5 DIMM, max 128 GB, up to 7000+(OC) MHz - Primary PCIe Slot: PCIe 5.0 x16 (CPU) - M.2 Slots: 2x (both PCIe 4.0 x4; M.2_2 also SATA) - SATA Ports: 4x SATA 6G - Wireless: Intel Wi-Fi 6E (2.4/5/6 GHz, up to 2.4 Gbps) - Bluetooth: 5.3 - LAN: Realtek 2.5 Gbps - Rear USB: 4x USB 2.0, 3x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C - Display Output: 1x HDMI 2.1, 1x DisplayPort 1.4 - Audio: Realtek ALC897, 7.1-channel, S/PDIF out - Power Design: 12+1+1 Duet Rail, dual 8-pin CPU - Warranty: 3 Years

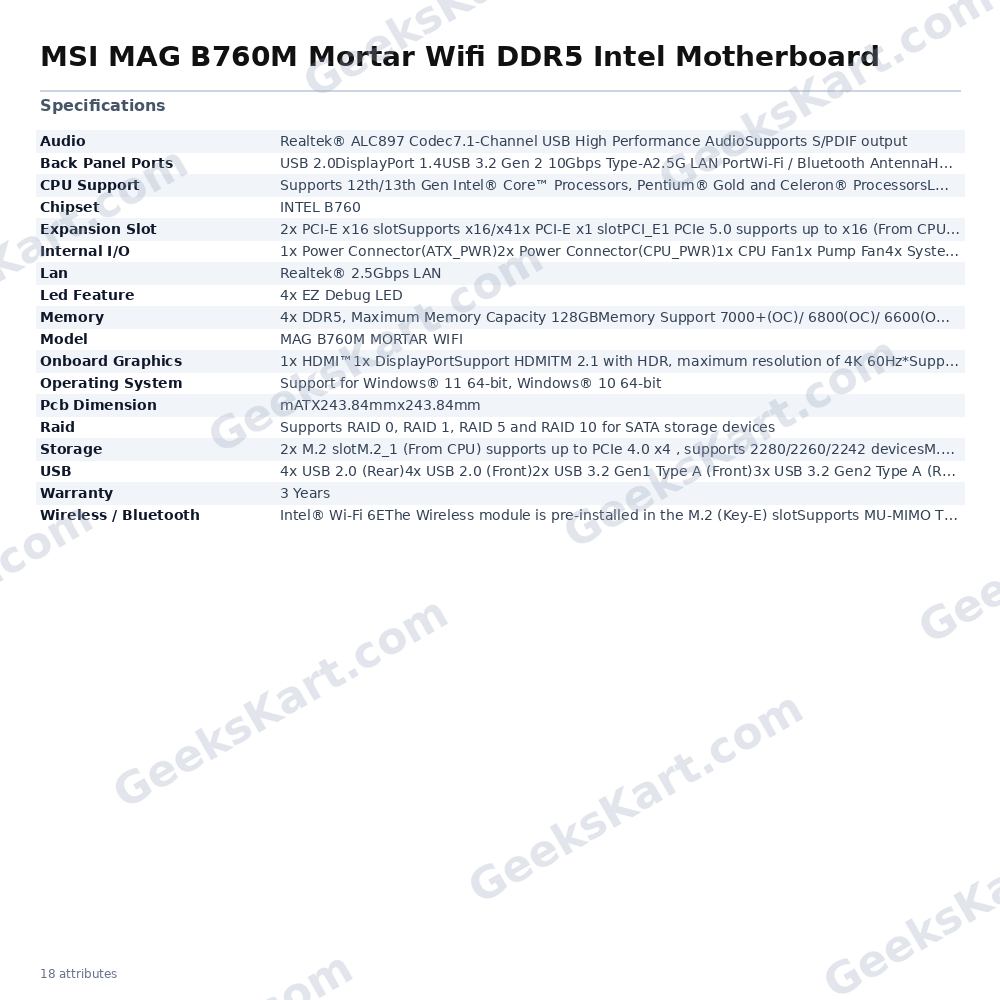

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | INTEL B760 |
| Lan | Realtek® 2.5Gbps LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC897 Codec7.1-Channel USB High Performance AudioSupports S/PDIF output |
| Model | MAG B760M MORTAR WIFI |
| Memory | 4x DDR5, Maximum Memory Capacity 128GBMemory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7000+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHz |
| Storage | 2x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G port |
| CPU Support | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA1700 |
| Led Feature | 4x EZ Debug LED |
| Internal I/O | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C |
| Pcb Dimension | mATX243.84mmx243.84mm |
| Expansion Slot | 2x PCI-E x16 slotSupports x16/x41x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Back Panel Ports | USB 2.0DisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI™ 2.1 PortUSB 3.2 Gen 2×2 20Gbps Type-COptical S/PDIF OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI™1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless / Bluetooth | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11 |
