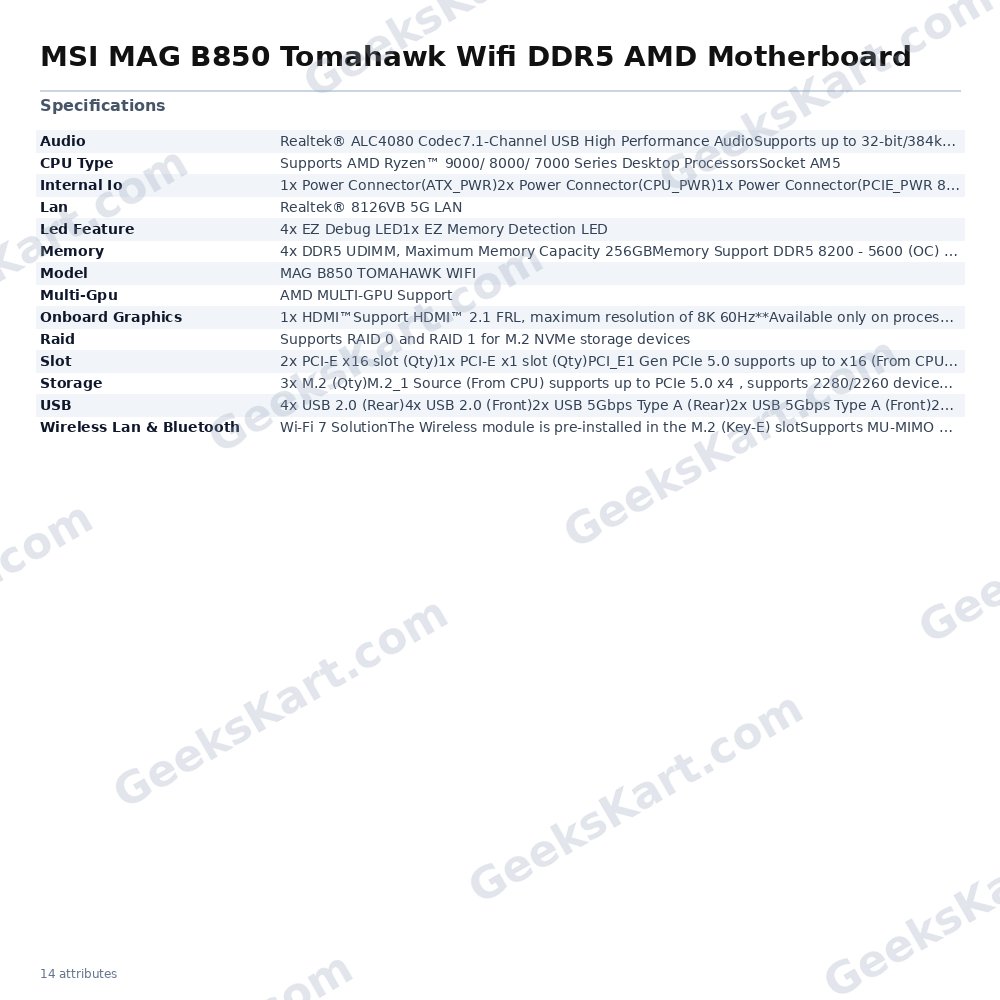

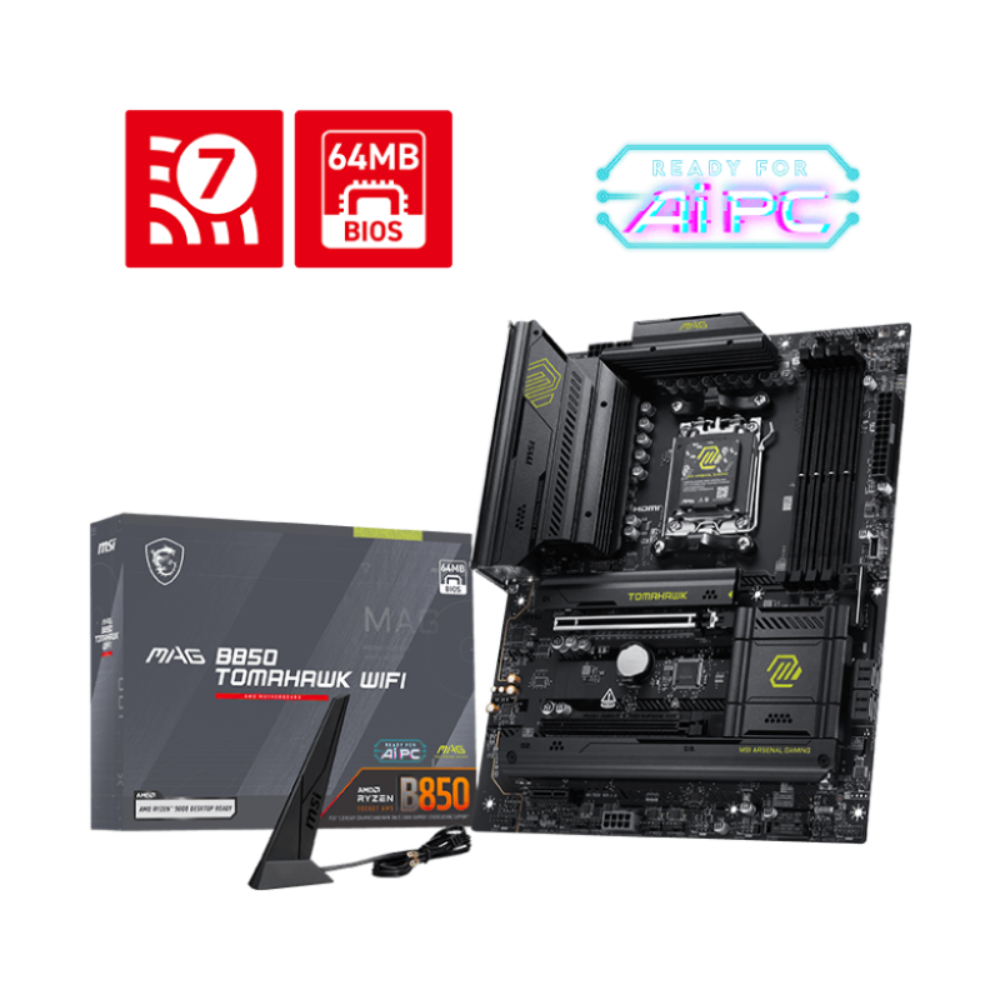

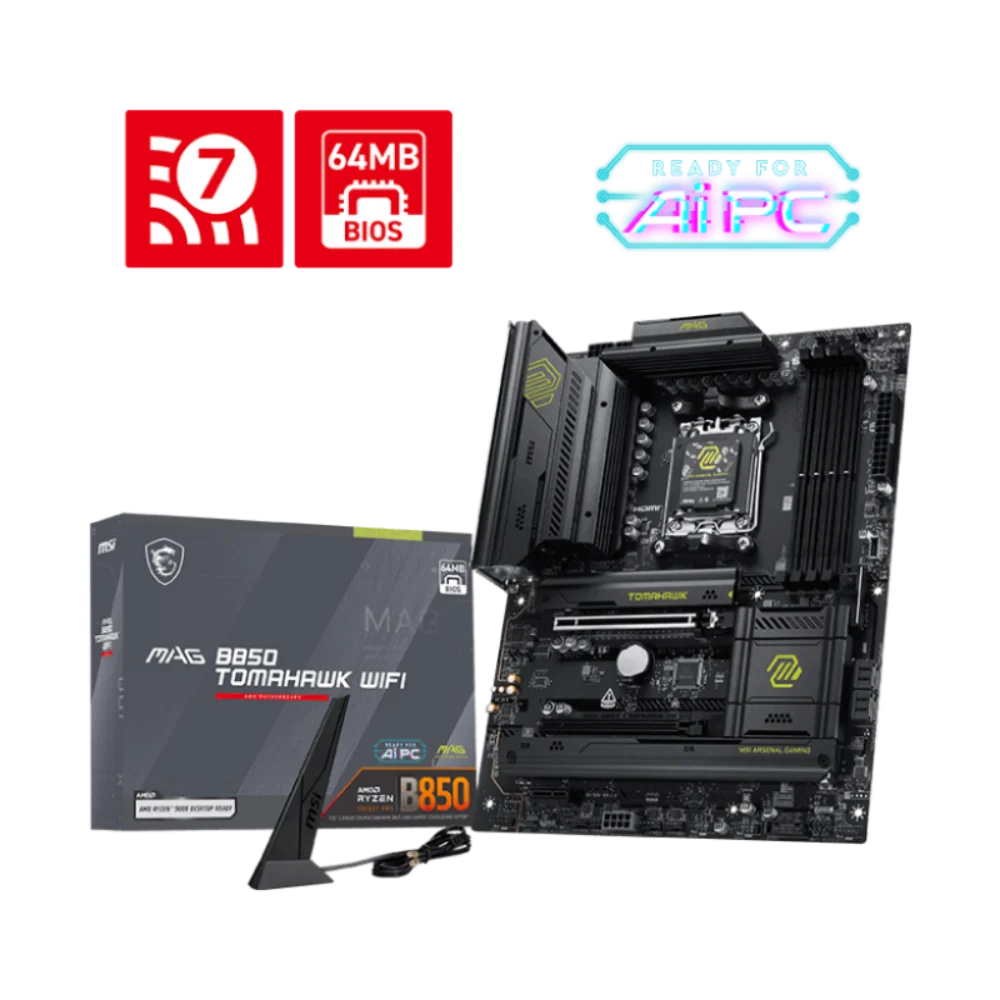

MSI MAG B850 Tomahawk Wifi DDR5 AMD Motherboard

The MSI MAG B850 Tomahawk WiFi is an ATX-form-factor motherboard built on AMD's B850 chipset and Socket AM5, designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors. It positions itself as a performance-minded platform for gamers and system builders who want current-generation connectivity and robust power delivery without stepping up to a flagship X-series board. At the heart of its power delivery is a 14+2+1 Duet Rail Power System paired with dual 8-pin CPU power connectors and 80A Smart Power Stage MOSFETs. This substantial VRM configuration is complemented by a multi-layer thermal solution: an extended heatsink enlarges heat-dissipation surface area, a heavy-plated VRM heatsink covers the upper MOSFETs, and high-quality 7 W/mK MOSFET and choke thermal pads help sustain stable performance during sustained all-core loads. The enlarged chipset heatsink further aids passive cooling across the board. The memory subsystem accommodates four DDR5 UDIMM slots with a maximum capacity of 256 GB. Under AMD EXPO and manual overclocking, single-rank single-DIMM configurations can reach 8,200+ MT/s, while JEDEC speeds span 4,800–5,600 MT/s natively. Dual-channel operation, Non-ECC unbuffered memory, and CUDIMM (clock-driver bypass mode) are all supported. Storage options are generous: the primary M.2_1 slot connects directly to the CPU and supports PCIe 5.0 x4 speeds on Ryzen 9000 and 7000 series processors, while M.2_2 (CPU) and M.2_3 (chipset) each offer PCIe 4.0 x4. All three M.2 slots benefit from the EZ M.2 Shield Frozr II thermal solution. Four SATA 6 Gb/s ports round out storage connectivity, and RAID 0 and RAID 1 are supported for M.2 NVMe devices. Expansion slots include one PCIe 5.0 x16 slot (from CPU) for the primary graphics card, one PCIe 4.0 x4 slot (from chipset), and one PCIe 3.0 x1 slot. A supplemental PCIe power connector (8-pin PCIE_PWR) is present for high-TDP GPU setups. Networking is handled by a Realtek 8126VB 5G LAN controller and a pre-installed Wi-Fi 7 wireless module (802.11a/b/g/n/ac/ax/be) supporting MU-MIMO TX/RX across 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.9 Gbps (160 MHz channel width). Bluetooth 5.4 with MLO and 4K-QAM is included. Note: 6 GHz band availability depends on regional regulations, and Wi-Fi 7 and Bluetooth 5.4 functionality require Windows 11 version 24H2. Audio is powered by a Realtek ALC4080 codec delivering 7.1-channel USB High Performance Audio with up to 32-bit/384 kHz playback support on the front-panel header and S/PDIF output. USB connectivity spans the full speed range: rear I/O includes four USB 2.0 Type-A, two USB 5 Gbps Type-A, two USB 10 Gbps Type-A, one USB 10 Gbps Type-C, and one USB 20 Gbps Type-C. Front-panel headers add four USB 2.0, two USB 5 Gbps Type-A, and one USB 10 Gbps Type-C port. Builder-friendly features include EZ M.2 Clip II (tool-free M.2 retention), EZ PCIe Release, EZ Antenna, and EZ Debug LEDs (four diagnostic LEDs plus one EZ Memory Detection LED). RGB and ARGB header support comprises three JARGB_V2 addressable headers and one JRGB header, alongside a TPM 2.0 pin header and two BCLK frequency jumpers for tuning. Verified Specifications: - Socket: AM5 | Chipset: AMD B850 - CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series - Memory: 4x DDR5 UDIMM, max 256 GB; up to 8,200+ MT/s (OC, 1DPC 1R) - VRM: 14+2+1 phases, dual 8-pin CPU power, 80A SPS - M.2 Slots: 3 (1x PCIe 5.0 x4 CPU, 1x PCIe 4.0 x4 CPU, 1x PCIe 4.0 x4 Chipset) - SATA: 4x 6 Gb/s - PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 - LAN: Realtek 8126VB 5G - Wireless: Wi-Fi 7 (802.11be), up to 2.9 Gbps, Bluetooth 5.4 - Audio: Realtek ALC4080, 7.1-ch, 32-bit/384 kHz - USB 20 Gbps: 1x Type-C (rear) - Onboard Video: 1x HDMI 2.1 FRL (up to 8K 60Hz, iGPU only) - RAID: 0, 1 (NVMe M.2) - Form Factor: ATX
