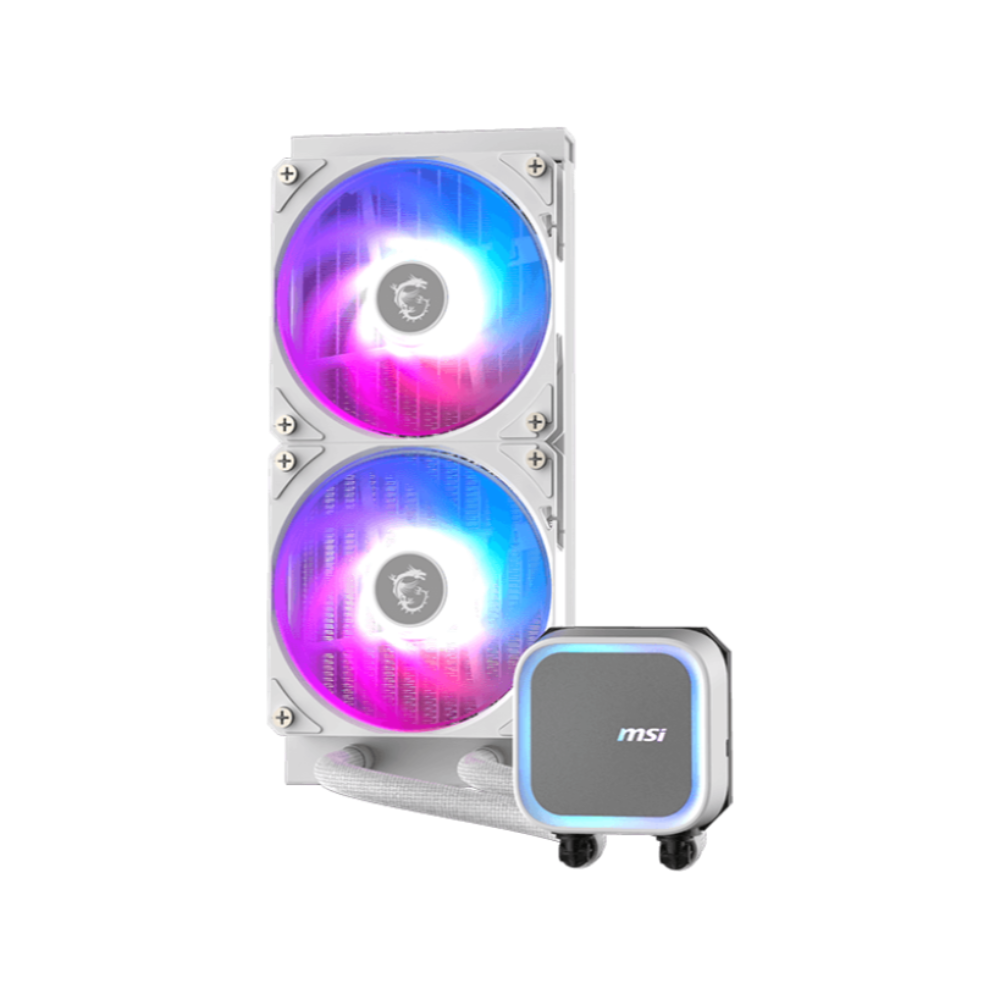

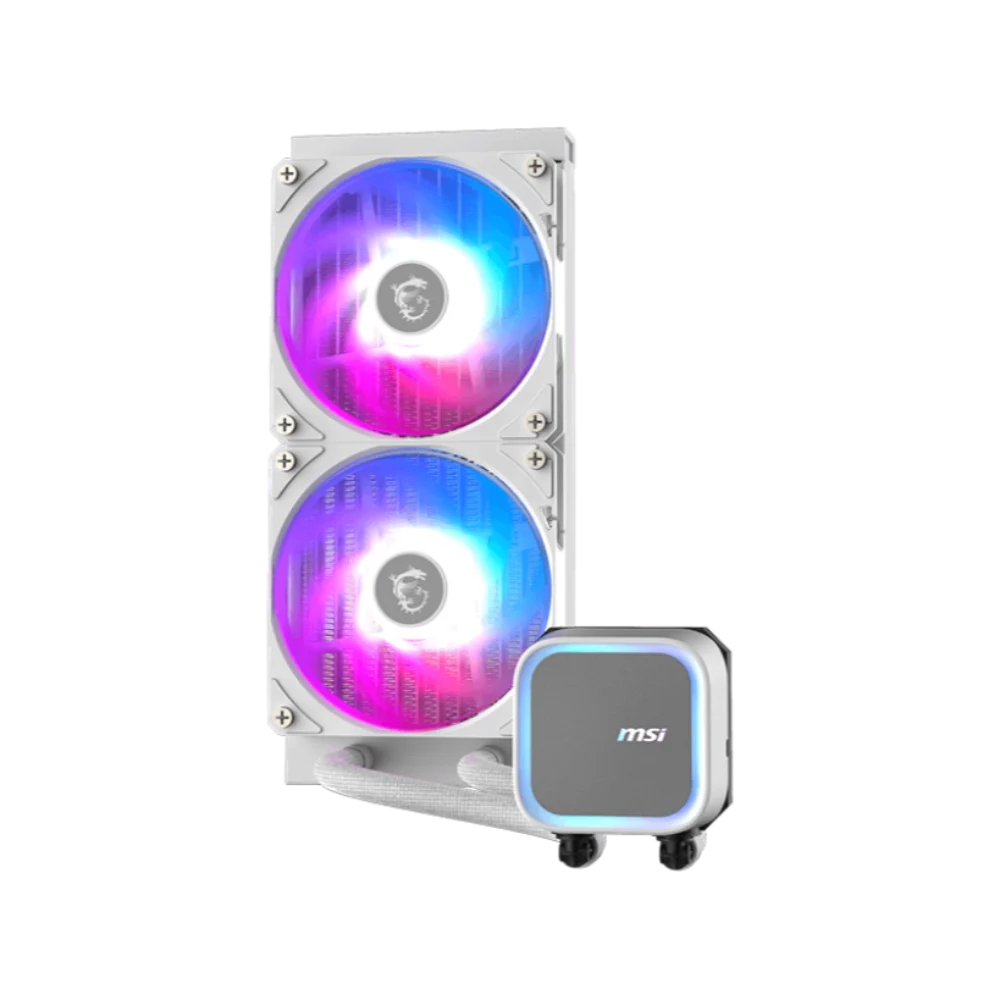

MSI MAG Coreliquid A13 ARGB 240mm CPU Liquid Cooler ( White )
MPN MSI-MAG-CORELIQUID-A13-240MM-ARGB-WHITE · Brand MSI
The MSI MAG Coreliquid A13 ARGB 240mm White AIO cooler features a 3,800 RPM copper-base pump, dual 120mm CycloBlade 7 PWM fans with ARGB GEN2 lighting, and supports Intel LGA 1700/1851 and AMD AM4/AM5 platforms
Inclusive of GST · GST invoice available
Overview
The MSI MAG Coreliquid A13 ARGB 240mm CPU Liquid Cooler in White is a purpose-built all-in-one liquid cooling solution for gamers and builders who want effective thermal management paired with refined ARGB aesthetics. Part of MSI's MAG (ARSENAL GAMING) series, this cooler blends angular and curved design elements into a cohesive white finish that suits minimalist and RGB-forward builds alike. At the heart of the cooler sits a high-performance pump rated at up to 3,800 RPM (±10%), operating at just 20 dBA average noise output and drawing 2.88W of power. The pump connects via a standard 3-pin header and a 5V ARGB 3-pin female header, and carries a rated life expectancy of 25,000 hours under typical use. The full copper cold plate features a precision 0.1mm micro-channel design that maximises heat transfer from the CPU surface, while the updated water channel layout improves coolant flow for more efficient thermal dissipation. The aluminium radiator measures 277 × 119.6 × 27mm with 20 fins per inch and 12 widened internal water channels that increase water flow by 25% compared to narrower designs, all within the standard 27mm thickness. Cooling airflow is delivered by two MSI CycloBlade 7 fans — each 120 × 120 × 25mm — producing 62.6 CFM per fan, powered by PWM control and rated for 40,000 hours at 40°C. Both the fans and the pump head carry ARGB GEN2 lighting, fully compatible with MSI Mystic Light software, which supports 16.8 million colours. Installation is simplified through MSI's EZ Connect system: fans come pre-mounted and cable management is reduced to a single consolidated cable run. The rotatable top cover allows the pump head logo to always face forward regardless of radiator orientation. Tubing is constructed from nylon-braided EPDM, offering flexibility, corrosion resistance, and reduced coolant evaporation over time. Socket compatibility covers Intel LGA 1700 and LGA 1851, as well as AMD AM4 and AM5 platforms, making this cooler suitable for current-generation processors from both manufacturers. The package includes thermal paste and mounting screws. Key Specifications: — Model: MAG-CORELIQUID-A13-240-WHITE — Radiator: 277 × 119.6 × 27mm, Aluminium, 20 FPI — Fans: 2 × 120mm CycloBlade 7, 62.6 CFM each, Rifle Bearing, PWM, ARGB GEN2 — Fan Life: 40,000 hrs @ 40°C — Fan Power: 1.8W (max 2.16W), 0.15A (max 0.18A) — Pump Speed: 3,800 RPM ±10% — Pump Noise: 20 dBA (avg.) — Pump Power: 2.88W @ 0.24A — Pump Life: 25,000 hours typical — Cold Plate: Full Copper, 0.1mm micro-channel — Block Dimensions: 70.9 × 69.3 × 56.98mm — Tube Material: Nylon-braided EPDM — Lighting: ARGB GEN2 (block + fans), 5V 3-pin header — Intel Support: LGA 1700 / LGA 1851 — AMD Support: AM4 / AM5 — Included: Thermal paste, screws

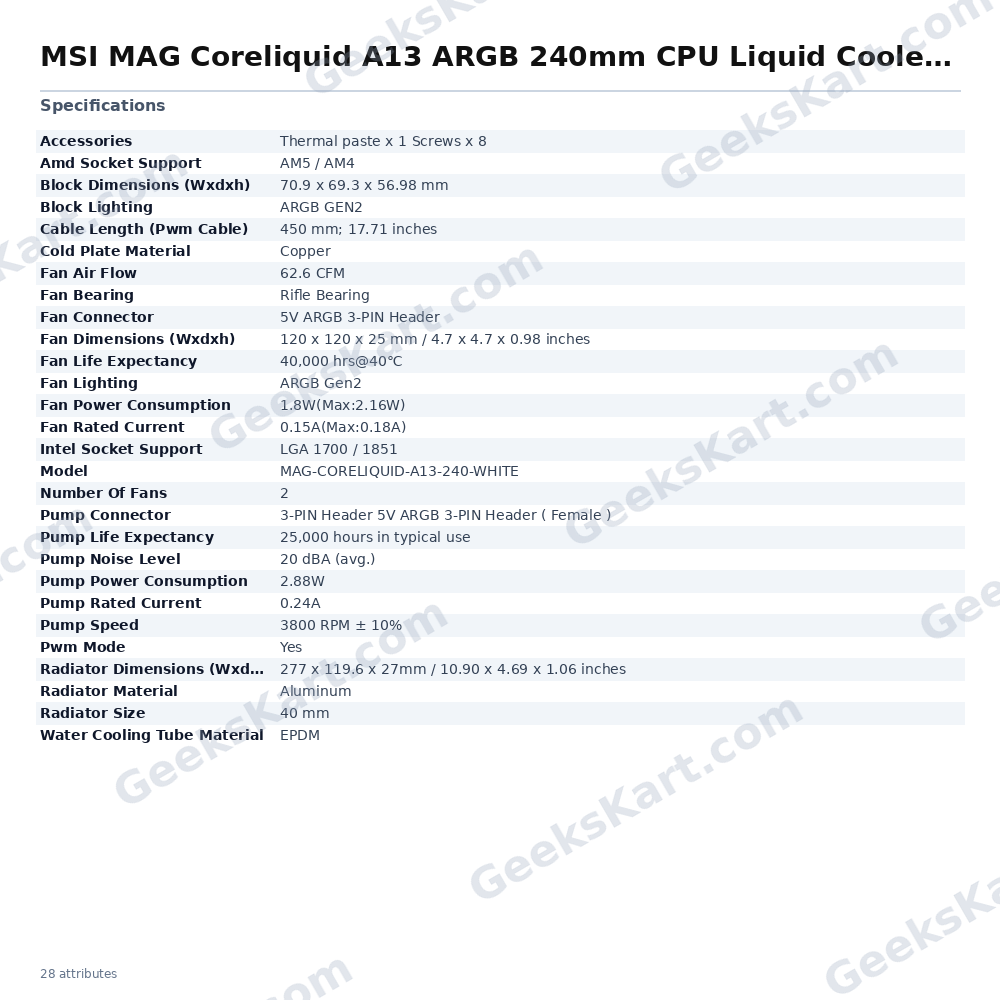

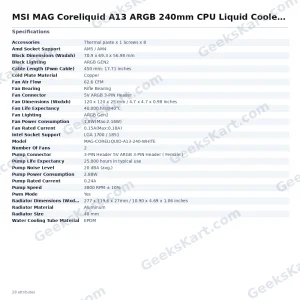

Datasheet
| Model | MAG-CORELIQUID-A13-240-WHITE |
|---|---|
| Pwm Mode | Yes |
| Pump Speed | 3800 RPM ± 10% |
| Accessories | Thermal paste x 1 Screws x 8 |
| Fan Bearing | Rifle Bearing |
| Fan Air Flow | 62.6 CFM |
| Fan Lighting | ARGB Gen2 |
| Fan Connector | 5V ARGB 3-PIN Header |
| Radiator Size | 40 mm |
| Block Lighting | ARGB GEN2 |
| Number Of Fans | 2 |
| Pump Connector | 3-PIN Header 5V ARGB 3-PIN Header ( Female ) |
| Pump Noise Level | 20 dBA (avg.) |
| Fan Rated Current | 0.15A(Max:0.18A) |
| Radiator Material | Aluminum |
| Amd Socket Support | AM5 / AM4 |
| Pump Rated Current | 0.24A |
| Cold Plate Material | Copper |
| Fan Life Expectancy | 40,000 hrs@40℃ |
| Intel Socket Support | LGA 1700 / 1851 |
| Pump Life Expectancy | 25,000 hours in typical use |
| Fan Power Consumption | 1.8W(Max:2.16W) |
| Fan Dimensions (Wxdxh) | 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches |
| Pump Power Consumption | 2.88W |
| Block Dimensions (Wxdxh) | 70.9 x 69.3 x 56.98 mm |
| Cable Length (Pwm Cable) | 450 mm; 17.71 inches |
| Radiator Dimensions (Wxdxh) | 277 x 119.6 x 27mm / 10.90 x 4.69 x 1.06 inches |
| Water Cooling Tube Material | EPDM |
