MSI MAG Forge 120A Airflow ATX Mid Tower Case
MPN MAG-FORGE-120A-AIRFLOW · Brand MSI · ATX, mATX, Mini-ITX
The MSI MAG Forge 120A Airflow is an ATX mid-tower case featuring 6 pre-installed auto-RGB 120 mm fans, a tempered glass side panel, up to 240 mm AIO support, and 330 mm GPU clearance
Inclusive of GST · GST invoice available
Overview
The MSI MAG Forge 120A Airflow is an ATX mid-tower chassis engineered with airflow and RGB aesthetics at its core. Arriving with six auto-RGB 120 mm fans pre-installed — three at the front, two on top, and one at the rear — the case delivers immediate out-of-box performance without requiring additional fan purchases. Each fan is auto-RGB, meaning the lighting reacts and synchronises through the onboard LED On/Off button located on the front I/O panel, letting you toggle all lighting with a single press. The full-height tempered glass side panel gives an unobstructed view of your components and lighting, while the front mesh design encourages unimpeded airflow into the chassis. Builders with high-end graphics cards will appreciate the generous 330 mm maximum GPU clearance, accommodating flagship-tier cards including those from the NVIDIA 40 series. CPU cooler builders have up to 160 mm of vertical clearance for tall air coolers, and liquid cooling enthusiasts can install up to a 240 mm AIO radiator in both the front and top positions, or a 120 mm radiator at the rear. A magnetic dust filter on the top vents is removable for quick cleaning without tools. Storage flexibility is well covered with three dedicated 2.5-inch SSD mounts and two additional bays that accept either 2.5-inch SSDs or 3.5-inch hard drives. Seven expansion slots accommodate multi-GPU or high-profile expansion card configurations. The front I/O panel provides two USB 3.2 Gen 1 Type-A ports, a 3.5 mm headphone output, a microphone input, an LED On/Off button, and a reset button. Verified Specifications: - Form Factor: Mid Tower - Motherboard Support: ATX / Micro-ATX / Mini-ITX - Pre-installed Fans: 6 × 120 mm auto-RGB (3 front, 2 top, 1 rear) - Maximum Fan Support: 8 positions total (front: 3×120/2×140 mm; top: 2×120/2×140 mm; rear: 1×120 mm; PSU shroud: 2×120 mm) - Radiator Support: Front 120/140/240 mm, Top 120/240 mm, Rear 120 mm - Maximum GPU Length: 330 mm - Maximum CPU Cooler Height: 160 mm - Maximum PSU Length: 200 mm (ATX) - Expansion Slots: 7 - Drive Bays: 3 × 2.5" SSD + 2 × 2.5"/3.5" combo - I/O Ports: 2 × USB 3.2 Gen 1 Type-A, audio out, mic in, LED On/Off, reset - Dimensions (D×W×H): 411.6 × 210 × 498 mm - Net Weight: 6 kg - Colour: Black - Warranty: 1 Year

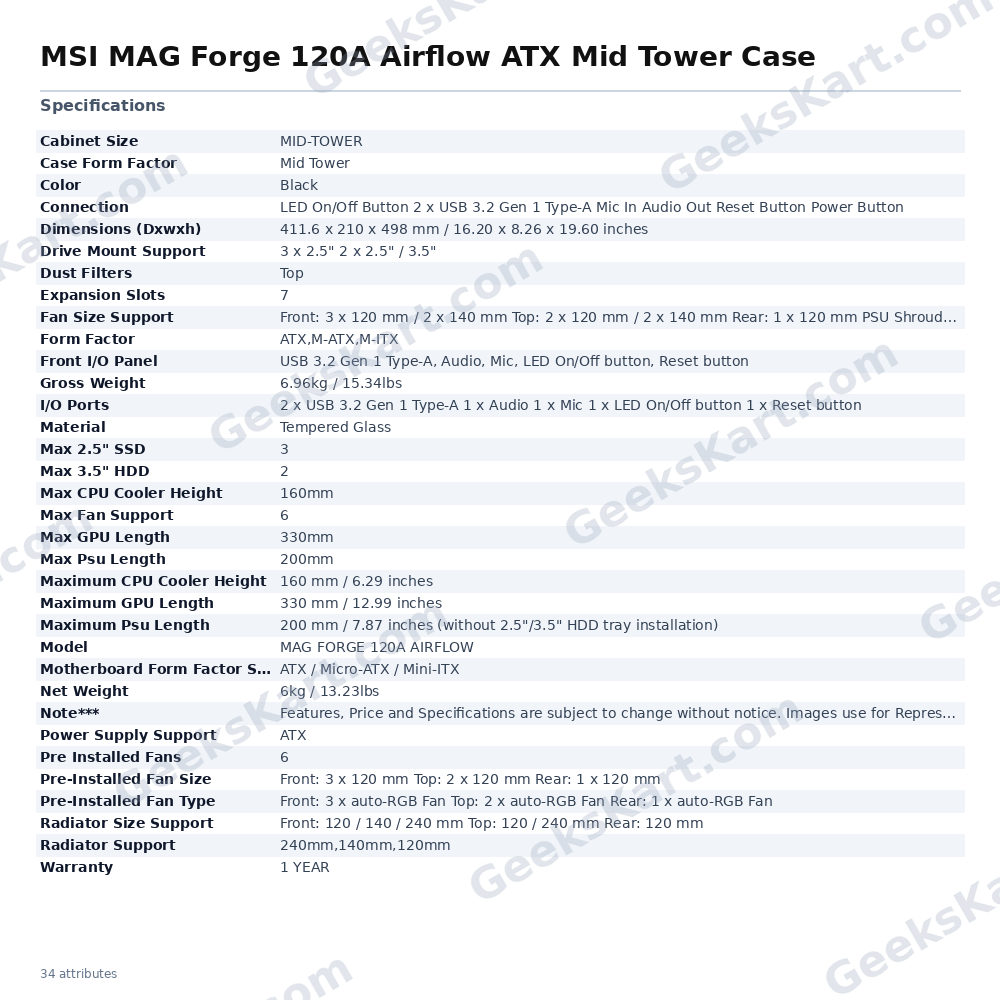

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| Color | Black |
| Model | MAG FORGE 120A AIRFLOW |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Tempered Glass |
| I/O Ports | 2 x USB 3.2 Gen 1 Type-A 1 x Audio 1 x Mic 1 x LED On/Off button 1 x Reset button |
| Connection | LED On/Off Button 2 x USB 3.2 Gen 1 Type-A Mic In Audio Out Reset Button Power Button |
| Net Weight | 6kg / 13.23lbs |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top |
| Gross Weight | 6.96kg / 15.34lbs |
| Max 2.5" SSD | 3 |
| Max 3.5" HDD | 2 |
| Max GPU Length | 330mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 Gen 1 Type-A, Audio, Mic, LED On/Off button, Reset button |
| Max Fan Support | 6 |
| Case Form Factor | Mid Tower |
| Fan Size Support | Front: 3 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm PSU Shroud: 2 x 120 mm |
| Radiator Support | 240mm,140mm,120mm |
| Dimensions (Dxwxh) | 411.6 x 210 x 498 mm / 16.20 x 8.26 x 19.60 inches |
| Maximum GPU Length | 330 mm / 12.99 inches |
| Maximum Psu Length | 200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation) |
| Pre Installed Fans | 6 |
| Drive Mount Support | 3 x 2.5" 2 x 2.5" / 3.5" |
| Power Supply Support | ATX |
| Max CPU Cooler Height | 160mm |
| Radiator Size Support | Front: 120 / 140 / 240 mm Top: 120 / 240 mm Rear: 120 mm |
| Pre-Installed Fan Size | Front: 3 x 120 mm Top: 2 x 120 mm Rear: 1 x 120 mm |
| Pre-Installed Fan Type | Front: 3 x auto-RGB Fan Top: 2 x auto-RGB Fan Rear: 1 x auto-RGB Fan |
| Maximum CPU Cooler Height | 160 mm / 6.29 inches |
| Motherboard Form Factor Support | ATX / Micro-ATX / Mini-ITX |
