MSI MAG Forge 321R Airflow ATX Mid Tower Cabinet ( Black )
MPN MSI-MAG-FORGE-321R-AIRFLOW-BLACK · Brand MSI · Mid Tower

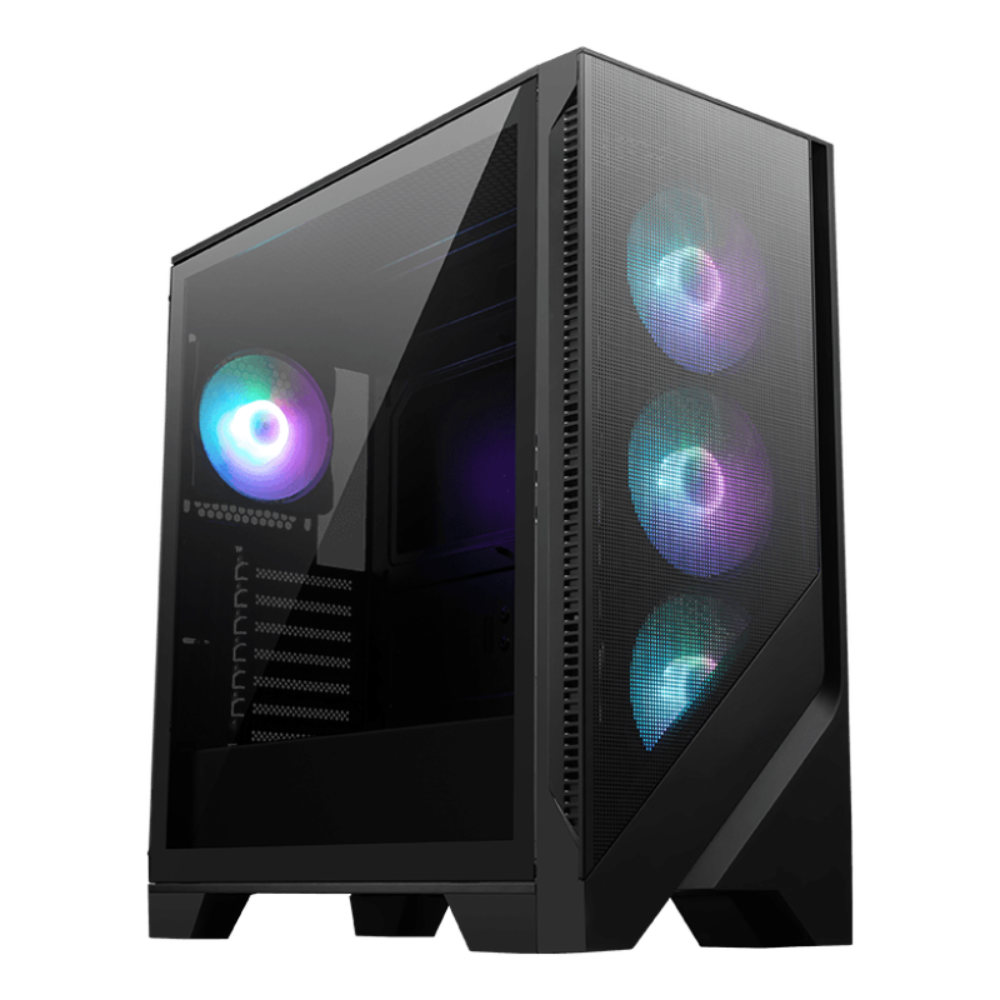

The MSI MAG Forge 321R Airflow is an ATX mid-tower cabinet featuring a front mesh panel, four pre-installed ARGB fans, tempered glass side panel, USB 3.2 Gen 2×2 Type-C front I/O, and support for up to a 360 mm AIO and 390 mm GPU
Inclusive of GST · GST invoice available
Overview
The MSI MAG Forge 321R Airflow is a full-size ATX mid-tower PC cabinet engineered to keep high-performance builds cool and visually striking. Its front mesh panel promotes unrestricted airflow into the chassis, channelling air efficiently over your components for stable, sustained performance during extended gaming or workstation sessions. Out of the box, the Forge 321R ships with four pre-installed ARGB fans — three 120 mm units at the front and one 120 mm unit at the rear — all connected to an onboard ARGB control board. The front-panel LED Switch cycles through nine lighting effects, giving you instant control without needing software. The tempered glass side panel puts your build's lighting on full display. Cooling headroom is generous. The case supports up to eleven system fans across the front (3×120 mm or 2×140 mm), top (3×120 mm or 2×140 mm), rear (1×120 mm), side (2×120 mm), and PSU shroud (2×120 mm) positions. Radiator compatibility extends up to a 360 mm AIO in the top and up to 240 mm at the front, making it straightforward to install an all-in-one liquid cooler alongside your existing fans. Hardware clearances are practical for modern builds. GPUs up to 390 mm long and 150 mm tall fit comfortably, covering large triple-slot cards including current 40-series designs. CPU cooler height clearance reaches 160 mm, accommodating most high-performance tower air coolers. The ATX power supply bay accepts PSUs up to 200 mm in length (when the HDD tray is removed). Seven expansion slots provide room for multi-GPU or accessory cards. Front-panel connectivity includes a USB 3.2 Gen 2×2 Type-C port running at 20 Gbps, two USB 3.2 Gen 1 Type-A ports at 5 Gbps each, and a combined mic-in/audio-out jack. Storage options cover one dedicated 2.5-inch bay plus two combo 2.5-inch/3.5-inch bays. A magnetic dust filter sits above the top vents for easy removal and cleaning without tools. Verified Specifications: - Form Factor: Mid Tower - Motherboard Support: ATX / Micro-ATX / Mini-ITX - Dimensions (D×W×H): 472.5 × 210 × 498 mm (18.60 × 8.26 × 19.60 in) - Net Weight: 7.05 kg (15.54 lb) - Pre-installed Fans: 3× 120 mm ARGB (front) + 1× 120 mm ARGB (rear) - Max Fan Support: Up to 11 fans total - Radiator Support: Top up to 360 mm; Front up to 240 mm; Rear 120 mm - Max GPU Length: 390 mm | Max GPU Height: 150 mm - Max CPU Cooler Height: 160 mm - Max PSU Length: 200 mm (without HDD tray) - Front I/O: 1× USB 3.2 Gen 2×2 Type-C (20 Gbps), 2× USB 3.2 Gen 1 Type-A (5 Gbps), 1× Audio combo - Expansion Slots: 7 - Drive Bays: 1× 2.5", 2× 2.5"/3.5" combo - PSU Standard: ATX - Side Panel: Tempered Glass - Color: Black

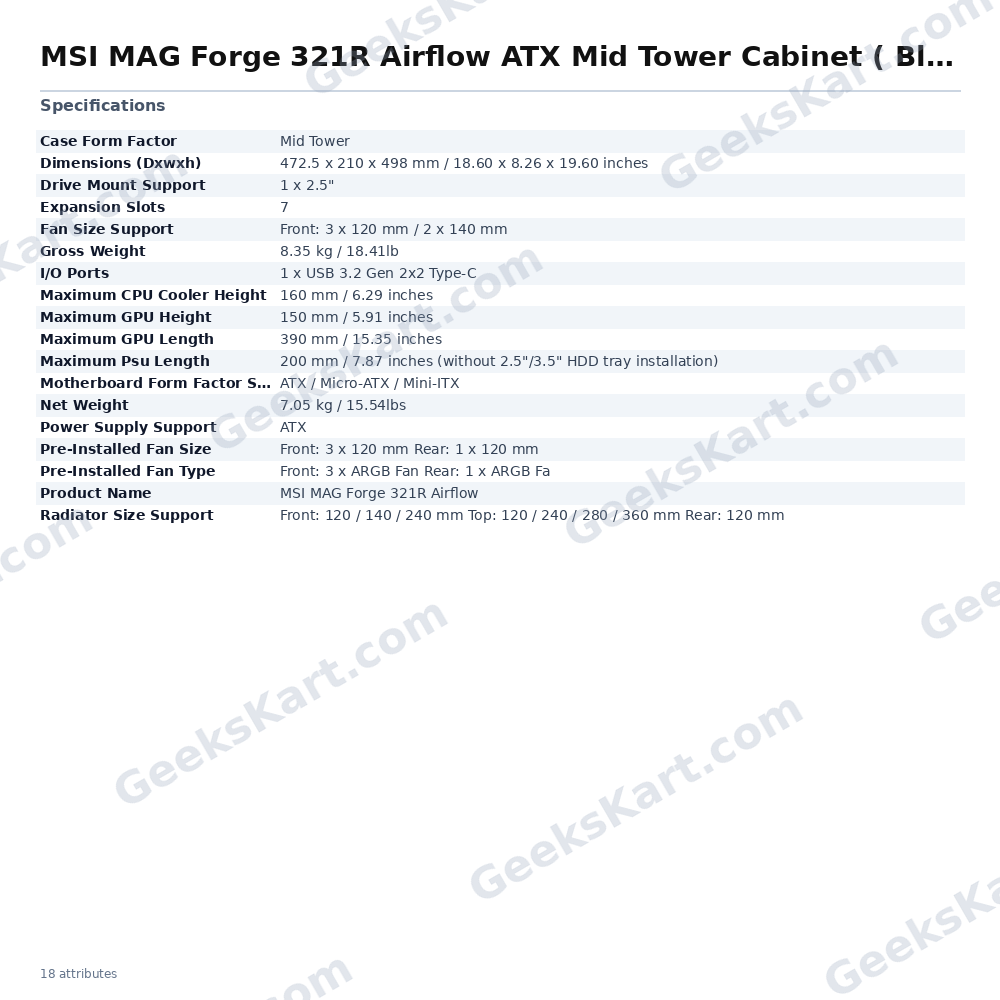

Datasheet
| I/O Ports | 1 x USB 3.2 Gen 2×2 Type-C |
|---|---|
| Net Weight | 7.05 kg / 15.54lbs |
| Gross Weight | 8.35 kg / 18.41lb |
| Product Name | MSI MAG Forge 321R Airflow |
| Expansion Slots | 7 |
| Case Form Factor | Mid Tower |
| Fan Size Support | Front: 3 x 120 mm / 2 x 140 mm |
| Dimensions (Dxwxh) | 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches |
| Maximum GPU Height | 150 mm / 5.91 inches |
| Maximum GPU Length | 390 mm / 15.35 inches |
| Maximum Psu Length | 200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation) |
| Drive Mount Support | 1 x 2.5" |
| Power Supply Support | ATX |
| Radiator Size Support | Front: 120 / 140 / 240 mm Top: 120 / 240 / 280 / 360 mm Rear: 120 mm |
| Pre-Installed Fan Size | Front: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-Installed Fan Type | Front: 3 x ARGB Fan Rear: 1 x ARGB Fa |
| Maximum CPU Cooler Height | 160 mm / 6.29 inches |
| Motherboard Form Factor Support | ATX / Micro-ATX / Mini-ITX |
