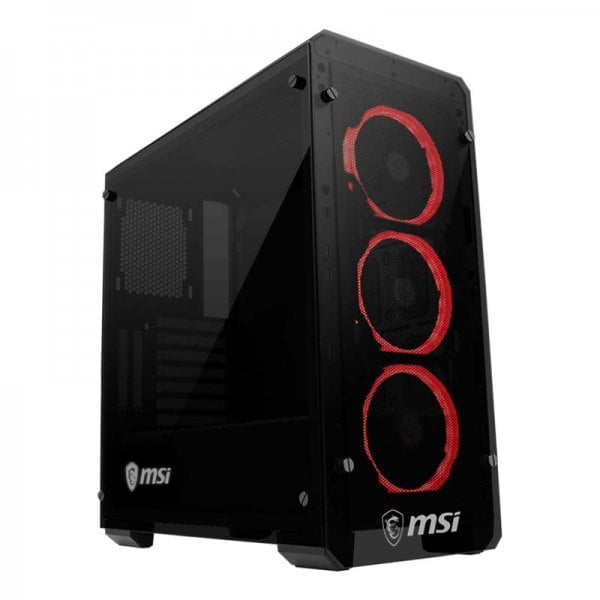

MSI MAG PYLON ATX Mid Tower Cabinet ( Black )
MPN MSI-MAPYLON-BLACK-CABINET · Brand MSI · ATX / mATX / Mini-ITX
Features of MSI MAG PYLON ATX Mid Tower Cabinet ( Black ) Dust is the enemy, we all know! So guard your MSI MAG PYLON Black with the magnetic dust filter on top and front of the case to block your enemy. It is super easy to remove and clean the washable dust filter as it is held by magnets. This cabinet has vertical slots for the gaming graphics card. MYSTIC LIGHT SYNC supported by 3x RGB fans is available too for quick synchronization of compatible devices. Examine the durability with a 4mm thi
Inclusive of GST · GST invoice available
Overview
Features of MSI MAG PYLON ATX Mid Tower Cabinet ( Black )
Dust is the enemy, we all know! So guard your MSI MAG PYLON Black with the magnetic dust filter on top and front of the case to block your enemy. It is super easy to remove and clean the washable dust filter as it is held by magnets. This cabinet has vertical slots for the gaming graphics card. MYSTIC LIGHT SYNC supported by 3x RGB fans is available too for quick synchronization of compatible devices. Examine the durability with a 4mm thick tempered glass design. The powerful MSI MAG PYLON ATX Cabinet has a warranty of one whole year!
- SERIES: GAMING SERIES
- TYPE: MID TOWER
- 3.5" BAY: S2
- 2.5" BAY: S6
- EXPANSION SLOT: S7
- MAX RADIATOR SUPPORT: 140 mm
- MAX FAN SUPPORT: 6
- COLOR: BLACK
- SIDE PANEL: TRANSPARENT
- MOTHERBOARD SUPPORT: ATX
EASY FOR CABLE MANAGEMENT
With 4x and 10x, you can easily to do the cable management and show the most clean way in the case.
FOR GREAT AIRFLOW
Up to 6x system fans could be installed in the MAG PYLON. Provides the whole system with ventilation for better stability.
MAGNETIC DUST FILTERS
Two sides, top and front, case magnetic dust filters design give user best experience when un-installing and cleaning.
VERTICAL GRAPHICS SUPPORT
Additional vertical slots and construction kit for user to show off your gaming graphics card in the vertical position.
MAGNETIC DUST FILTERS
Two sides, top and front, case magnetic dust filters design give user best experience when un-installing and cleaning.
MAGNETIC DUST FILTERS
Two sides, top and front, case magnetic dust filters design give user best experience when un-installing and cleaning.

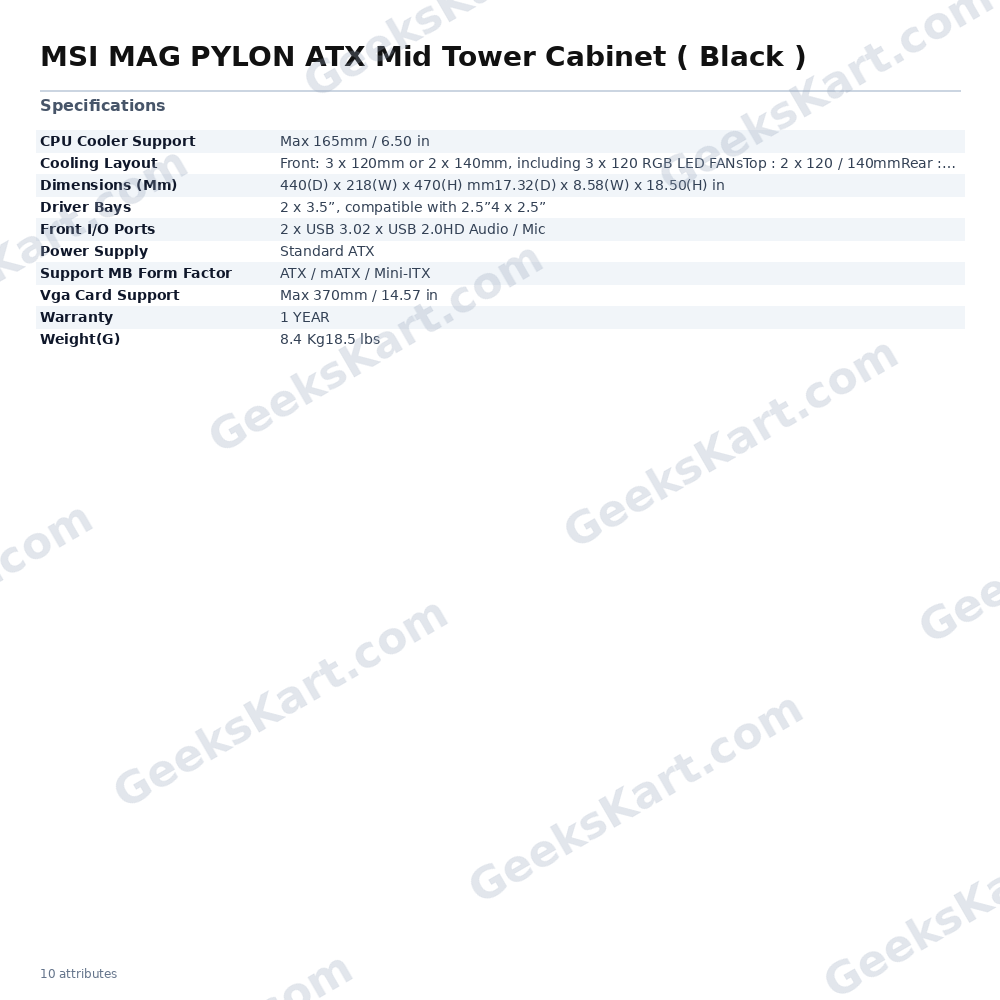

Specifications of MSI MAG PYLON ATX Mid Tower Cabinet ( Black )
| SUPPORT MB FORM FACTOR | ATX / mATX / Mini-ITX |
| DIMENSIONS (MM) | 440(D) x 218(W) x 470(H) mm 17.32(D) x 8.58(W) x 18.50(H) in |
| WEIGHT(G) | 8.4 Kg 18.5 lbs. |
| FRONT I/O PORTS | 2 x USB 3.0 2 x USB 2.0 HD Audio / Mic |
| DRIVER BAYS | 2 x 3.5”, compatible with 2.5” 4 x 2.5” |
| VGA CARD SUPPORT | Max 370mm / 14.57 in |
| CPU COOLER SUPPORT | Max 165mm / 6.50 in |
| COOLING LAYOUT | Front: 3 x 120mm or 2 x 140mm, including 3 x 120 RGB LED FANs Top: 2 x 120 / 140mm Rear: 1 x 120mm |
| POWER SUPPLY | Standard ATX |
| WARRANTY | 1 YEAR |
| Note | ***Features, Price and specifications are subject to change without notice. |
Datasheet
| Warranty | 1 Year |
|---|---|
| Weight(G) | 8.4 Kg18.5 lbs |
| Driver Bays | 2 x 3.5”, compatible with 2.5”4 x 2.5” |
| Power Supply | Standard ATX |
| Cooling Layout | Front: 3 x 120mm or 2 x 140mm, including 3 x 120 RGB LED FANsTop : 2 x 120 / 140mmRear : 1 x 120mm |
| Dimensions (Mm) | 440(D) x 218(W) x 470(H) mm17.32(D) x 8.58(W) x 18.50(H) in |
| Front I/O Ports | 2 x USB 3.02 x USB 2.0HD Audio / Mic |
| Vga Card Support | Max 370mm / 14.57 in |
| CPU Cooler Support | Max 165mm / 6.50 in |
| Support MB Form Factor | ATX / mATX / Mini-ITX |
