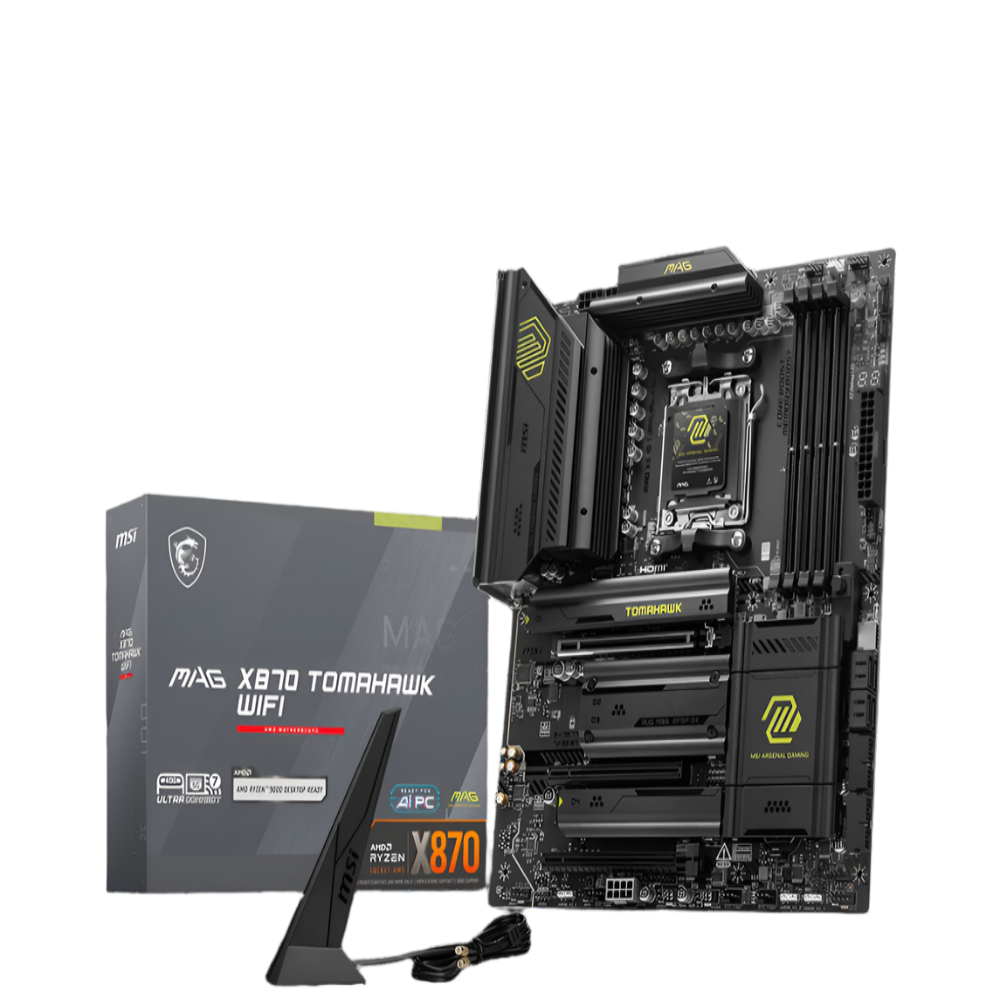

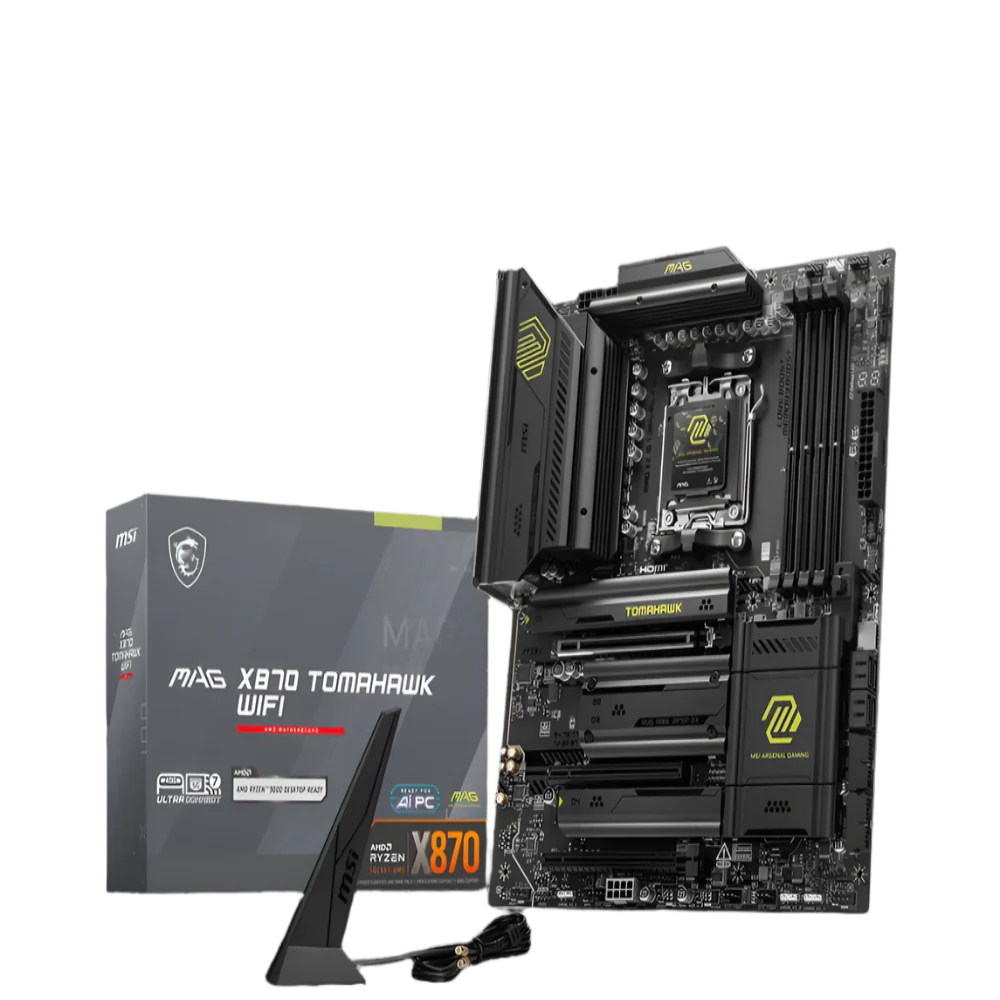

MSI MAG X870 Tomahawk Wifi DDR5 AMD Motherboard
MPN MSI-X870-TOMAHAWK · Brand MSI
The MSI MAG X870 Tomahawk WiFi is an ATX AM5 motherboard with AMD X870 chipset, PCIe 5.0, Wi-Fi 7, 5G LAN, and support for up to 256 GB DDR5-8400+ across four slots — built for AMD Ryzen 9000 series builds
Inclusive of GST · GST invoice available
Overview
The MSI MAG X870 Tomahawk WiFi is an ATX form-factor motherboard built on the AMD X870 chipset for Socket AM5, designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors. Its robust power delivery is anchored by a 14+2+1 Duet Rail Power System fed through dual 8-pin CPU power connectors, with an 8-layer PCB constructed from 2 oz thickened copper and server-grade materials to sustain demanding workloads and overclocking sessions. Memory headroom is generous: four DDR5 UDIMM slots accommodate up to 256 GB of non-ECC, unbuffered RAM. With JEDEC profiles starting at DDR5-4800 MT/s and AMD EXPO overclocking profiles reaching DDR5-8400+ MT/s (1DPC 1R configuration), builders have substantial tuning latitude. Dual-channel mode is supported across all populated configurations. Storage flexibility comes from four M.2 slots. M.2_1 and M.2_2 connect directly to the CPU and each support PCIe 5.0 x4 bandwidth, while M.2_3 and M.2_4 route through the chipset at PCIe 4.0 x2 and PCIe 4.0 x4 respectively. The primary PCIe x16 slot (PCI_E1) runs at PCIe 5.0 x16 for Ryzen 9000 and 7000 series CPUs. RAID 0, 1, and 10 are supported across M.2 NVMe devices. Connectivity is a clear strength. Wireless is handled by a pre-installed Wi-Fi 7 module (802.11 a/b/g/n/ac/ax/be) with MU-MIMO TX/RX support across 2.4 GHz, 5 GHz, and 6 GHz bands (up to 320 MHz channel width, up to 5.8 Gbps), plus Bluetooth 5.4 with MLO and 4K-QAM. Wired networking is provided by a Realtek 8126-CG 5G LAN controller. The rear panel delivers two USB 40 Gbps Type-C ports, two USB 10 Gbps Type-A, one USB 10 Gbps Type-C, three USB 5 Gbps Type-A, and four USB 2.0 ports, alongside HDMI 2.1 (up to 8K 60 Hz with compatible APU) and DisplayPort 1.4 via USB4 Type-C. Audio is managed by a Realtek ALC4080 codec delivering 7.1-channel USB audio with up to 32-bit/384 kHz front-panel playback and S/PDIF output. DIY-friendly features include EZ M.2 Shield Frozr II heatsinks with tool-free EZ M.2 Clip II retention, EZ PCIe Release, EZ Antenna installation, and a Flash BIOS button for recovery without a CPU installed. Debugging is aided by four EZ Debug LEDs and an EZ Digit Debug LED display. RGB customisation is available via three addressable V2 RGB headers and one standard RGB header. Verified Specifications: - Chipset: AMD X870 - Socket: AM5 - CPU Support: AMD Ryzen 9000 / 8000 / 7000 series desktop processors - Form Factor: ATX (304.8 mm x 243.84 mm) - Memory: 4x DDR5 UDIMM, max 256 GB, DDR5-4800 JEDEC to DDR5-8400+ MT/s (OC) - Storage: 4x M.2 (2x PCIe 5.0 x4 from CPU; 1x PCIe 4.0 x2 + 1x PCIe 4.0 x4 from chipset) - Primary PCIe Slot: PCIe 5.0 x16 (CPU, Ryzen 9000/7000) - LAN: Realtek 8126-CG 5G - Wi-Fi: Wi-Fi 7 (802.11be), up to 5.8 Gbps, 6 GHz / 320 MHz - Bluetooth: 5.4 - Audio: Realtek ALC4080, 7.1-channel, 32-bit/384 kHz - USB (Rear): 2x USB 40 Gbps Type-C, 1x USB 10 Gbps Type-C, 2x USB 10 Gbps Type-A, 3x USB 5 Gbps Type-A, 4x USB 2.0 - Display Output: 1x HDMI 2.1 (8K 60 Hz), 2x USB4 Type-C (DP 1.4, 4K 60 Hz) - Warranty: 3 years - OS Support: Windows 11 64-bit

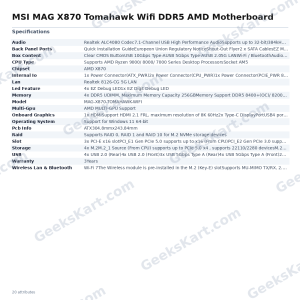

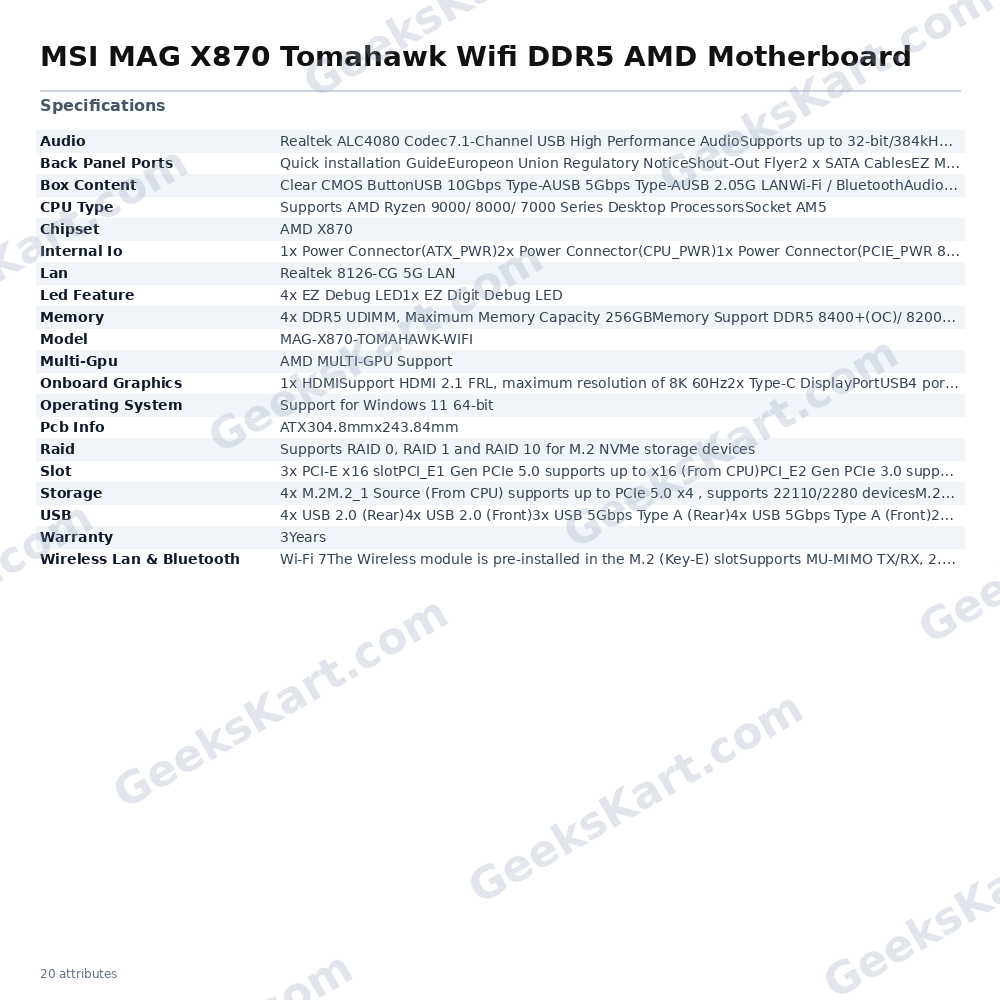

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD X870 |
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 |
| Lan | Realtek 8126-CG 5G LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)2x USB 40Gbps Type C (Rear) |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Slot | 3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slotSupports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot |
| Audio | Realtek ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-bit/384kHz playback on front panelSupports S/PDIF output |
| Model | MAG-X870-TOMAHAWK-WIFI |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency:1DPC 1R Max speed up to 8400+ MT/s1DPC 2R Max speed up to 6400+ MT/s2DPC 1R Max speed up to 6400+ MT/s2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode onlyCUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.The DIMM slots on this motherboard have double-sided latches.Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
| Storage | 4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesThe M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C portsPCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.Please refer to the manual for M.2 SSD heatsink restrictions |
| Pcb Info | ATX304.8mmx243.84mm |
| Multi-Gpu | AMD MULTI-GPU Support |
| Box Content | Clear CMOS ButtonUSB 10Gbps Type-AUSB 5Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMIUSB 40Gbps Type-CUSB 10Gbps Type-CUSB 10Gbps Type-A |
| Internal Io | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LEDconnector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C ports |
| Led Feature | 4x EZ Debug LED1x EZ Digit Debug LED |
| Back Panel Ports | Quick installation GuideEuropeon Union Regulatory NoticeShout-Out Flyer2 x SATA CablesEZ M.2 Clip llEZ M.2 Clip ll RemoverM.2 Plate ScrewUSB DriveCable stickerEZ Wi-Fi Antenna1 to 3EZ Conn-Cable (V2)EZ Front Panel Cable |
| Operating System | Support for Windows 11 64-bit |
| Onboard Graphics | 1x HDMISupport HDMI 2.1 FRL, maximum resolution of 8K 60Hz2x Type-C DisplayPortUSB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60HzAvailable only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless Lan & Bluetooth | Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
