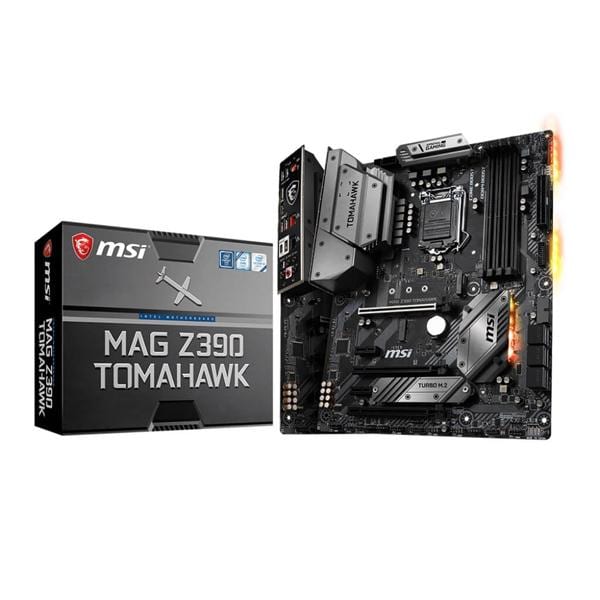

MSI MAG Z390 Tomahawk Wifi DDR4 Intel Motherboard
MPN MSI-MAG-Z390-TOMAHAWK · Brand MSI
MSI MAG Z390 Tomahawk WiFi DDR4 is an ATX motherboard for Intel 8th/9th Gen LGA 1151 CPUs, featuring dual Intel Gigabit LAN, Twin Turbo M.2 with Shield Frozr, up to 128 GB DDR4 at 4400 MHz (OC), and USB 3.1 Gen2 connectivity
Inclusive of GST · GST invoice available
Overview
The MSI MAG Z390 Tomahawk WiFi DDR4 is an ATX-form-factor motherboard built on the Intel Z390 chipset, designed to support 8th and 9th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA 1151 socket. Its extended heatsink design and M.2 Shield Frozr thermal cover work together to keep critical components cool under sustained workloads, while the pre-installed I/O shielding simplifies case installation. For storage enthusiasts, the board offers two Key-M M.2 slots — M2_1 supporting 2242, 2260, 2280, and 22110 form factors, and M2_2 supporting 2242, 2260, and 2280 — both capable of PCIe 3.0 x4 and SATA 6 Gb/s speeds. Six additional SATA 6 Gb/s ports round out the storage options, and Intel Optane Memory is supported. RAID configurations 0, 1, 5, and 10 are available for SATA devices, while RAID 0 and 1 are available for M.2 PCIe devices. Networking is a standout feature: dual Intel Gigabit LAN controllers — the I219-V and I211- provide simultaneous wired connectivity for both intranet and internet traffic. An Intel CNVi-ready Key-E M.2 slot accepts compatible wireless modules. Memory support spans four DDR4 DIMM slots capable of up to 128 GB total, operating in dual-channel mode with speeds from 2133 MHz up to 4400 MHz (OC), including Intel XMP profiles. Non-ECC, unbuffered memory is required. Expansion slots include three PCIe 3.0 x16 slots (supporting x16/x4/x1 modes) and two PCIe 3.0 x1 slots, with 2-Way AMD CrossFire multi-GPU support. USB connectivity is comprehensive: four USB 3.1 Gen2 ports (one Type-C and three Type-A on the rear panel), four USB 3.1 Gen1 ports via internal headers, and six USB 2.0 ports split between the rear panel and internal connectors. Onboard audio is handled by a Realtek ALC892 codec delivering 7.1-channel High Definition Audio with optical S/PDIF output. RGB enthusiasts will appreciate MSI MYSTIC LIGHT support with two 4-pin RGB headers and one 3-pin RAINBOW LED header, enabling 16.8 million colour combinations across 29 lighting effects. Verified Specifications: - Chipset: Intel Z390 - Socket: LGA 1151 - Form Factor: ATX, 9.6 in. x 12 in. (24.3 cm x 30.4 cm) - Memory: 4 x DDR4 DIMM, max 128 GB, up to 4400 MHz (OC), Dual-Channel, XMP supported - Storage: 6 x SATA 6 Gb/s, 2 x M.2 Key-M (PCIe 3.0 x4 / SATA) - Expansion: 3 x PCIe 3.0 x16, 2 x PCIe 3.0 x1 - LAN: Dual Intel Gigabit (I219-V + I211-AT) - USB: 4 x USB 3.1 Gen2, 4 x USB 3.1 Gen1, 6 x USB 2.0 - Audio: Realtek ALC892, 7.1-channel HD Audio, S/PDIF output - Display: HDMI 1.4 (4096x2160@24Hz), DisplayPort 1.2 (4096x2304@60Hz) - Warranty: 3 Years - OS Support: Windows 10 64-bit

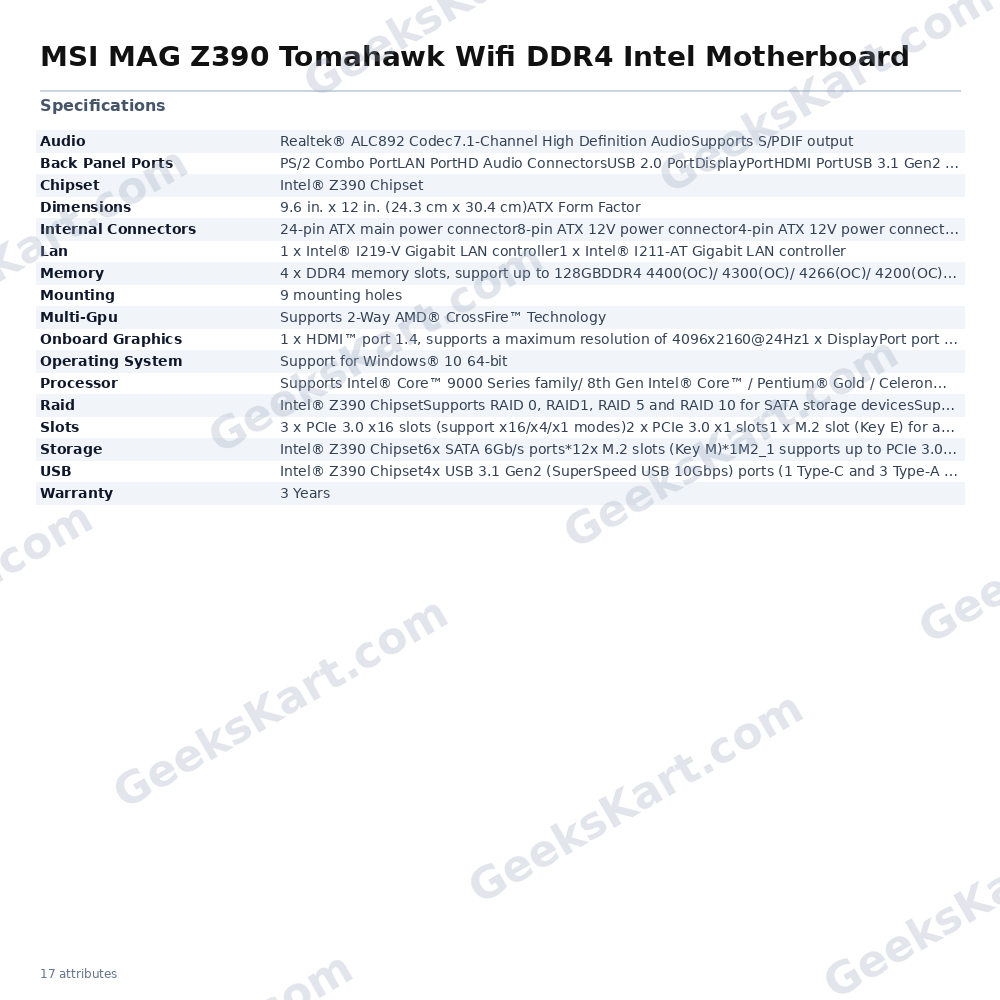

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® Z390 Chipset |
| Lan | 1 x Intel® I219-V Gigabit LAN controller1 x Intel® I211-AT Gigabit LAN controller |
| USB | Intel® Z390 Chipset4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
| Raid | Intel® Z390 ChipsetSupports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| Audio | Realtek® ALC892 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Slots | 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)2 x PCIe 3.0 x1 slots1 x M.2 slot (Key E) for an Intel® CNVi wireless module only |
| Memory | 4 x DDR4 memory slots, support up to 128GBDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*Dual-Channel modenon-ECC, un-buffered memoryIntel® Extreme Memory Profile (XMP) |
| Storage | Intel® Z390 Chipset6x SATA 6Gb/s ports*12x M.2 slots (Key M)*1M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devicesM2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devicesIntel® Optane™ Memory ReadyM.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website |
| Mounting | 9 mounting holes |
| Multi-Gpu | Supports 2-Way AMD® CrossFire™ Technology |
| Processor | Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Dimensions | 9.6 in. x 12 in. (24.3 cm x 30.4 cm)ATX Form Factor |
| Back Panel Ports | PS/2 Combo PortLAN PortHD Audio ConnectorsUSB 2.0 PortDisplayPortHDMI PortUSB 3.1 Gen2 Type AUSB 3.1 Gen2 Type A COptical S/PDIF OUT |
| Onboard Graphics | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz*No Display support when using the Processor model with suffix “F” |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 24-pin ATX main power connector8-pin ATX 12V power connector4-pin ATX 12V power connector6 x SATA 6Gb/s connectors2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1 x 4-pin CPU fan connector1 x 4-pin Water Pump connector5 x 4-pin system fan connectors1 x Serial port connector1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector1 x TPM module connector2 x 4-pin RGB LED connectors1 x 3-pin RAINBOW LED connector |
