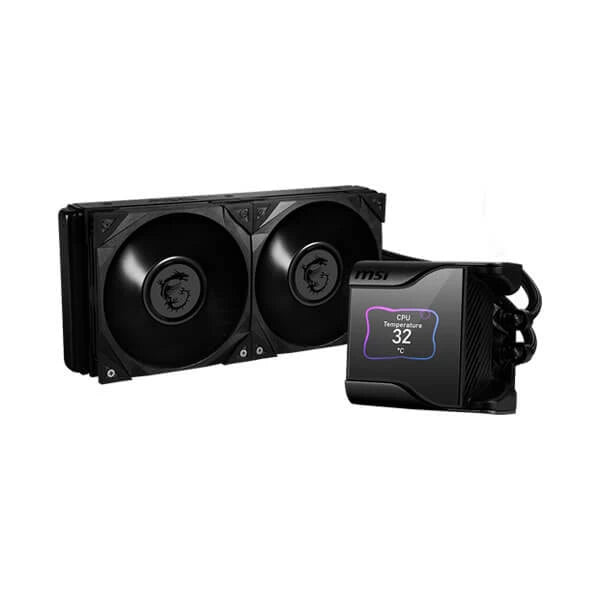

MSI MEG CoreLiquid S280 ARGB 280mm CPU Liquid Cooler (Black)
MPN MSI-MEG-CORELIQUID-S280-ARGB · Brand MSI
Features of MSI MEG CoreLiquid S280 ARGB 280mm CPU Liquid Cooler (Black) MSI’S MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels. A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components. The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures. The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying
Inclusive of GST · GST invoice available
Overview
Features of MSI MEG CoreLiquid S280 ARGB 280mm CPU Liquid Cooler (Black)
- MSI’S MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.
- A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
- The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
- The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
- The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.
Next-Gen AMD Socket AM5 SUPPORT
AMD Socket AM5 (LGA 1718) is the next-generation socket designed to support next-generation AMD Ryzen™ 7000 desktop processors (Zen 4). AMD Socket AM5 uses the same liquid cooler bracket as Socket AM4. This allows you to upgrade to and enjoy AM5 without buying a new liquid cooler.
MEG SILENT GALE P14
The MEG SILENT GALE P14 is MSI’s innovative silent fan designed to generate the most silent airflow.
Concentrated Cooling Performance
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
FAN 0 RPM
The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
2.4” CUSTOMIZABLE IPS DISPLAY
The MSI MEG CoreLiquid S280 ARGB comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
TOTAL CONTROL IN YOUR HANDS
Everything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.
LGA 1700 Compatible
The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

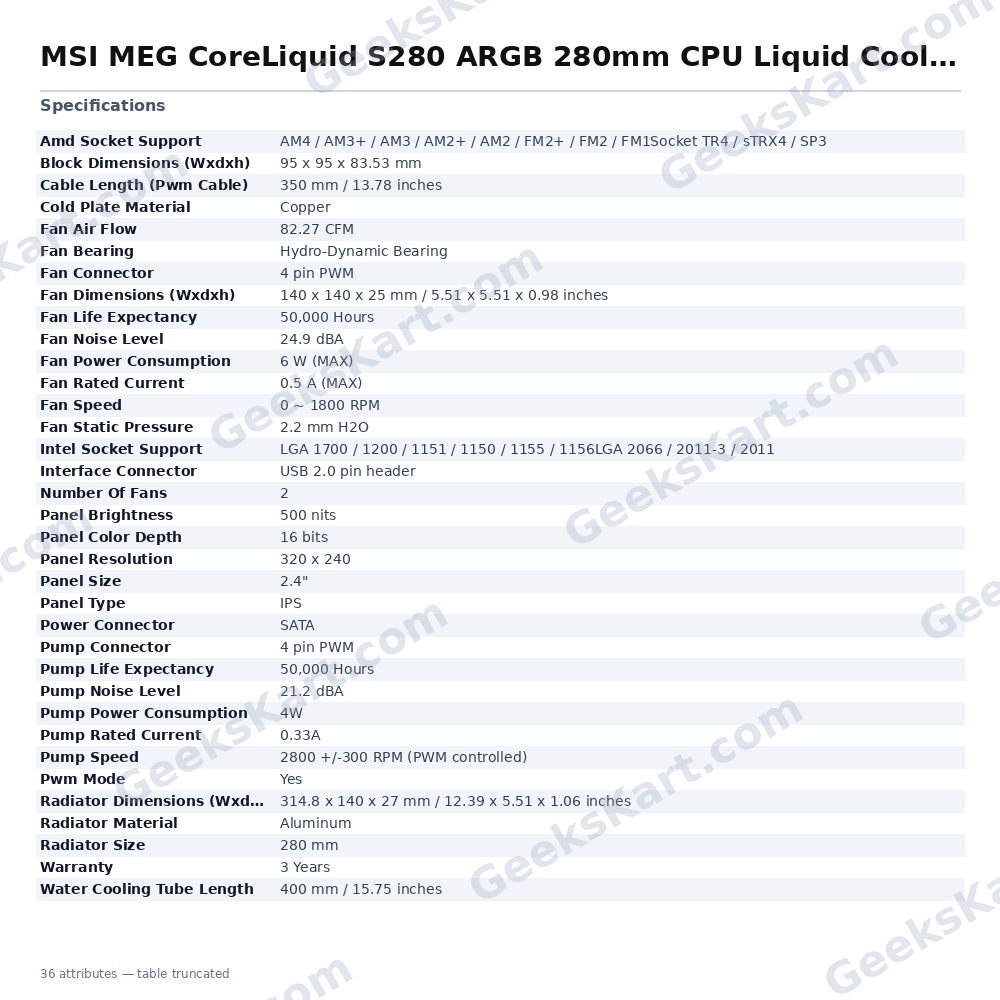

Specifications of MSI MEG CoreLiquid S280 ARGB 280mm CPU Liquid Cooler (Black)
| Radiator Size | 280 mm |
| Radiator Dimensions (WxDxH) | 314.8 x 140 x 27 mm / 12.39 x 5.51 x 1.06 inches |
| Radiator Material | Aluminum |
| Water Cooling Tube Material | Black Rubber + Mesh |
| Water Cooling Tube Length | 400 mm / 15.75 inches |
| Number of Fans | 2 |
| Fan Dimensions (WxDxH) | 140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 inches |
| Fan Speed | 0 ~ 1800 RPM |
| Fan Air Flow | 82.27 CFM |
| Fan Noise Level | 24.9 dBA |
| Fan Static Pressure | 2.2 mm H2O |
| Fan Bearing | Hydro-Dynamic Bearing |
| Fan Life Expectancy | 50,000 Hours |
| Fan Rated Current | 0.5 A (MAX) |
| Fan Power Consumption | 6 W (MAX) |
| PWM Mode | Yes |
| Cable Length (PWM Cable) | 350 mm / 13.78 inches |
| Fan Connector | 4 pin PWM |
| Pump Life Expectancy | 50,000 Hours |
| Pump Noise Level | 21.2 dBA |
| Pump Rated Current | 0.33A |
| Pump Power Consumption | 4W |
| Pump Speed | 2800 +/-300 RPM (PWM controlled) |
| Pump Connector | 4 pin PWM |
| Cold Plate Material | Copper |
| Block Dimensions (WxDxH) | 95 x 95 x 83.53 mm |
| Intel Socket Support | LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 LGA 2066 / 2011-3 / 2011 |
| AMD Socket Support | AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 Socket TR4 / sTRX4 / SP3 |
| Panel Size | 2.4" |
| Panel Type | IPS |
| Panel Resolution | 320 x 240 |
| Panel Color Depth | 16 bits |
| Panel Brightness | 500 nits |
| Interface Connector | USB 2.0 pin header |
| Power Connector | SATA |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Warranty | 3 Years |
|---|---|
| Panel Type | IPS |
| Pwm Mode | Yes |
| Fan Speed | 0 ~ 1800 RPM |
| Panel Size | 2.4" |
| Pump Speed | 2800 +/-300 RPM (PWM controlled) |
| Fan Bearing | Hydro-Dynamic Bearing |
| Fan Air Flow | 82.27 CFM |
| Fan Connector | 4 pin PWM |
| Radiator Size | 280 mm |
| Number Of Fans | 2 |
| Pump Connector | 4 pin PWM |
| Fan Noise Level | 24.9 dBA |
| Power Connector | SATA |
| Panel Brightness | 500 nits |
| Panel Resolution | 320 x 240 |
| Pump Noise Level | 21.2 dBA |
| Fan Rated Current | 0.5 A (MAX) |
| Panel Color Depth | 16 bits |
| Radiator Material | Aluminum |
| Amd Socket Support | AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1Socket TR4 / sTRX4 / SP3 |
| Pump Rated Current | 0.33A |
| Cold Plate Material | Copper |
| Fan Life Expectancy | 50,000 Hours |
| Fan Static Pressure | 2.2 mm H2O |
| Interface Connector | USB 2.0 pin header |
| Intel Socket Support | LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156LGA 2066 / 2011-3 / 2011 |
| Pump Life Expectancy | 50,000 Hours |
| Fan Power Consumption | 6 W (MAX) |
| Fan Dimensions (Wxdxh) | 140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 inches |
| Pump Power Consumption | 4W |
| Block Dimensions (Wxdxh) | 95 x 95 x 83.53 mm |
| Cable Length (Pwm Cable) | 350 mm / 13.78 inches |
| Water Cooling Tube Length | 400 mm / 15.75 inches |
| Radiator Dimensions (Wxdxh) | 314.8 x 140 x 27 mm / 12.39 x 5.51 x 1.06 inches |
| Water Cooling Tube Material | Black Rubber + Mesh |
