MSI MEG X299 Creation Wifi DDR4 Intel Motherboard

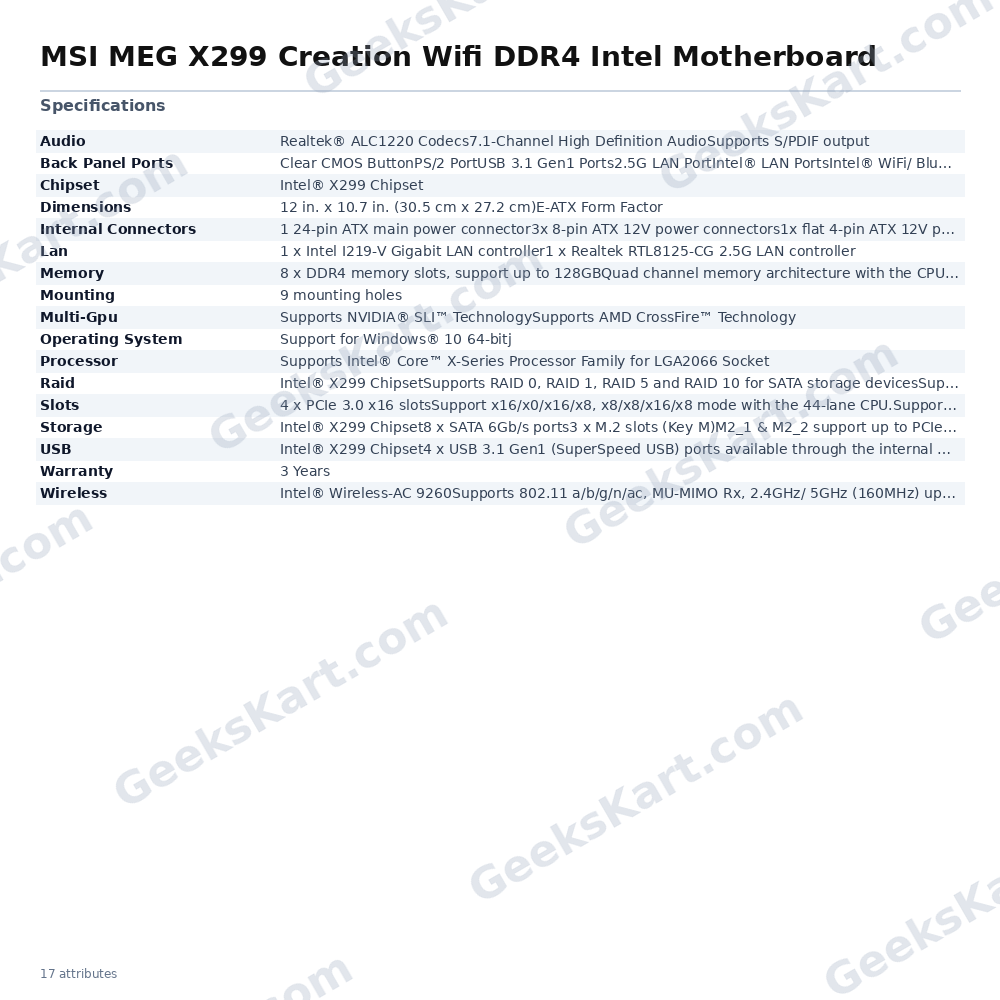

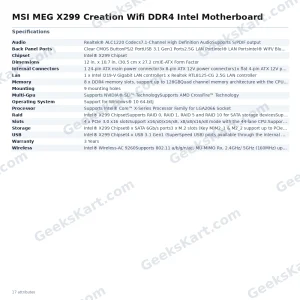

The MSI MEG X299 Creation WiFi DDR4 is a high-end E-ATX motherboard built on the Intel X299 chipset, designed for Intel Core X-Series processors in the LGA2066 socket. It targets demanding content creators, 3D artists, and workstation builders who need maximum memory bandwidth, extensive storage options, and reliable multi-core CPU support. Memory capacity is a standout strength. Eight DDR4 DIMM slots support up to 128 GB of RAM in a quad-channel configuration, with overclocked frequencies reaching DDR4-4200 (OC) on compatible processors. XMP profile support is included for straightforward memory tuning. Storage connectivity is equally broad. Three onboard M.2 Key-M slots handle both PCIe 3.0 x4 NVMe and SATA 6 Gb/s drives, with M2_1 and M2_2 also compatible with Intel Optane Memory modules. A dedicated U.2 port adds PCIe 3.0 x4 NVMe support, while eight SATA 6 Gb/s ports round out the storage array. RAID 0, 1, 5, and 10 are available for SATA devices; RAID 0 and 1 for M.2 PCIe drives. Networking combines a Realtek RTL8125-CG 2.5G LAN controller, an Intel I219-V Gigabit LAN controller, and an Intel Wireless-AC 9260 module supporting 802.11 a/b/g/n/ac with MU-MIMO Rx, dual-band 2.4 GHz/5 GHz (160 MHz) up to 1.73 Gbps, and Bluetooth 5. Expansion is provided by four PCIe 3.0 x16 slots and one PCIe 3.0 x1 slot. Multi-GPU configurations are supported via NVIDIA SLI and AMD CrossFire technologies. USB connectivity includes three USB 3.1 Gen2 (10 Gbps) ports via ASMedia ASM3142 (one Type-C and one Type-A on the back panel, one Type-C internal), six USB 3.1 Gen1 ports on the back panel via ASMedia ASM1074, plus additional Gen1 and USB 2.0 headers internally. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel HD Audio with S/PDIF optical output. Cooling management includes eight PWM fan headers and one dedicated thermal sensor header. Power delivery uses triple 8-pin ATX 12V connectors alongside the standard 24-pin ATX connector, supporting demanding multi-core workloads. Mystic Light RGB control provides 16.8 million colours across 29 effects with support for both RGB and addressable LED strips. Verifiable Specifications: - Form Factor: E-ATX, 12 in. x 10.7 in. (30.5 cm x 27.2 cm) - Socket: LGA2066 - Chipset: Intel X299 - Memory: 8x DDR4 DIMM, up to 128 GB, DDR4-4200 (OC) quad-channel - Storage: 3x M.2 (PCIe 3.0 x4 / SATA), 8x SATA 6 Gb/s, 1x U.2 (PCIe 3.0 x4) - PCIe Slots: 4x PCIe 3.0 x16, 1x PCIe 3.0 x1 - LAN: Intel I219-V 1G + Realtek RTL8125-CG 2.5G - Wireless: Intel AC 9260, 802.11ac, BT 5 - Audio: Realtek ALC1220, 7.1-CH HD Audio, S/PDIF out - USB: 3x USB 3.1 Gen2 (10 Gbps), 10x USB 3.1 Gen1, 6x USB 2.0 - Fan Headers: 8x PWM + 1x thermal sensor - Warranty: 3 Years
