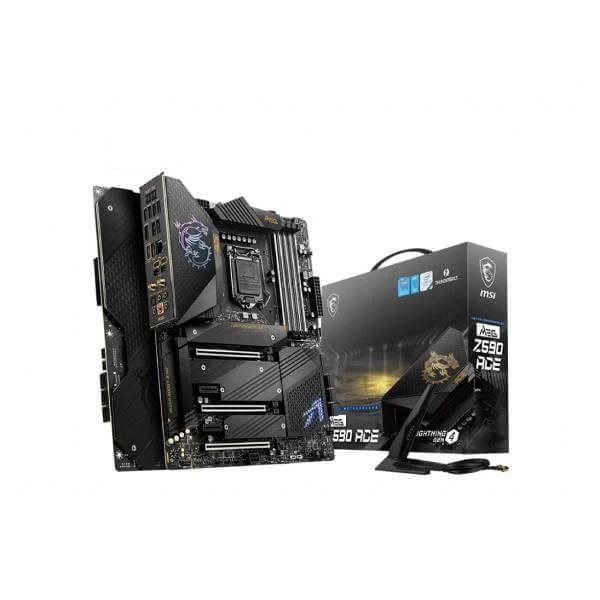

MSI MEG Z590 ACE Wifi Gaming DDR4 Intel Motherboard

The MSI MEG Z590 ACE is a full-size ATX motherboard built on the Intel Z590 chipset, designed for 11th Gen and 10th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1200 socket — up to Core i9. It pairs an aggressive power delivery system with a comprehensive connectivity suite to serve demanding gaming and content-creation workloads. Power and stability come from a 16+2+1 digital power phase design, driven by an INTERSIL digital PWM controller. Each phase uses 90A Smart Power Stages, and the board ships with dual 8-pin CPU power connectors arranged in an exclusive Mirrored Power Arrangement to distribute load evenly. Cooling support for the VRM includes an aluminum cover, connecting heat pipe, and 7 W/mK thermal pads. The PCB itself is an 8-layer design with 2 oz thickened copper, improving both heat dissipation and long-term reliability. For storage, four M.2 slots are onboard — one of which is PCIe Gen 4 — and all are covered by MSI's M.2 Shield Frozr heatsinks to prevent thermal throttling. Six SATA III ports add further flexibility, with RAID 0/1/5/10 supported. Connectivity is a standout feature. Dual Thunderbolt 4 ports (USB Type-C) deliver up to 40 Gb/s each, support 8K display output, daisy-chaining, and charging up to 5 V/3 A (15 W). Wireless networking is handled by an Intel Wi-Fi 6E AX210 module, covering the 6 GHz spectrum alongside 5 GHz and 2.4 GHz bands, complemented by a wired Intel I225-V 2.5G LAN controller. An HDMI 1.x output is available for integrated graphics. Audio is powered by the Realtek ALC4082 codec combined with an ESS SABRE9018Q2C DAC/amplifier combo, with rear outputs including five analogue jacks and an optical S/PDIF port. Expansion slots include two PCIe 4.0/3.0 x16 slots with Steel Armor reinforcement, one PCIe 3.0 x16 slot (CrossFire supported), and two PCIe 3.0 x1 slots. Both SLI and CrossFire multi-GPU configurations are supported. Verified Specifications: - Form Factor: ATX - Socket: LGA 1200 - Chipset: Intel Z590 - Supported CPUs: 10th & 11th Gen Intel Core (up to i9), Pentium Gold, Celeron - Memory: 4x DIMM, Dual-channel DDR4, max 128 GB; speeds up to 5600 MHz (OC), JEDEC up to 2933 MHz - Storage: 4x M.2 (1x PCIe Gen 4), 6x SATA III, RAID 0/1/5/10 - PCIe: 2x PCIe 4.0/3.0 x16 (Steel Armor), 1x PCIe 3.0 x16, 2x PCIe 3.0 x1 - Networking: Intel I225-V 2.5G LAN; Intel Wi-Fi 6E AX210 - Thunderbolt 4: 2x USB Type-C (40 Gb/s), 2x Mini DisplayPort input, 8K display support - USB (Rear): 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0 - USB (Front headers): 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 - Audio: Realtek ALC4082 + ESS SABRE9018Q2C DAC; 5+ rear audio jacks + optical S/PDIF - Display: 1x HDMI - DirectX: 12 - OS: Windows 10 64-bit
