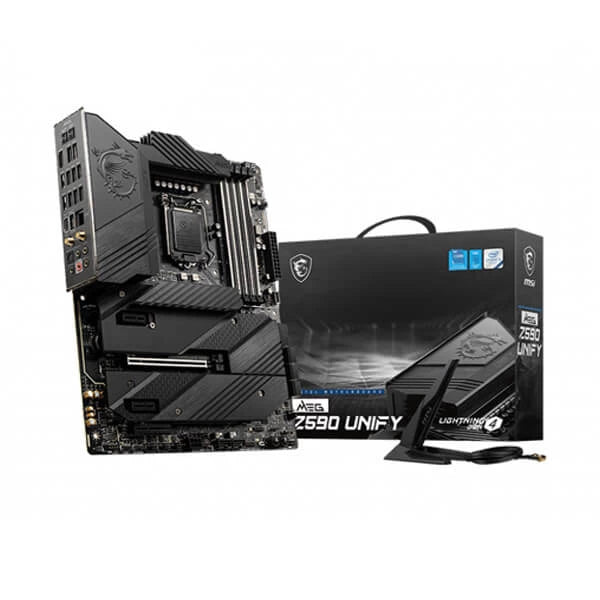

MSI MEG Z590 Unify Gaming DDR4 Intel Motherboard

The MSI MEG Z590 Unify is a full-size ATX motherboard built on the Intel Z590 chipset, designed for use with 11th and 10th Generation Intel Core, Pentium, and Celeron processors in the LGA 1200 socket. It supports DDR4 memory across four DIMM slots, with XMP and overclocking profiles reaching up to 5600 MHz. At the heart of its power delivery is a 16+2+1 phase design using an INTERSIL digital PWM controller, 90A Smart Power Stage modules, and dual CPU power connectors arranged in an exclusive Mirrored Power Arrangement. This layout is intended to provide stable, consistent power to the processor under sustained workloads. Storage connectivity is a standout feature: the board includes four M.2 connectors, three of which support Lightning Gen 4 (PCIe 4.0) at up to 64 Gb/s transfer speeds when paired with an 11th Gen Intel processor. An M.2 Shield Frozr heatsink covers each slot to help control thermal throttling. The MEG Z590 Unify includes two Thunderbolt 4 ports delivering 40 Gb/s bandwidth per port, with support for 8K display output, daisy-chaining, and Multi-Port Accessory Architecture. Networking is handled by onboard 2.5G LAN alongside the latest Wi-Fi 6E solution, which adds support for the 6 GHz spectrum for reduced interference in congested environments. USB connectivity includes a USB 3.2 Gen 2x2 port offering 20 Gbps throughput. Audio is managed by the ALC4080 codec under MSI's Audio Boost 5 platform, with physical layer isolation from the rest of the PCB. A multi-function Smart Button on the board provides hardware-level access to Safe Boot, Reset, Turbo Fan, and EZ LED controls. The PCB is an 8-layer design using 2oz thickened copper traces for signal integrity and longevity. Thermal management across the VRM is handled by a combination of Frozr Heatsink, VRM heat-pipe, Aluminum Cover, MOSFET Baseplate, and 7W/mK thermal pads. Verified Specifications: - Form Factor: ATX - Socket: LGA 1200 - Compatible CPUs: Intel 11th and 10th Gen Core, Pentium, Celeron - Memory: DDR4, 4 x DIMM, up to 5600 MHz (OC) - M.2 Slots: 4 (3x Lightning Gen 4, PCIe 4.0) - Thunderbolt: Dual Thunderbolt 4 USB-C (40 Gb/s each) - LAN: 2.5 Gbps - Wireless: Wi-Fi 6E (6 GHz capable) - USB: USB 3.2 Gen 2x2 (20 Gbps) - Audio: ALC4080, Audio Boost 5 - Power Phases: 16+2+1 with 90A SPS - PCB: 8-layer, 2oz copper - Dimensions: 30.48 x 24.38 cm - Weight: 2.82 kg - Model Year: 2021
