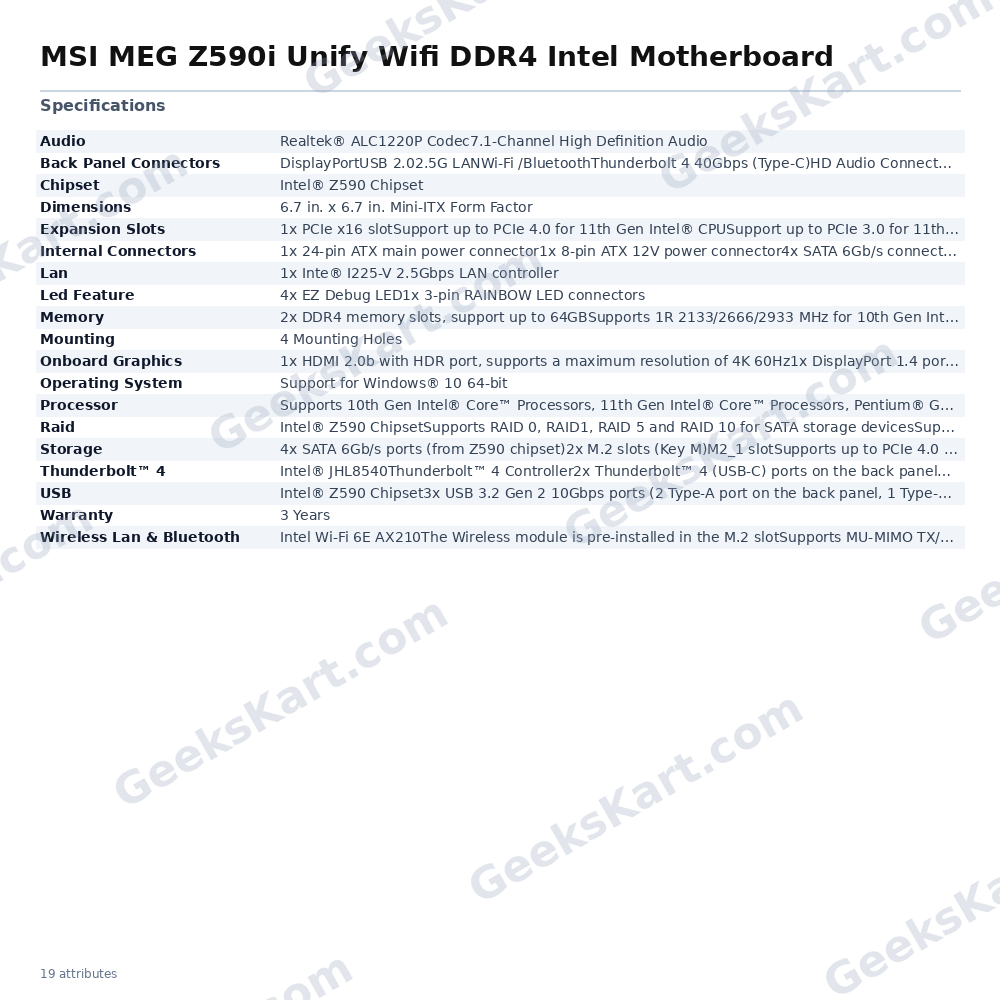

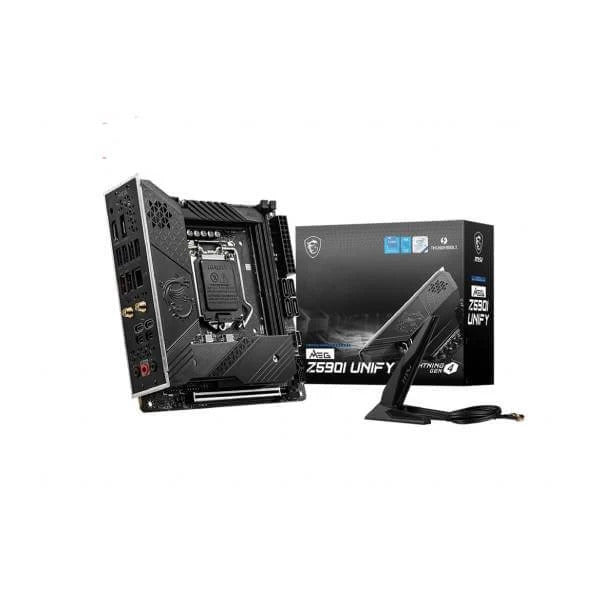

MSI MEG Z590i Unify Wifi DDR4 Intel Motherboard

The MSI MEG Z590i Unify is a premium Mini-ITX motherboard built around the Intel Z590 chipset, designed to support 10th and 11th Gen Intel Core, Pentium Gold, and Celeron processors in the LGA 1200 socket. Despite its compact 6.7 x 6.7 inch footprint, this board packs a feature set typically reserved for full-size enthusiast platforms, making it an ideal foundation for a high-performance small-form-factor build. For memory, the Z590i Unify provides two DDR4 slots supporting up to 64 GB total capacity. With 11th Gen Intel processors, JEDEC-rated speeds reach up to 3200 MHz, while Intel XMP overclocking profiles can push frequencies up to 5600 MHz (1DPC 1R) or 4800+ MHz (1DPC 2R). Dual-channel operation is supported across both slots. Storage options are generous for an ITX board. Two M.2 Key-M slots accommodate 2280 drives: the primary M2_1 slot leverages CPU lanes for PCIe 4.0 x4 throughput when paired with an 11th Gen processor, while the M2_2 slot runs PCIe 3.0 x4 from the Z590 chipset. Four SATA 6 Gb/s ports round out the onboard storage, and RAID 0, 1, 5, and 10 are supported for SATA devices, with RAID 0 and 1 available for M.2 NVMe drives. Connectivity is a standout feature. Two Thunderbolt 4 USB-C ports on the rear panel — powered by the Intel JHL8540 controller — deliver up to 40 Gbps with Thunderbolt devices, 20 Gbps with USB4, and 10 Gbps with USB 3.2, while each port supports daisy-chaining of up to three Thunderbolt 4 devices. Wired networking is handled by an Intel I225-V 2.5 Gbps LAN controller. Wireless connectivity comes via the Intel Wi-Fi 6E AX210 module (pre-installed in the M.2 Key-E slot), supporting 802.11ax across 2.4 GHz, 5 GHz, and 6 GHz bands with MU-MIMO and up to 2.4 Gbps throughput, alongside Bluetooth 5.2. The rear I/O panel also includes HDMI 2.0b (4K/60Hz with HDR), DisplayPort 1.4 (4K/60Hz), two USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 Type-A ports, two USB 2.0 Type-A ports, and a Mini DisplayPort input for Thunderbolt 4 display passthrough. Audio is driven by a Realtek ALC1220P codec delivering 7.1-channel HD audio, with isolated audio circuit layers and dedicated capacitors for cleaner channel separation. The power delivery system uses an INTERSIL digital PWM with 8 direct phases, each featuring 90A Smart Power Stage components, backed by Titanium Choke III inductors. Thermal management is addressed through a Frozr Heatsink, VRM heat pipe, aluminium cover, and M.2 Shield Frozr. The PCB is a 10-layer design with 2 oz thickened copper for improved signal integrity and long-term stability. The board ships with a pre-installed I/O shield and carries a 3-year manufacturer warranty. Verifiable Specifications: - Form Factor: Mini-ITX (6.7 x 6.7 in / 170 x 170 mm) - Socket: LGA 1200 | Chipset: Intel Z590 - CPU Support: 10th and 11th Gen Intel Core, Pentium Gold, Celeron - Memory: 2x DDR4, up to 64 GB, up to 5600 MHz OC (XMP) - Storage: 2x M.2 (PCIe 4.0 x4 + PCIe 3.0 x4), 4x SATA 6 Gb/s - Expansion: 1x PCIe x16 (PCIe 4.0 with 11th Gen / PCIe 3.0 with 10th Gen) - Thunderbolt: 2x Thunderbolt 4 (USB-C), Intel JHL8540, 40 Gbps - Wireless: Intel Wi-Fi 6E AX210 (2.4/5/6 GHz, up to 2.4 Gbps), BT 5.2 - LAN: Intel I225-V 2.5 Gbps - Audio: Realtek ALC1220P, 7.1-channel HD - Display Out: HDMI 2.0b (4K/60Hz HDR), DisplayPort 1.4 (4K/60Hz) - USB (Rear): 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, 2x USB 2.0 - OS Support: Windows 10 64-bit - Warranty: 3 Years
