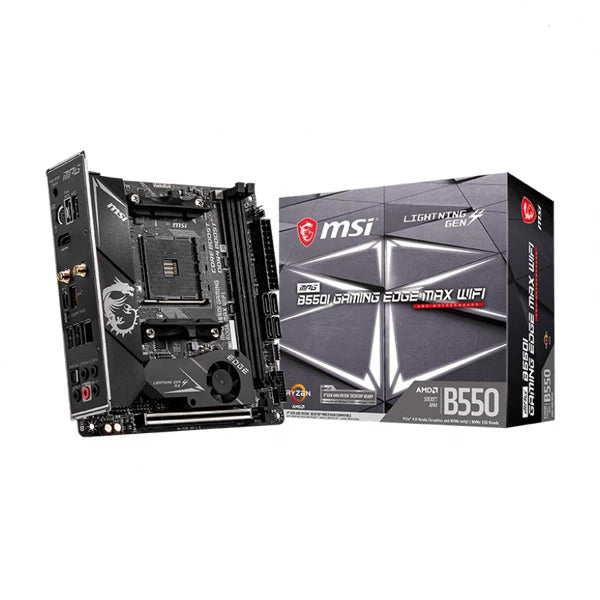

MSI MPG B550I Gaming Edge Max Wifi DDR4 AMD Motherboard
MPN MSI-B550I-GAMING-EDGE-MAX-WIFI · Brand MSI
The MSI MPG B550I Gaming Edge Max WiFi is a Mini-ITX AMD B550 motherboard supporting Ryzen 5000 processors, PCIe 4.0, Wi-Fi 6 (Intel AX200), 2.5G LAN, dual M.2, and DDR4 up to 4600 MHz — all in a 17 cm × 17 cm form factor
Inclusive of GST · GST invoice available
Overview
The MSI MPG B550I Gaming Edge Max WiFi is a Mini-ITX form factor motherboard built on the AMD B550 chipset, designed for AMD Ryzen 5000 and 3000 Series desktop processors as well as AMD Ryzen 4000 G-Series APUs (note: not compatible with Ryzen 5 3400G or Ryzen 3 3200G). Despite its compact 17.0 cm × 17.0 cm footprint, it packs flagship-tier connectivity and power delivery into every layer. The board features an 8+2+1 digital power design using Dr.MOS 60A power stages, paired with an extended PWM heatsink and an 8-layer PCB with 2 oz thickened copper. This thermal architecture is engineered to sustain high-core-count Ryzen processors at full operating speeds under extended load. The M.2 Shield Frozr heatsink covers both M.2 slots to keep NVMe storage temperatures in check during intensive read/write sessions. For memory, two DDR4 slots support dual-channel operation with up to 64 GB of non-ECC unbuffered RAM. JEDEC speeds run from 1866 to 2667 MHz, while A-XMP overclocking profiles push speeds up to 4600 MHz (1DPC 1R) or 4000 MHz (1DPC 2R), all manageable through MSI's BIOS with certified XMP profiles from the MSI OC Lab. Storage options include a PCIe 4.0 / 3.0 x4 M.2 slot sourced from the processor, a secondary PCIe 3.0 x4 M.2 slot from the B550 chipset, and four SATA 6 Gb/s ports. RAID 0, 1, and 10 are supported for SATA devices; RAID 0 and 1 for M.2 NVMe drives. Networking is handled by a Realtek RTL8125B 2.5 Gbps wired LAN controller complemented by an Intel AX200 Wi-Fi 6 module pre-installed in the M.2 Key-E slot — supporting 802.11 a/b/g/n/ac/ax, MU-MIMO on 2.4 GHz and 5 GHz (up to 2.4 Gbps), and Bluetooth 5.1. The rear I/O includes HDMI 2.1 (up to 4096×2160 @ 60 Hz for processors with integrated graphics), USB 3.2 Gen 2 10 Gbps Type-A and Type-C ports, USB 3.2 Gen 1 5 Gbps Type-A, USB 2.0, Optical S/PDIF output, PS/2 combo port, and a pre-installed I/O shield. A Flash BIOS Button and Clear CMOS button are also present for simplified maintenance. Audio is powered by the Realtek ALC1200 codec delivering 7.1-channel high-definition audio. An internal 3-pin RAINBOW LED connector and four EZ Debug LEDs round out the feature set. Key Specifications: • Form Factor: Mini-ITX (17.0 cm × 17.0 cm) • Chipset: AMD B550 • CPU Support: AMD Ryzen 5000 / 4000 G-Series / 3000 Series (AM4) • Memory: 2× DDR4 slots, up to 64 GB, up to 4600 MHz (A-XMP OC) • Expansion: 1× PCIe 4.0/3.0 x16 slot • Storage: 2× M.2 (PCIe 4.0/3.0 x4 + PCIe 3.0 x4), 4× SATA 6 Gb/s • LAN: Realtek RTL8125B 2.5 Gbps • Wireless: Intel AX200, Wi-Fi 6 (802.11ax), Bluetooth 5.1 • Audio: Realtek ALC1200, 7.1-channel HD Audio, S/PDIF • USB: Gen 2 10 Gbps (Type-A + Type-C), Gen 1 5 Gbps, USB 2.0 • Display: HDMI 2.1 (4K @ 60 Hz) • Warranty: 3 Years

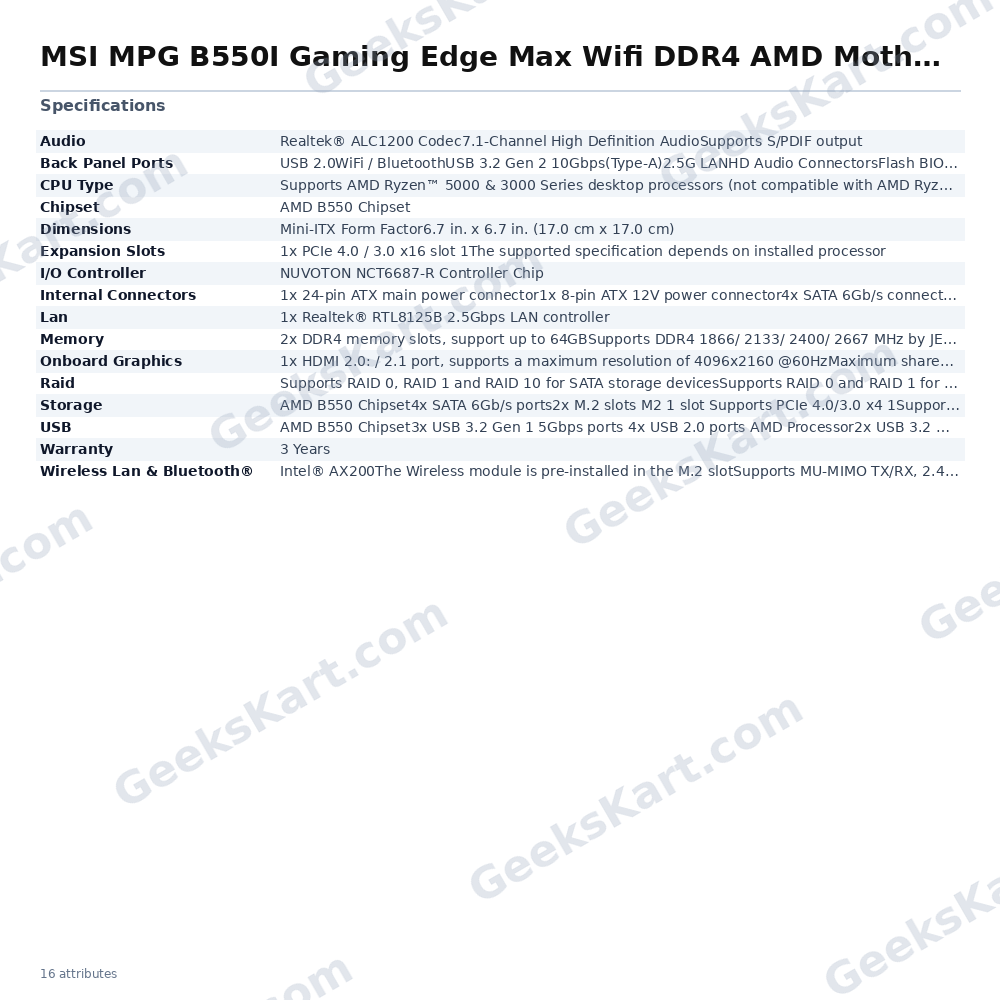

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD B550 Chipset |
| CPU Type | Supports AMD RyzenTM 5000 & 3000 Series desktop processors (not compatible with AMD RyzenTM 5 3400G & RyzenTM 3 3200G) and AMD RyzenTM 4000 G-Series desktop processors |
| Lan | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| USB | AMD B550 Chipset3x USB 3.2 Gen 1 5Gbps ports 4x USB 2.0 ports AMD Processor2x USB 3.2 Gen 2 10Gbps ports on the back panel2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Memory | 2x DDR4 memory slots, support up to 64GBSupports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDECSupports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE1DPC 1R max speed 4600 MHZ1DPC 2R max speed 4000 MHZDual channel memory architectureSupports non-ECC UDIMM memorySupports un-buffered memory |
| Storage | AMD B550 Chipset4x SATA 6Gb/s ports2x M.2 slots M2 1 slot Supports PCIe 4.0/3.0 x4 1Supports SATA 6Gb/sSupports 2260/ 2280 storage devicesM2_2 slot Supports PCIe 3.0×4 Supports 2280 storage devicesThe supported specification depends on installed processor |
| Dimensions | Mini-ITX Form Factor6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| Expansion Slots | 1x PCIe 4.0 / 3.0 x16 slot 1The supported specification depends on installed processor |
| Back Panel Ports | USB 2.0WiFi / BluetoothUSB 3.2 Gen 2 10Gbps(Type-A)2.5G LANHD Audio ConnectorsFlash BIOS ButtonPS/2 Combo PortHDMI 2.1USB 3.2 Gen 2 10Gbps(Type-C)Clear CMOSUSB 3.2 Gen 1 5Gbops(Type-A)Optical S/PDIF OUT |
| Onboard Graphics | 1x HDMI 2.0: / 2.1 port, supports a maximum resolution of 4096×2160 @60HzMaximum shared memory of 2048 MBAvailable for the processor with integrated graphics |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors2x M.2 slots 1x USB 3.2 Gen 1 5Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector 1x USB 2.0 connector 1x 4-pin CPU fan connector1x 4-pin water-pump fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x 3-pin RAINBOW LED connector1x Clear CMOS jumper4x EZ Debug LED |
| Wireless Lan & Bluetooth® | Intel® AX200The Wireless module is pre-installed in the M.2 slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.1 |
