MSI MPG B760I Edge WIFI Motherboard

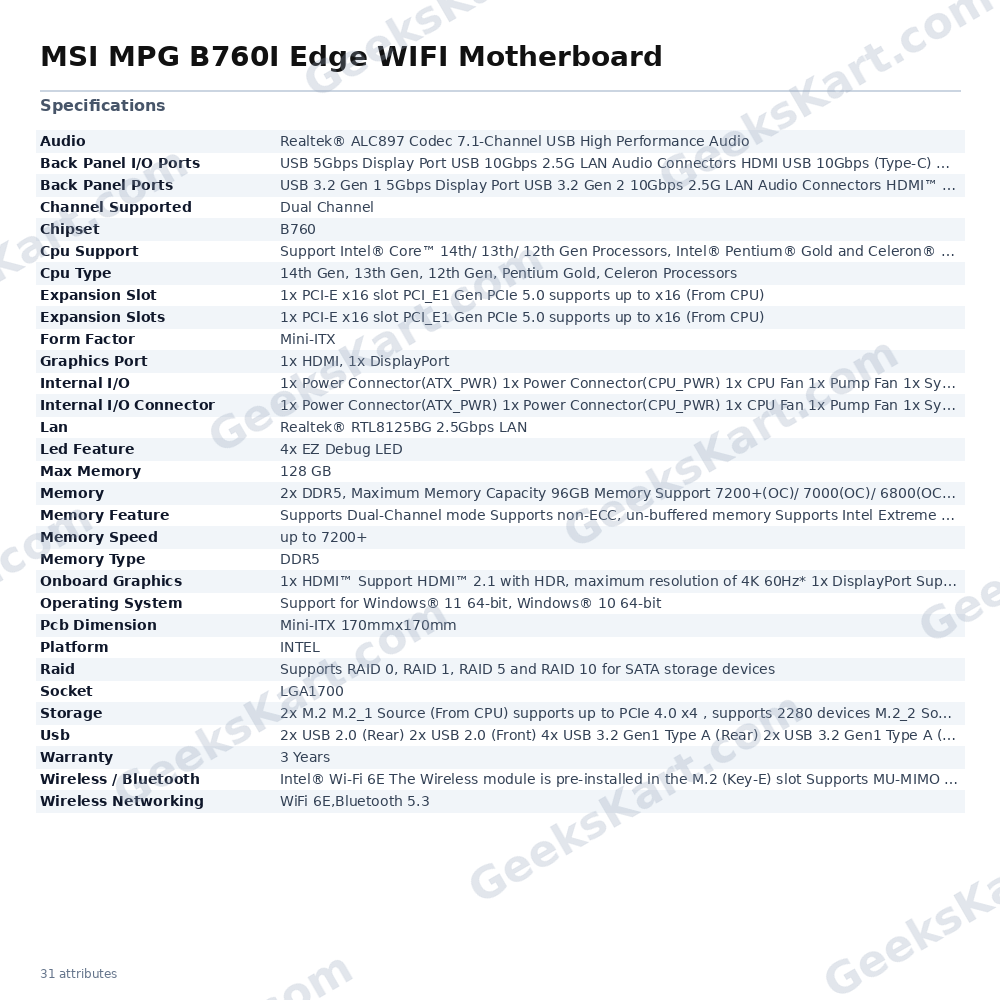

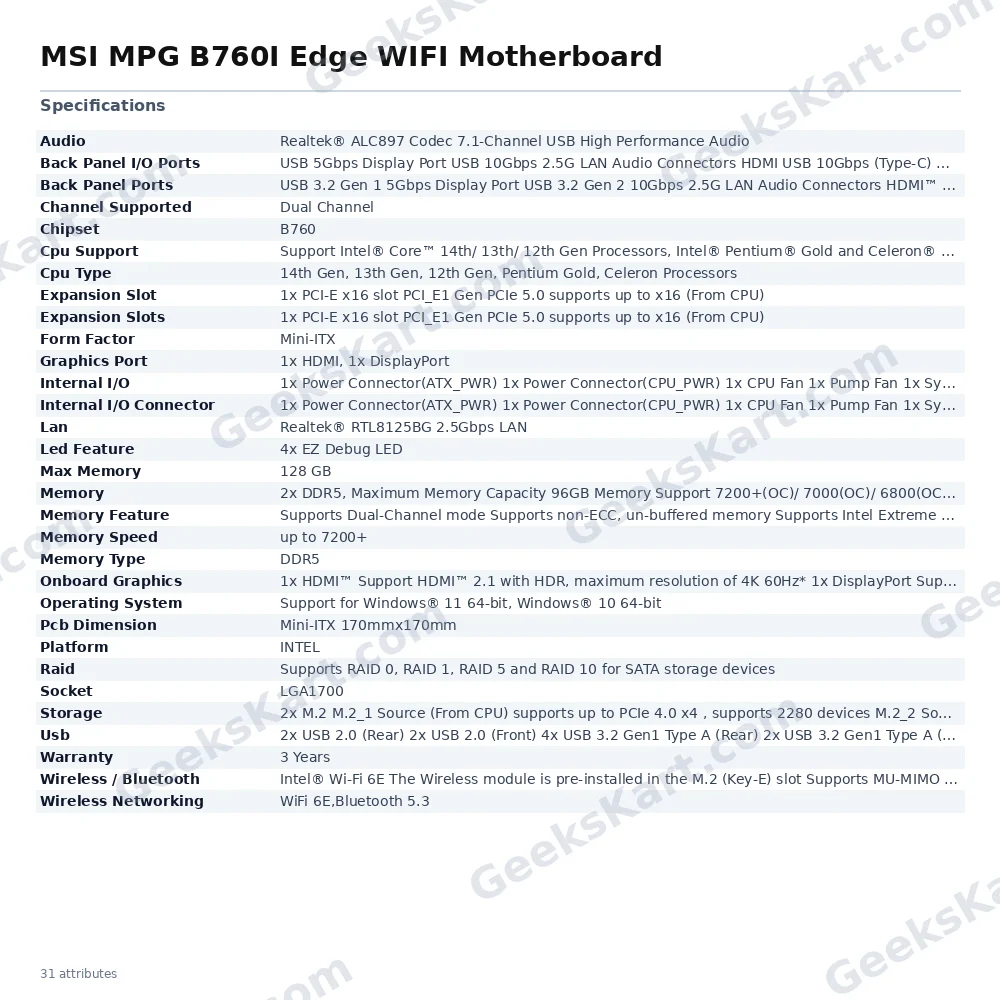

Features: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR5 Memory, up to 7200+(OC) MHz Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 8-layer PCB made by server grade level material Pre-installed I/O Shield: Better EMI protection and more convenience for installation Specifications: Chipset INTEL B760 CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 Memory 2x DDR5, Maximum Memory Capacity 96GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Onboard Graphics 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz EXPANSION SLOT 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB 2x USB 2.0 (Rear) 2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) LAN Realtek® RTL8125BG 2.5Gbps LAN WIRELESS / BLUETOOTH Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA Audio Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Internal I/O 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports LED FEATURE 4x EZ Debug LED BACK PANEL PORTS USB 3.2 Gen 1 5Gbps Display Port USB 3.2 Gen 2 10Gbps 2.5G LAN Audio Connectors HDMI™ USB 3.2 Gen 2 10Gbps (Type-C) USB 2.0 Wi-Fi / Bluetooth OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB Dimension Mini-ITX 170mmx170mm Warranty 3 Years Note *** Features, Price, Specifications are subject to change without notice
