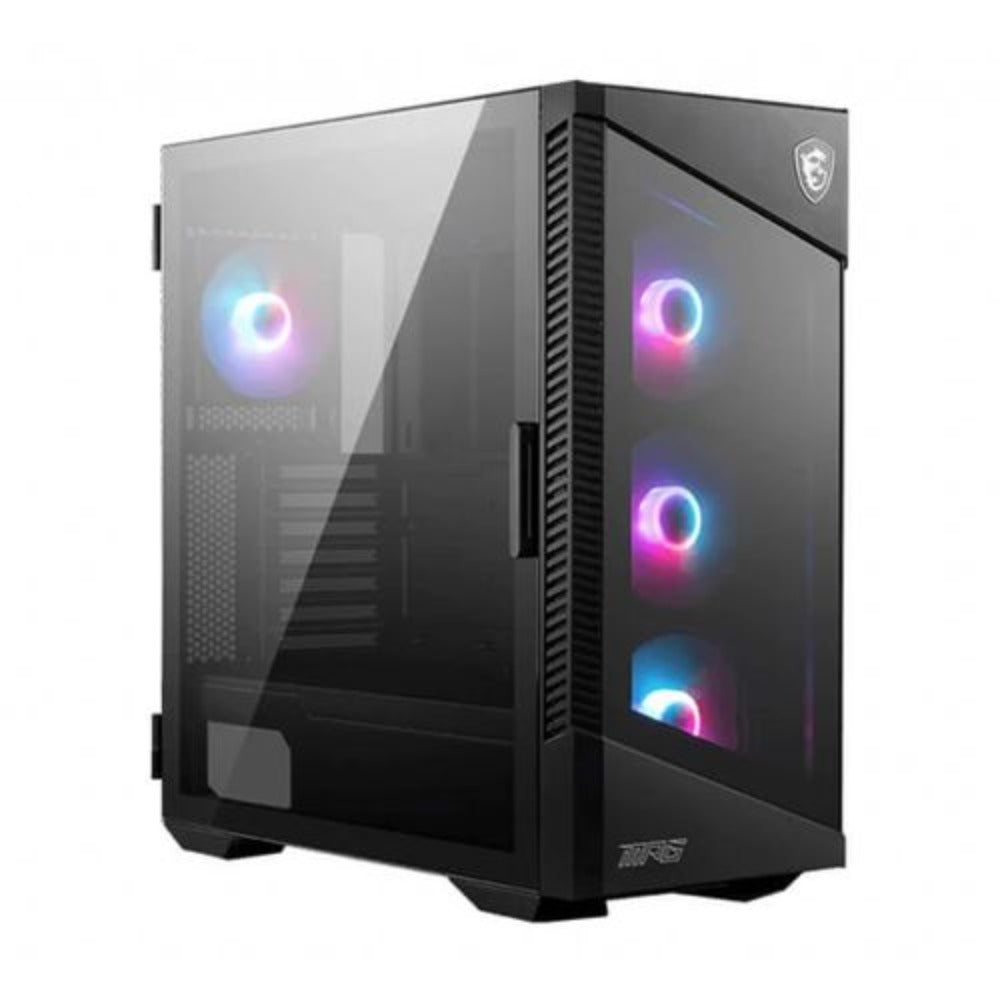

MSI MPG Velox 100R ATX Mid Tower Cabinet (Black)
MPN MSI-MPG-VELOX-100R-BLACK · Brand MSI · Mid Tower
The MSI MPG Velox 100R is an ATX mid-tower cabinet featuring 4 pre-installed ARGB fans, a hinged 3mm tempered glass side panel, 360mm radiator support, and a USB 3.2 Gen 2×2 Type-C front port for modern builds
Inclusive of GST · GST invoice available
Overview
The MSI MPG Velox 100R is a mid-tower ATX cabinet built for gamers who want a visually striking build without sacrificing airflow or component flexibility. Its tempered glass front panel puts four pre-installed ARGB fans on full display, while a 3mm hinged tempered glass side window swings open for effortless component access and a clear view of your build. An Insta-Light Loop button on the front I/O lets you cycle through MSI Mystic Light lighting profiles without touching your PC software, making it easy to adapt the aesthetic on the fly. Airflow is a priority in this cabinet. The Velox 100R ships with three 120mm ARGB fans at the front and one 120mm ARGB fan at the rear, and the chassis supports up to seven fans in total across the front, top, rear, and side positions. The side air vent can accommodate up to two fans or a 240mm radiator, while the front and top each support radiators up to 360mm — giving liquid cooler enthusiasts plenty of configuration room. For high-end GPU builds, the included vertical GPU bracket lets you mount your graphics card vertically to showcase it through the glass panel. The chassis accommodates GPUs up to 380mm in length and CPU coolers up to 175mm tall. A USB 3.2 Gen 2x2 Type-C front port running at 20Gbps pairs natively with compatible MSI motherboards, complemented by two USB 3.2 Gen 1 Type-A ports, audio-out, and mic-in for a complete front I/O. Verifiable Specifications: - Form Factor: Mid-Tower - Motherboard Support: ATX / Micro-ATX / Mini-ITX - Front I/O: 2 × USB 3.2 Gen 1 Type-A (5Gbps), 1 × USB 3.2 Gen 2×2 Type-C (20Gbps), 1 × Audio-out, 1 × Mic-in - Pre-installed Fans: 3 × 120mm ARGB (front), 1 × 120mm ARGB (rear) - Max Fan Support: 7 fans total - Radiator Support: Front/Top up to 360mm; Side up to 240mm; Rear 120mm - Max GPU Length: 380mm - Max CPU Cooler Height: 175mm - Max PSU Length: 220mm (ATX PSU) - Drive Bays: 2 × 2.5-inch, 2 × 3.5-inch - Expansion Slots: 7 - Dimensions (D × W × H): 474 × 231 × 490mm - Net Weight: 8.64 kg - Warranty: 1 Year

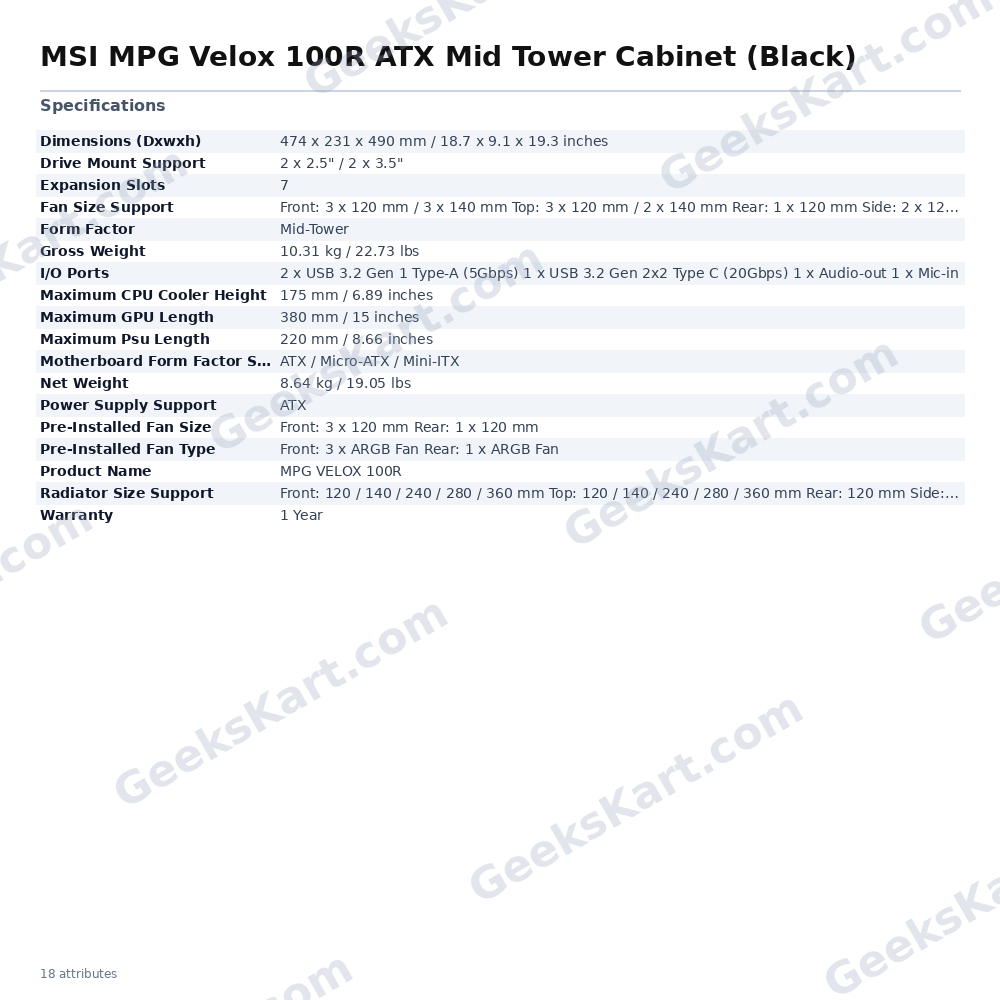

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | Mid Tower |
| I/O Ports | 2 x USB 3.2 Gen 1 Type-A (5Gbps) 1 x USB 3.2 Gen 2×2 Type C (20Gbps) 1 x Audio-out 1 x Mic-in |
| Net Weight | 8.64 kg / 19.05 lbs |
| Gross Weight | 10.31 kg / 22.73 lbs |
| Product Name | MPG VELOX 100R |
| Expansion Slots | 7 |
| Fan Size Support | Front: 3 x 120 mm / 3 x 140 mm Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Side: 2 x 120 mm / 2 x 140 mm |
| Dimensions (Dxwxh) | 474 x 231 x 490 mm / 18.7 x 9.1 x 19.3 inches |
| Maximum GPU Length | 380 mm / 15 inches |
| Maximum Psu Length | 220 mm / 8.66 inches |
| Drive Mount Support | 2 x 2.5" / 2 x 3.5" |
| Power Supply Support | ATX |
| Radiator Size Support | Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 140 / 240 / 280 / 360 mm Rear: 120 mm Side: 120 / 240 mm |
| Pre-Installed Fan Size | Front: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-Installed Fan Type | Front: 3 x ARGB Fan Rear: 1 x ARGB Fan |
| Maximum CPU Cooler Height | 175 mm / 6.89 inches |
| Motherboard Form Factor Support | ATX / Micro-ATX / Mini-ITX |
