MSI MPG X870I Edge Ti Evo Wifi7 DDR5 AMD Motherboard

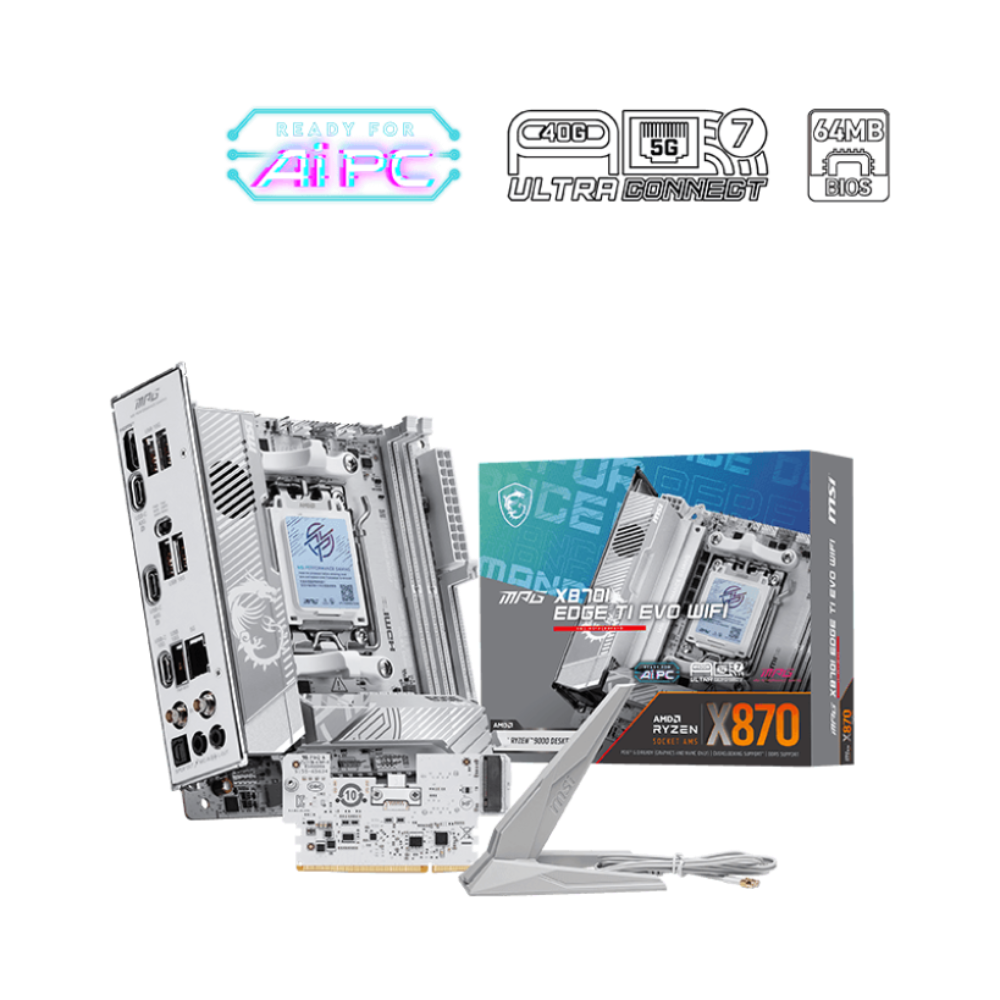

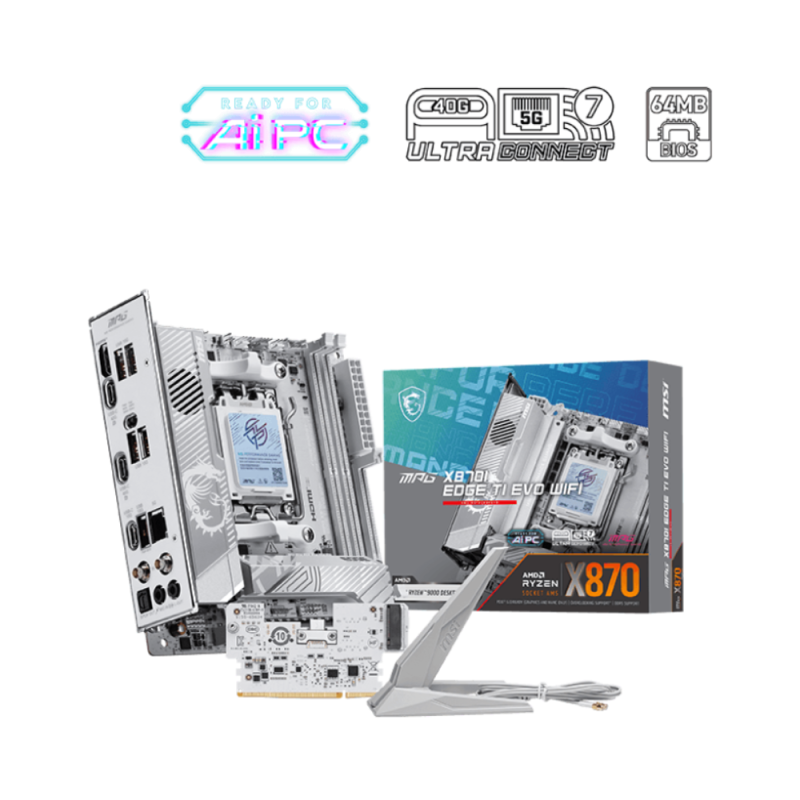

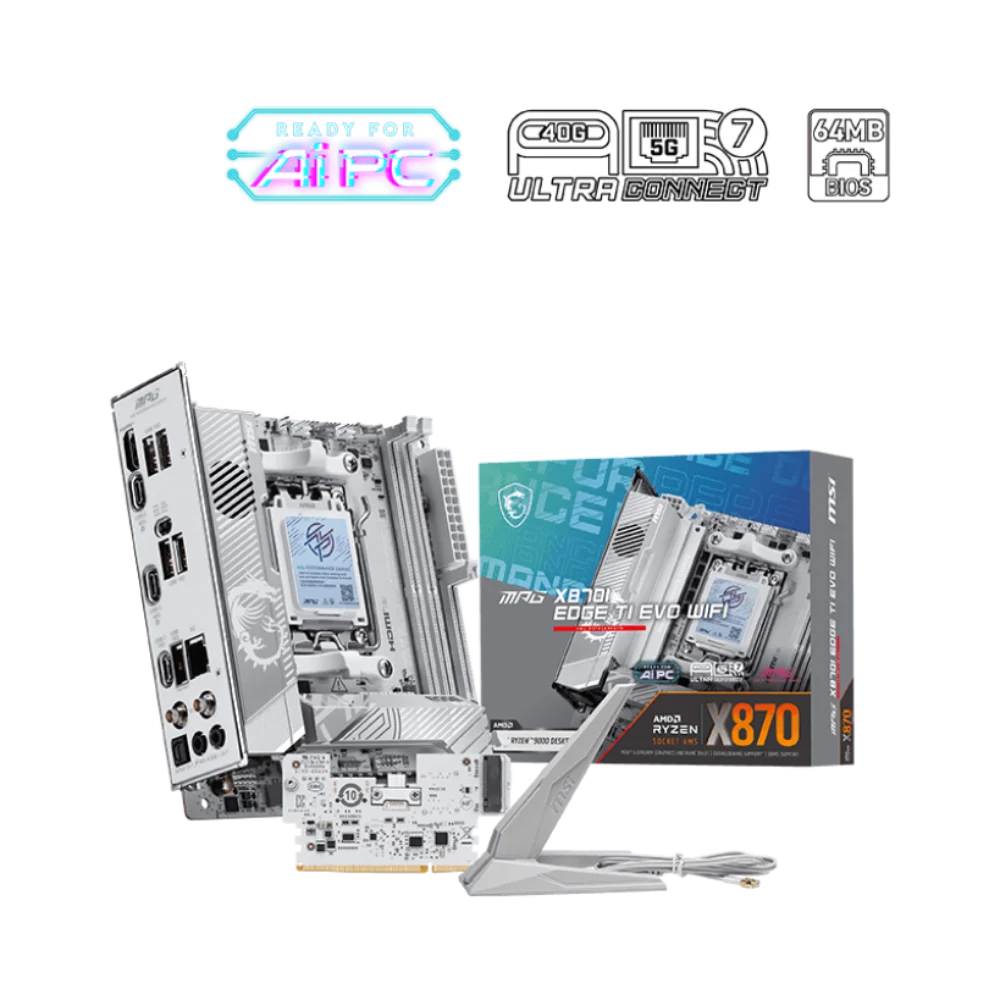

The MSI MPG X870I Edge Ti Evo is a Mini-ITX (170 mm × 170 mm) motherboard built on the AMD X870 chipset, designed for builders who want full AM5 platform performance in a compact chassis. It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors via the Socket AM5 interface, making it a forward-compatible choice for current and near-future AMD CPU generations. Connectivity on this board is a genuine highlight for its form factor. The integrated Wi-Fi 7 module — pre-installed in an M.2 Key-E slot — supports the 802.11be standard across 2.4 GHz, 5 GHz, and 6 GHz bands with 320 MHz channel width, MU-MIMO TX/RX, MLO (Multi-Link Operation), and 4K-QAM modulation, reaching theoretical wireless throughput up to 5.8 Gbps. Bluetooth 5.4 is also supported. Wired networking is handled by a Realtek 8126 controller delivering 5G LAN, well above the 2.5G LAN common on competing boards at this size. Two USB 40 Gbps (USB4) Type-C ports sit on the rear panel alongside five USB 10 Gbps Type-A ports, one USB 10 Gbps Type-C port, and an HDMI 2.1 output for processors with integrated graphics. Memory support spans two DDR5 slots with a maximum capacity of 128 GB. JEDEC speeds range from 4800 to 5600 MT/s, while overclocking via AMD EXPO or manual XMP profiles can reach up to DDR5-10000 MT/s; Ryzen 9000 processors support 1DPC single-rank speeds of 8400+ MT/s. The board supports CUDIMM in clock-driver bypass mode only. Storage flexibility is delivered through three M.2 slots: M.2_1 (CPU-direct) runs up to PCIe 5.0 x4 on Ryzen 9000/7000 processors, while M.2_2 and M.2_3 (both chipset-connected) support up to PCIe 4.0 x4. Two SATA 6 Gbps ports round out the storage options, with RAID 0/1 for SATA and RAID 0/1/5 for NVMe (RAID 5 requires Ryzen 9000). The single PCIe x16 slot runs at PCIe 5.0 x16 on Ryzen 9000/7000 for full-bandwidth GPU installations. Audio is managed by a Realtek ALC4080 codec, providing 7.1-channel USB audio with up to 32-bit/384 kHz front-panel playback and optical S/PDIF output. The board ships with a pre-installed I/O shield, MSI EZ Antenna for tool-free wireless antenna attachment, 7 W/mK MOSFET thermal pads, M.2 Shield Frozr thermal covers, and four EZ Debug LEDs for straightforward POST diagnostics. Addressable Gen 2 RGB headers enable Mystic Light integration. The silver-white PCB colour scheme suits white-themed PC builds. Verified Specifications: • Form Factor: Mini-ITX, 170 mm × 170 mm • Chipset: AMD X870 • Socket: AM5 (Ryzen 9000 / 8000 / 7000 series) • Memory: 2× DDR5, max 128 GB, up to DDR5-10000 MT/s (OC) • PCIe Slot: 1× PCIe 5.0 x16 (CPU) • M.2 Slots: 3× (1× PCIe 5.0 x4 CPU; 2× PCIe 4.0 x4 chipset) • SATA: 2× SATA 6 Gbps • LAN: Realtek 8126 5G • Wireless: Wi-Fi 7 (802.11be), up to 5.8 Gbps, 6 GHz / 320 MHz • Bluetooth: 5.4 • Rear USB: 2× USB4 40 Gbps Type-C, 5× USB 10 Gbps Type-A, 1× USB 10 Gbps Type-C • Audio: Realtek ALC4080, 7.1-ch, 32-bit/384 kHz, S/PDIF out • Display: HDMI 2.1 (4K 60 Hz, iGPU only) • OS: Windows 11 64-bit
