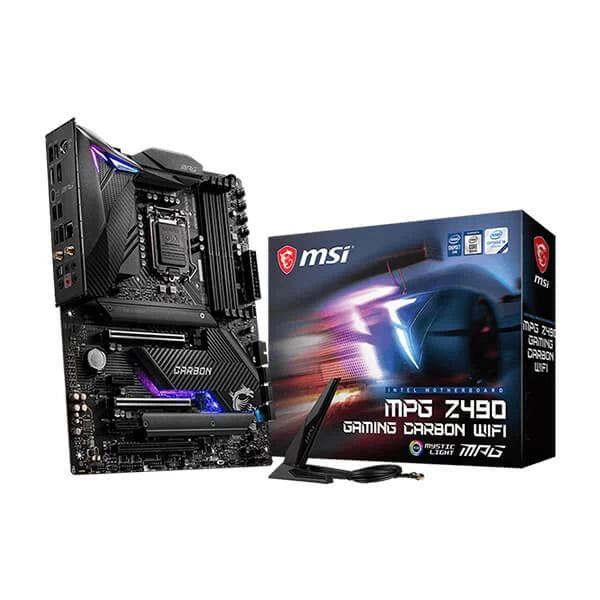

MSI MPG Z490 Gaming Carbon Wifi DDR4 Intel Motherboard

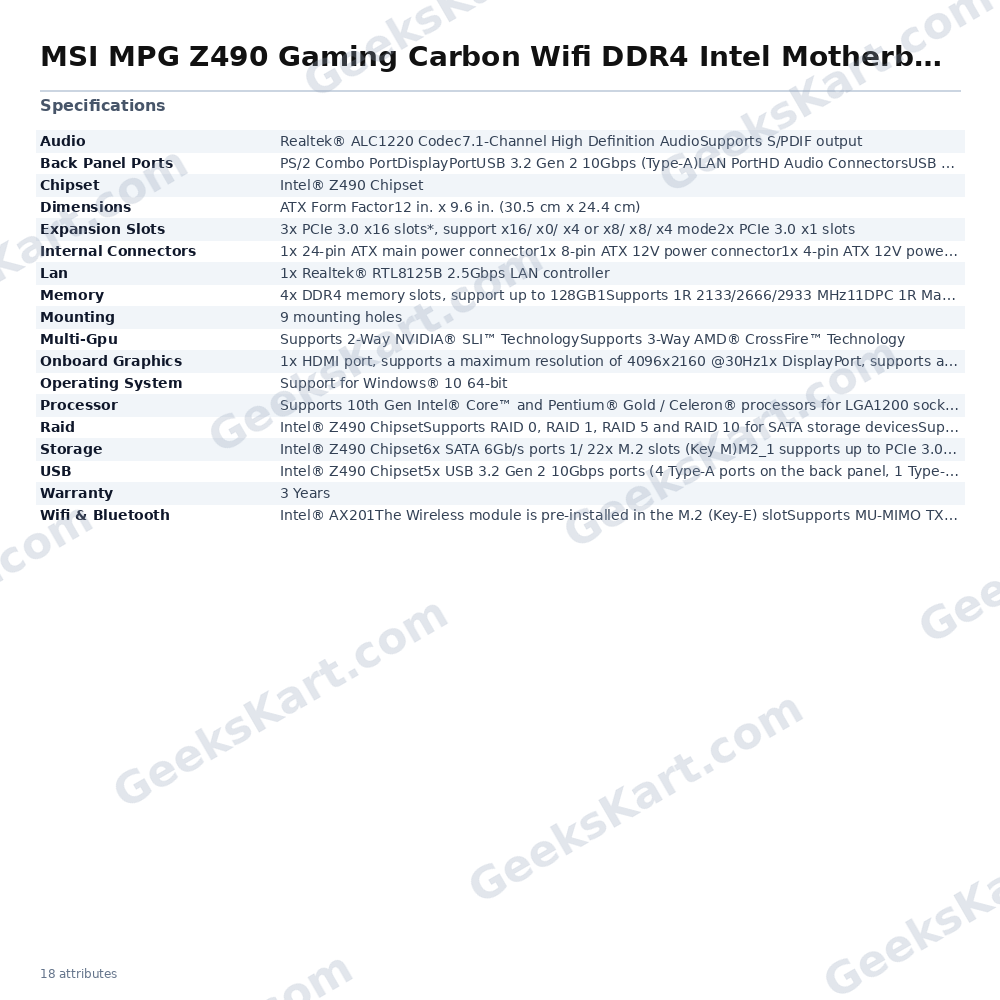

The MSI MPG Z490 Gaming Carbon WiFi is an ATX-form-factor motherboard built on the Intel Z490 chipset for Intel's LGA1200 socket. It is designed to pair with 10th Generation Intel Core, Pentium Gold, and Celeron processors, delivering a solid platform for gaming builds and enthusiast systems alike. At the heart of its power delivery is a 12+1+1 Duet Rail Power System with both 8-pin and 4-pin ATX 12V CPU power connectors, providing stable voltage regulation even under sustained loads. The board accommodates four DDR4 memory slots supporting up to 128 GB of non-ECC unbuffered RAM in dual-channel configuration, with native speeds of 2133/2666/2933 MHz and overclocked frequencies reaching 4800+ MHz (1DPC 1R) via Intel XMP profiles validated by MSI's OC Lab. Storage is handled by six SATA 6 Gb/s ports and two M.2 Key-M slots, both covered by MSI's M.2 Shield Frozr thermal solution to keep NVMe SSDs running at consistent speeds. M2_1 accepts PCIe 3.0 x4 or SATA devices in 2242/2260/2280/22110 lengths, while M2_2 supports PCIe 3.0 x4 or SATA in 2242/2260/2280 lengths. RAID 0, 1, 5, and 10 are available for SATA arrays, and RAID 0 and 1 for M.2 PCIe devices. Connectivity is extensive: onboard Intel AX201 delivers Wi-Fi 6 (pre-certified, 2.4 GHz/5 GHz up to 2.4 Gbps with 160 MHz channels, MU-MIMO TX/RX) alongside Bluetooth 5.1. Wired networking is handled by a Realtek RTL8125B 2.5 Gbps LAN controller. USB ports span USB 3.2 Gen 2x2 (20 Gbps, Type-C via ASMedia ASM3241), five USB 3.2 Gen 2 (10 Gbps) ports, two USB 3.2 Gen 1 (5 Gbps) internal ports, and six USB 2.0 ports. Audio is powered by a Realtek ALC1220 codec delivering 7.1-channel HD audio with S/PDIF optical output. Expansion slots include three PCIe 3.0 x16 slots (supporting x16/x0/x4 or x8/x8/x4 configurations for 2-Way NVIDIA SLI and 3-Way AMD CrossFire) and two PCIe 3.0 x1 slots. RGB enthusiasts will find MSI Mystic Light with 16.8 million colours and 29 effects, plus headers for 4-pin RGB, 3-pin RAINBOW, and 3-pin CORSAIR LED strips. Verified Specifications: - Form Factor: ATX — 12 in. x 9.6 in. (30.5 cm x 24.4 cm) - Chipset: Intel Z490 - Socket: LGA1200 (10th Gen Intel Core / Pentium Gold / Celeron) - Memory: 4x DDR4 slots, up to 128 GB; XMP support; up to 4800+ MHz (OC) - Storage: 6x SATA 6 Gb/s; 2x M.2 PCIe 3.0 x4 / SATA (with M.2 Shield Frozr) - Wireless: Intel AX201, Wi-Fi 6 pre-certified, Bluetooth 5.1 - LAN: Realtek RTL8125B 2.5 Gbps - USB: 1x USB 3.2 Gen 2x2 20 Gbps (Type-C); 5x USB 3.2 Gen 2 10 Gbps; 2x USB 3.2 Gen 1 5 Gbps; 6x USB 2.0 - Audio: Realtek ALC1220, 7.1-CH HD Audio, S/PDIF output - Display Output: 1x HDMI (4K@30Hz), 1x DisplayPort (4K@60Hz) - Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power - OS Support: Windows 10 64-bit - Warranty: 3 Years
