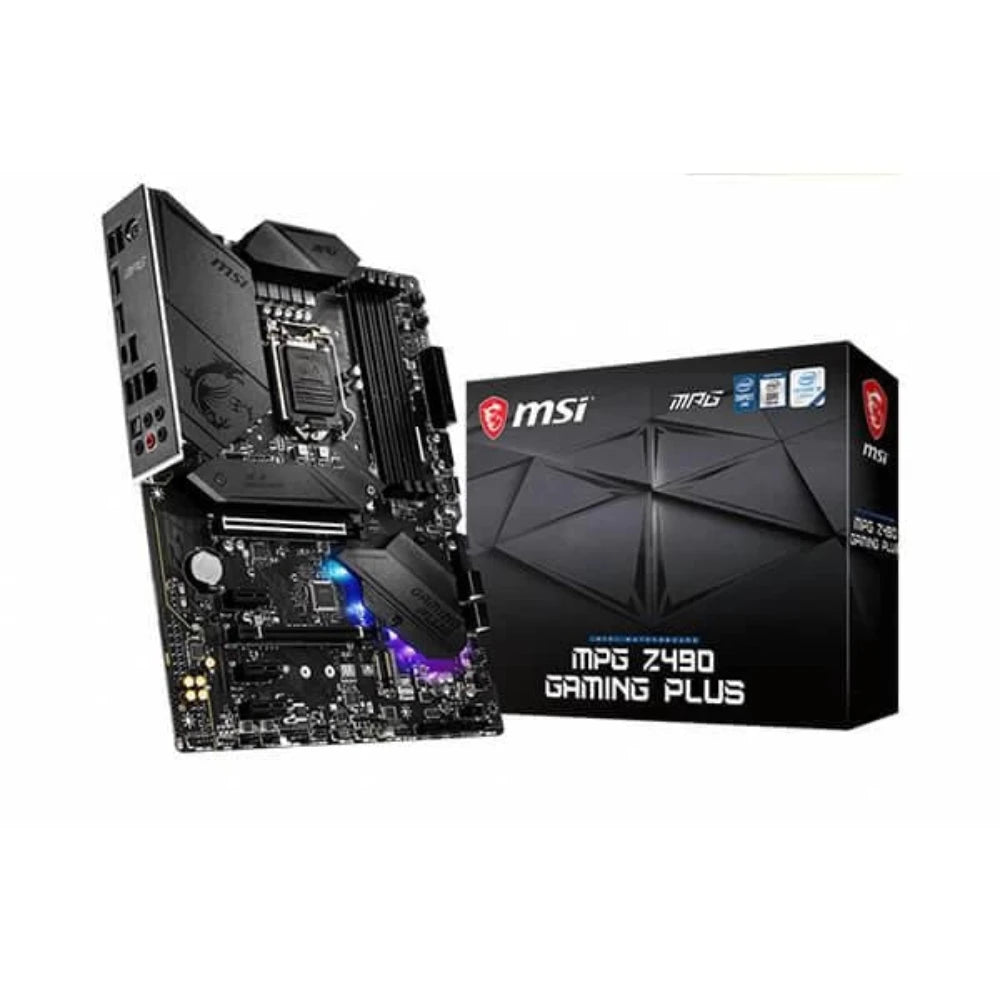

MSI MPG Z490 Gaming Plus DDR4 Intel Motherboard
MPN MSI-MPG-Z490-GAMING-PLUS · Brand MSI
The MSI MPG Z490 Gaming Plus is an ATX motherboard for Intel 10th Gen LGA1200 processors, featuring a 12+1+1 power design, dual M.2 with Shield Frozr cooling, 2.5G LAN, and USB 3.2 Gen 2 connectivity
Inclusive of GST · GST invoice available
Overview
The MSI MPG Z490 Gaming Plus is a full-size ATX motherboard built around the Intel Z490 chipset, designed to accommodate Intel 10th Generation Core, Pentium Gold, and Celeron processors in the LGA1200 socket. Its 12+1+1 Duet Rail Power System, paired with 8+4-pin CPU power connectors, delivers stable current headroom for demanding multi-core workloads and overclocking sessions. Memory capacity reaches up to 128GB across four DDR4 DIMM slots, with XMP profile support and overclocked frequencies scaling to 4800+ MHz in a single-rank, single-channel configuration. MSI's DDR4 Boost technology applies isolated signal routing to reduce interference and preserve data integrity at high speeds. Storage is handled by six SATA 6Gb/s ports and two Key-M M.2 slots, each capable of PCIe 3.0 x4 and SATA 6Gb/s operation. The M.2 Shield Frozr thermal covers help manage drive temperatures under sustained sequential loads, reducing the risk of thermal throttling. RAID configurations 0, 1, 5, and 10 are supported on SATA devices; RAID 0 and 1 are available for M.2 PCIe devices. Networking is handled by a Realtek RTL8125B-CG controller delivering 2.5 Gigabit Ethernet, a step up from the standard 1GbE found on many competing boards. USB connectivity is comprehensive: two USB 3.2 Gen 2 (10Gbps) ports sit on the rear panel — one Type-A and one Type-C — alongside two USB 3.2 Gen 1 Type-A and two USB 2.0 Type-A ports at the back, with further internal headers expanding total port count. Audio is powered by the Realtek ALC1200-VD1 codec supporting 7.1-channel High Definition Audio and S/PDIF optical output. The extended PWM heatsink and pre-installed I/O shield round out the feature set. RGB and addressable RAINBOW LED headers allow lighting integration with compatible strips and components. Verified Specifications: - Chipset: Intel Z490 - Socket: LGA1200 (Intel 10th Gen Core / Pentium Gold / Celeron) - Form Factor: ATX, 12 in. x 9.6 in. (30.5 cm x 24.4 cm) - Memory: 4x DDR4 slots, up to 128GB, XMP support, up to 4800+(OC) MHz - Storage: 6x SATA 6Gb/s, 2x M.2 (PCIe 3.0 x4 / SATA) - LAN: Realtek RTL8125B-CG 2.5G - USB: 2x Gen2 10Gbps (rear), 7x Gen1 5Gbps, 6x USB 2.0 - Audio: Realtek ALC1200-VD1, 7.1-channel HD Audio, S/PDIF out - Expansion: 1x PCIe 3.0 x16 (CPU), 1x PCIe 3.0 x16 (PCH, x4 mode), 3x PCIe x1 - Multi-GPU: 2-Way AMD CrossFire - OS Support: Windows 10 64-bit - Warranty: 3 Years

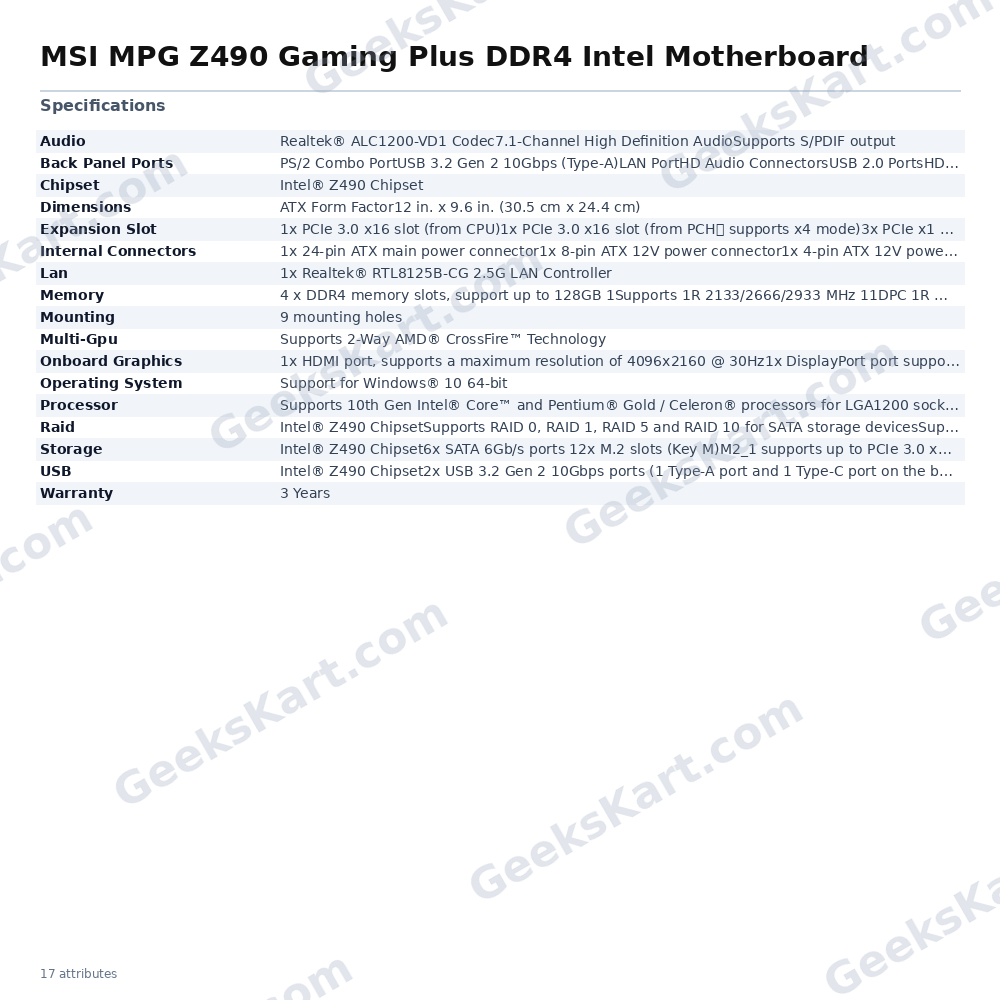

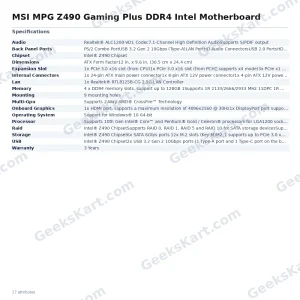

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® Z490 Chipset |
| Lan | 1x Realtek® RTL8125B-CG 2.5G LAN Controller |
| USB | Intel® Z490 Chipset2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Raid | Intel® Z490 ChipsetSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 PCIe storage devices |
| Audio | Realtek® ALC1200-VD1 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Memory | 4 x DDR4 memory slots, support up to 128GB 1Supports 1R 2133/2666/2933 MHz 11DPC 1R Max speed up to 4800+ MHz1DPC 2R Max speed up to 4266+ MHz2DPC 1R Max speed up to 4400+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)Please refer http://www.msi.com for more information on compatible memory |
| Storage | Intel® Z490 Chipset6x SATA 6Gb/s ports 12x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2Intel® Optane™ Memory Ready 3Supports Intel® Smart Response Technology for Intel Core™ processorsSATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website |
| Mounting | 9 mounting holes |
| Multi-Gpu | Supports 2-Way AMD® CrossFire™ Technology |
| Processor | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2Please go to intel.com for compatibility information.Onboard graphics output are disabled when using the SKU processors |
| Dimensions | ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Expansion Slot | 1x PCIe 3.0 x16 slot (from CPU)1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)3x PCIe x1 slots (from PCH) |
| Back Panel Ports | PS/2 Combo PortUSB 3.2 Gen 2 10Gbps (Type-A)LAN PortHD Audio ConnectorsUSB 2.0 PortsHDMI PortDisplayPortUSB 3.2 Gen 2 10Gbps (Type-C)USB 3.2 Gen 1 5Gbps (Type-A)Optical S/PDIF OUT |
| Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| Operating System | Support for Windows® 10 64-bit |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector1x 4-pin ATX 12V power connector6x SATA 6Gb/s connectors1x USB 3.2 Gen 1 5Gbps Type-C port2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (support additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water pump connector6x 4-pin system fan connectors1x front panel audio connector2x system panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x 4-pin RGB LED connector2x 3-pin RAINBOW LED connectors1x serial port connector1x TPM module connector1x TBT connector 1Thunderbolt card need support RTD3 |
