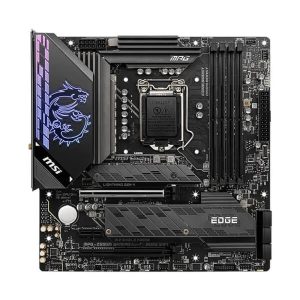

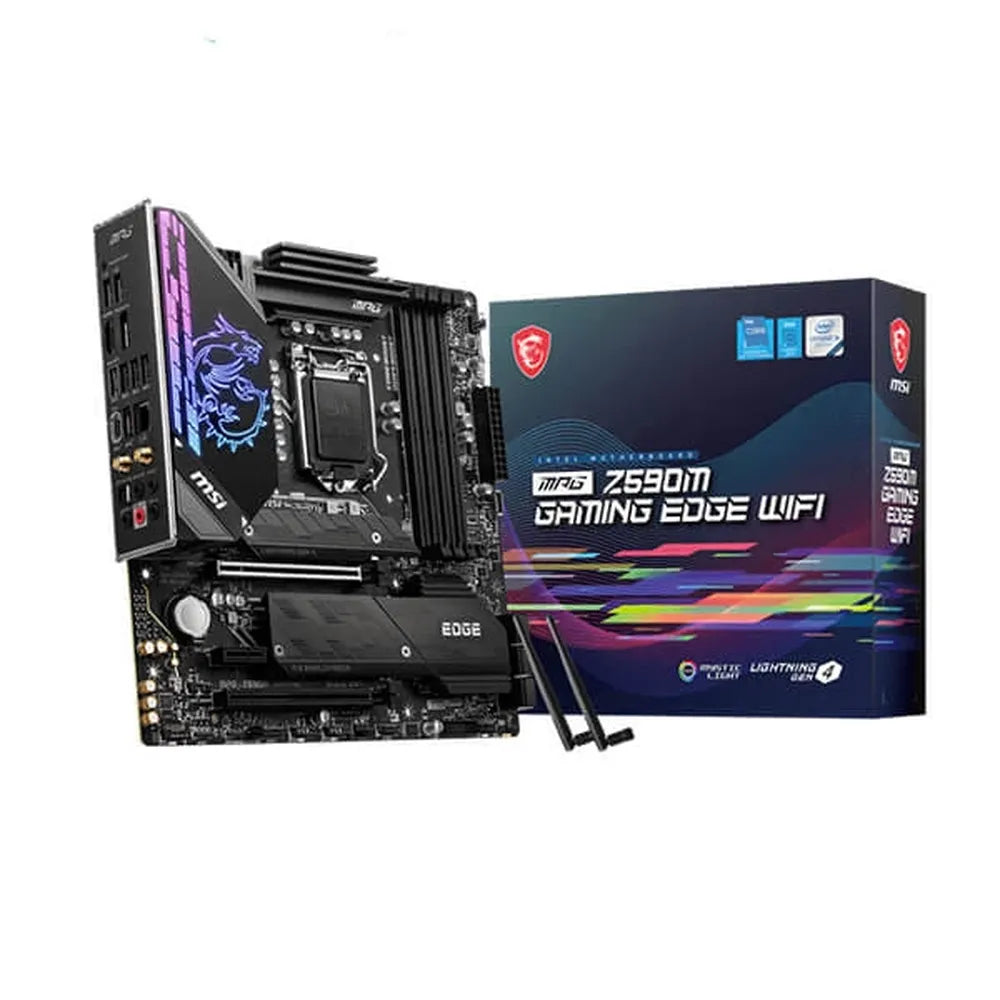

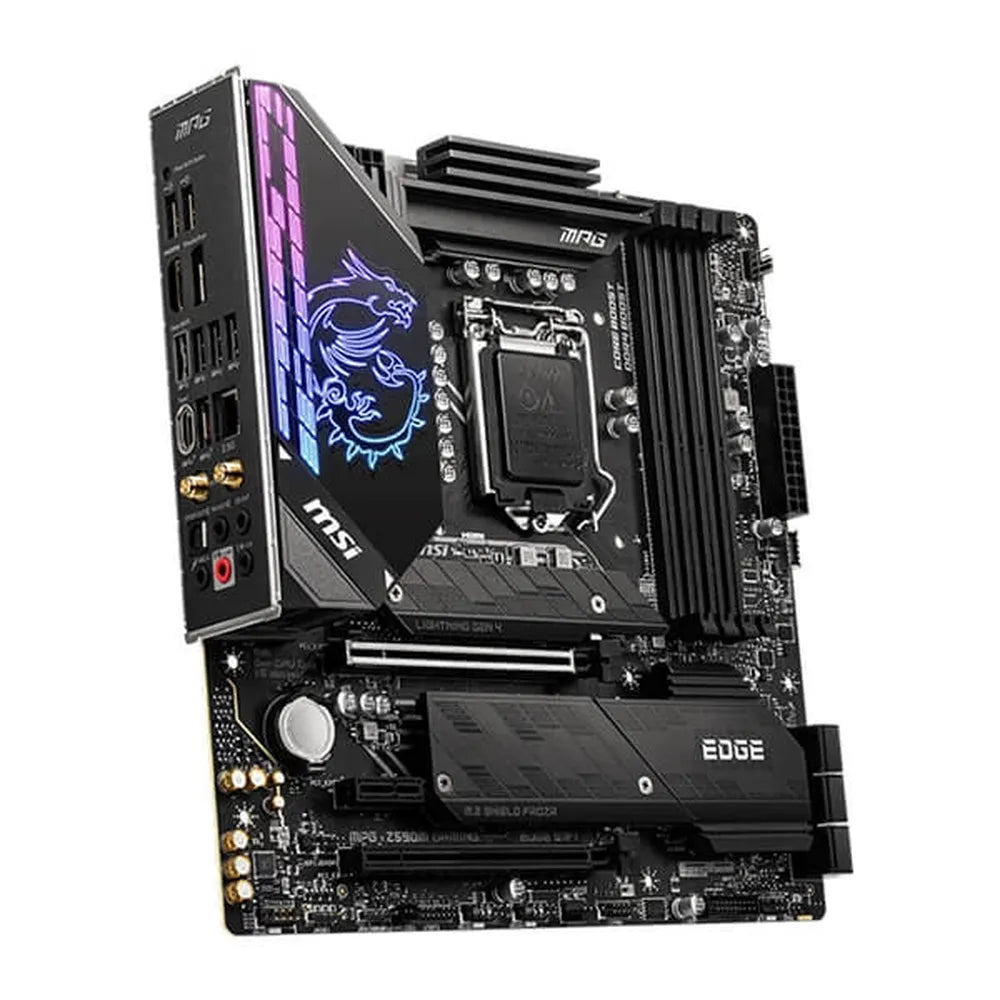

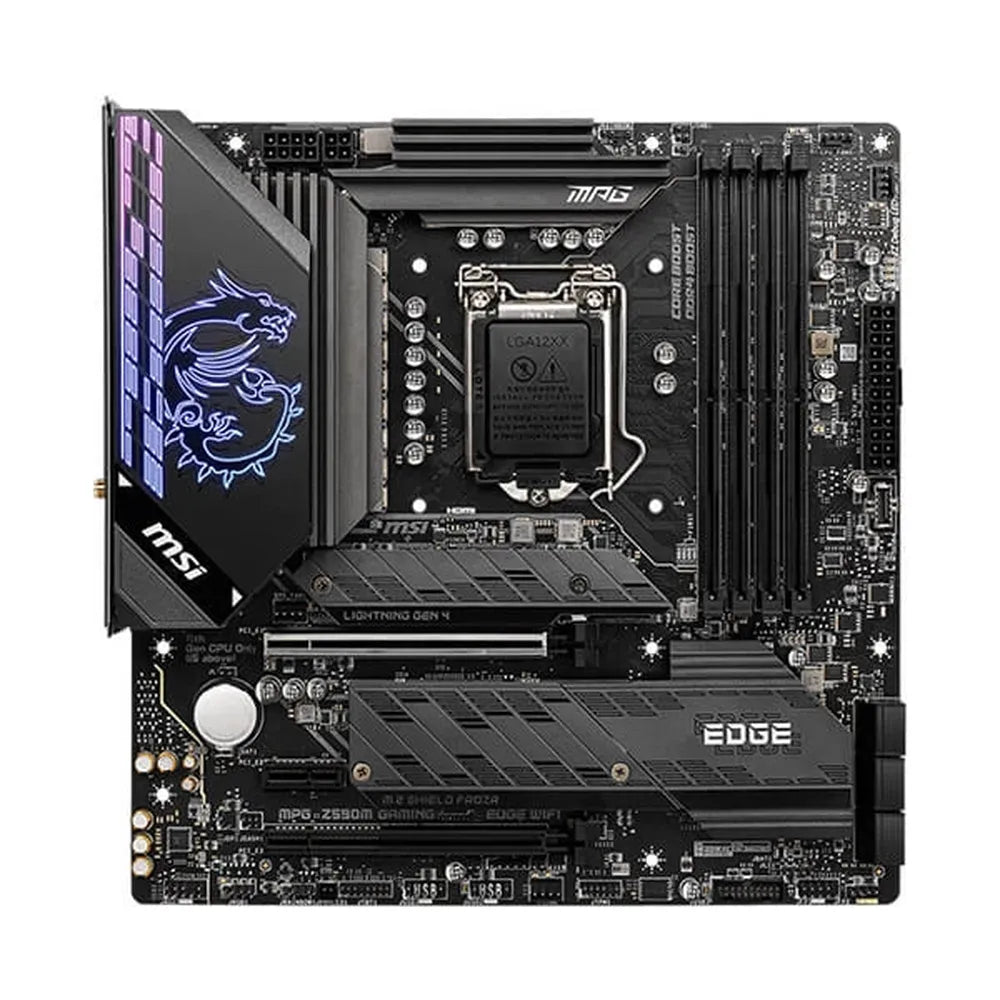

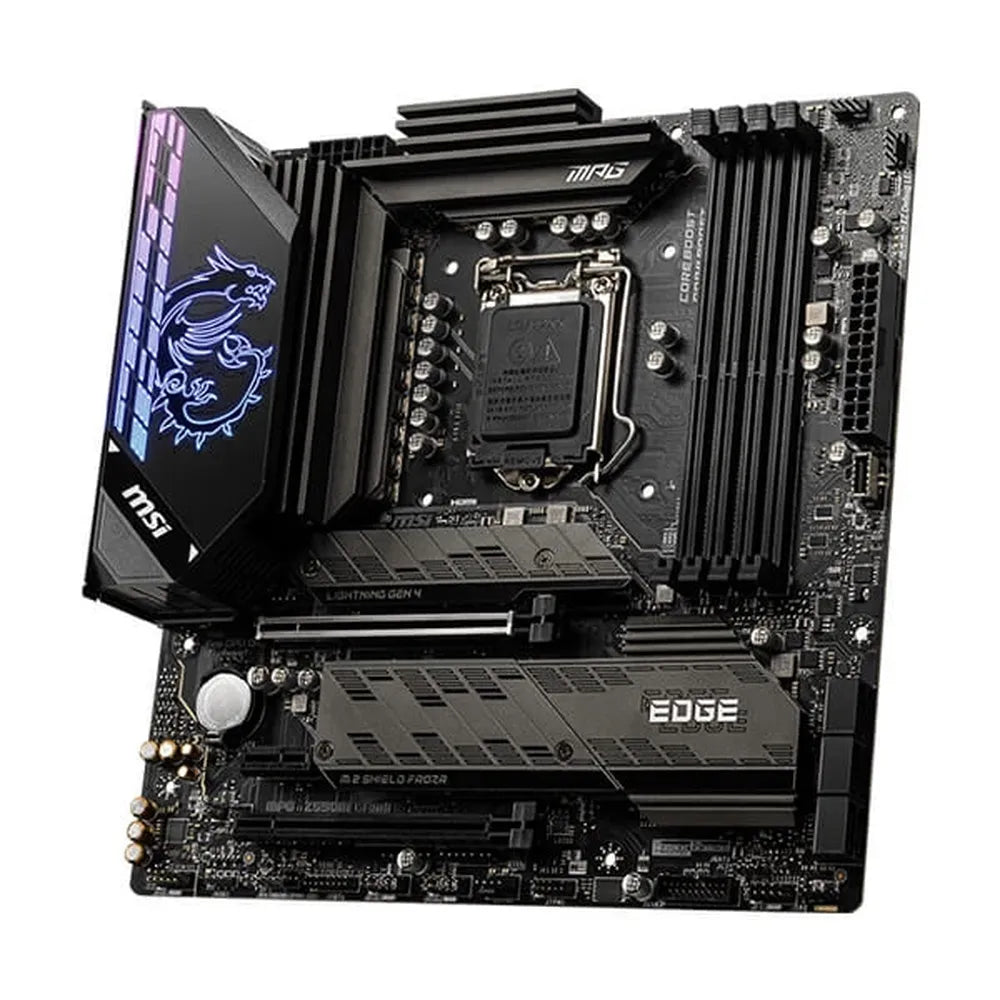

MSI MPG Z590M Gaming Edge WIFI Motherboard

The MSI MPG Z590M Gaming Edge WiFi is a Micro-ATX motherboard built on the Intel Z590 chipset and designed for Intel LGA1200 socket processors. It supports 10th-generation and 11th-generation Intel Core, Pentium Gold, and Celeron processors, making it a versatile platform for mid-range to enthusiast Intel builds. At the heart of its connectivity story is Intel Wi-Fi 6E (AX210), which covers the 2.4 GHz, 5 GHz, and 6 GHz bands at up to 160 MHz channel widths and up to 2.4 Gbps theoretical throughput, with MU-MIMO TX/RX and Bluetooth 5.2 support. Wired networking is handled by an Intel I225V 2.5 Gbps LAN controller, complemented by MSI's LAN Manager software for application-level traffic prioritisation. The board's 12+1+1 Duet Rail Power System, fed by an 8-pin plus 4-pin ATX 12V arrangement, delivers the power headroom needed for overclocking. When paired with an 11th-generation Intel CPU, the primary M.2 slot (M2_1, CPU-direct) supports PCIe 4.0 x4 for NVMe drives, while a second M.2 slot (M2_2, chipset) runs at PCIe 3.0 x4 or SATA 6 Gb/s. Both slots sit beneath MSI's M.2 Shield Frozr thermal covers. Six SATA 6 Gb/s ports round out the storage options, with RAID 0/1/5/10 support across SATA devices. Memory capacity reaches 128 GB across four DDR4 slots running at up to 5333 MHz (OC, 1DPC 1R) with XMP support. Audio is delivered through a Realtek ALC4080 codec with 7.1-channel HD Audio, isolated audio PCB traces, separated left/right channel layers, and five 3.5 mm rear audio jacks plus optical S/PDIF output. The rear I/O panel includes a USB 3.2 Gen 2×2 Type-C port at 20 Gbps, a USB 3.2 Gen 2 Type-A at 10 Gbps, four USB 3.2 Gen 1 Type-A at 5 Gbps, two USB 2.0 Type-A, DisplayPort 1.4 (up to 4K/60 Hz), HDMI 2.0b with HDR (up to 4K/60 Hz), a Flash BIOS button, and optical S/PDIF out. A USB 3.2 Gen 2 Type-C internal header supports front-panel connectivity. Mystic Light provides 16.8 million colours and 29 lighting effects, with one 4-pin RGB header, two 3-pin RAINBOW LED headers, and four EZ Debug LEDs for troubleshooting. The 6-layer, 2 oz copper PCB measures 24.4 cm × 24.4 cm (standard Micro-ATX). The board ships with a pre-installed I/O shield and carries a 3-year manufacturer warranty. Key Verified Specifications: - Form Factor: Micro-ATX, 244 mm × 244 mm - Socket / Chipset: LGA1200 / Intel Z590 - CPU Support: 10th & 11th Gen Intel Core, Pentium Gold, Celeron - Memory: 4× DDR4, up to 128 GB, up to 5333 MHz (OC) - PCIe: x16 slot at PCIe 4.0 (11th Gen CPU) or 3.0 (10th Gen); 1× PCIe 3.0 x1 - Storage: 2× M.2 (PCIe 4.0 x4 + PCIe 3.0 x4/SATA), 6× SATA 6 Gb/s - USB: 1× 20 Gbps Type-C, 2× 10 Gbps, 6× 5 Gbps, 6× USB 2.0 - Wireless: Intel AX210 Wi-Fi 6E, Bluetooth 5.2 - LAN: Intel I225V 2.5 Gbps - Audio: Realtek ALC4080, 7.1-channel HD, S/PDIF out - Warranty: 3 years
