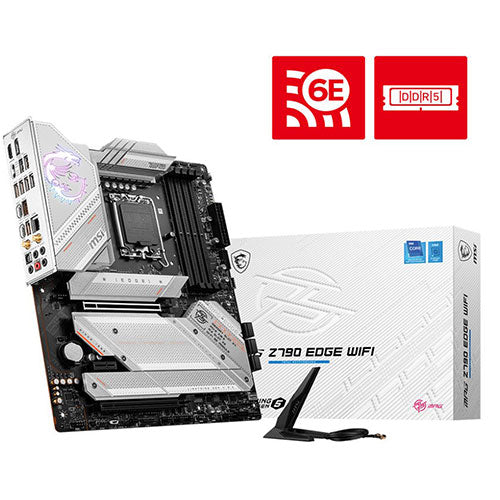

Features of MSI MPG Z790 Edge Wifi DDR5 Intel Motherboard
BE AHEAD, POP YOUR STYLE
The MSI MPG Z790 Edge Wifi DDR5 series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
16 PHASES MIRRORED POWER ARANGEMENT
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z790 EDGE WIFI is ready for the challenge of high-end processors.
DIY FRIENDLY
The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 CARBON WIFI is ready to deliver the world class memory performance.
BIOS & SOFTWARE
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.

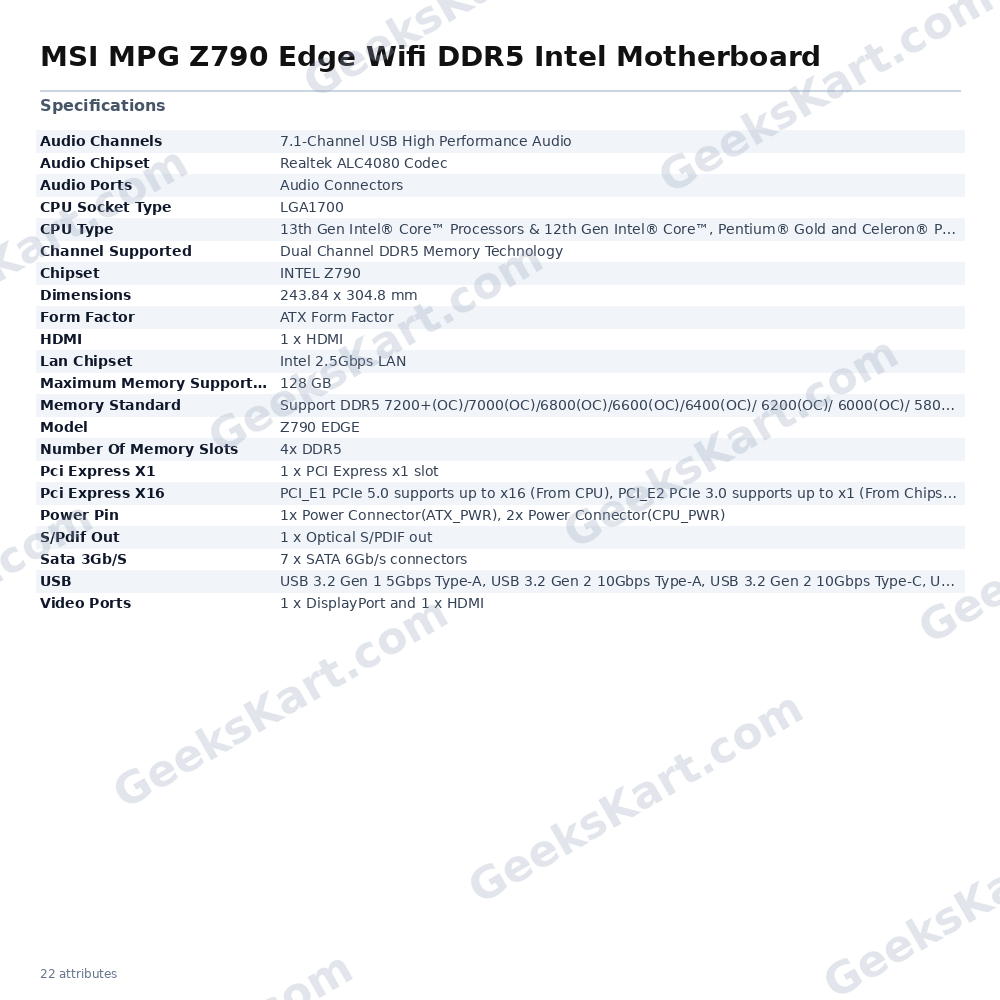

Specifications of MSI MPG Z790 Edge Wifi DDR5 Intel Motherboard
| Model | |
| Brand | MSI |
| Model | Z790 EDGE |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipsets | |
| Chipset | INTEL Z790 |
| Memory | |
| Number of Memory Slots | 4x DDR5 |
| Memory Standard | Support DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Maximum Memory Supported | 128 GB |
| Channel Supported | Dual Channel DDR5 Memory Technology |
| Expansion Slots | |
| PCI Express x1 | 1 x PCI Express x1 slot |
| PCI Express x16 | PCI_E1 PCIe 5.0 supports up to x16 (From CPU), PCI_E2 PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage Devices | |
| SATA 3Gb/s | 7 x SATA 6Gb/s connectors |
| Onboard Video | |
| Onboard Video Chipset | N/A |
| Onboard Audio | |
| Audio Channels | 7.1-Channel USB High Performance Audio |
| Audio Chipset | Realtek ALC4080 Codec |
| Onboard LAN | |
| LAN Chipset | Intel 2.5Gbps LAN |
| Rear Panel Ports | |
| USB | USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-C, USB 3.2 Gen 2×2 20Gbps Type-C |
| S/PDIF Out | 1 x Optical S/PDIF out |
| Audio Ports | Audio Connectors |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| HDMI | 1 x HDMI |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | ATX Form Factor |
| Power Pin | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR) |
| Dimensions | 243.84 x 304.8 mm |
