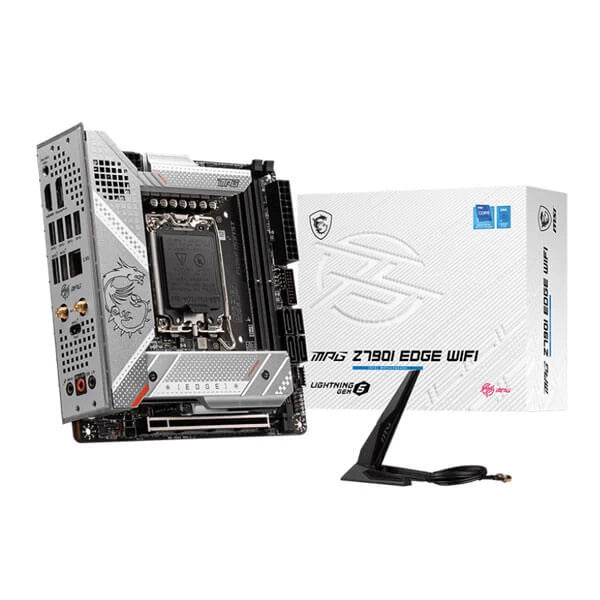

Features Of MSI MPG Z790I Edge Wifi
- MSI MPG Z790I Edge Wifi Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 8000+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 12-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Cooling
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Frozr Heatsink
The active cooling solution is ready to release the maximum performance.
Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
MOSFET Baseplate
Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
M.2 Shield Frozr with Chipset Heatsink
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790I EDGE WIFI is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.

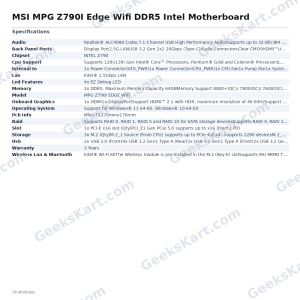

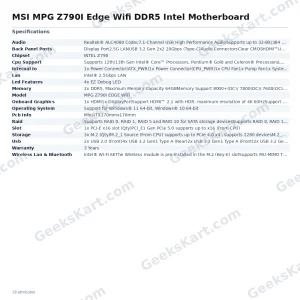

Specifications Of MSI MPG Z790I Edge Wifi
| Model | MPG Z790I EDGE WIFI |
| Chipset | INTEL Z790 |
| CPU Support | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 64GB Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz |
| Slot | 1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Storage | 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280 devices 4x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Intel® 2.5Gbps LAN |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen 2×2 Type C ports |
| LED Features | 4x EZ Debug LED |
| Back Panel Ports | Display Port 2.5G LAN USB 3.2 Gen 2×2 20Gbps (Type-C) Audio Connectors Clear CMOS HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | Mini-ITX 170mmx170mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
