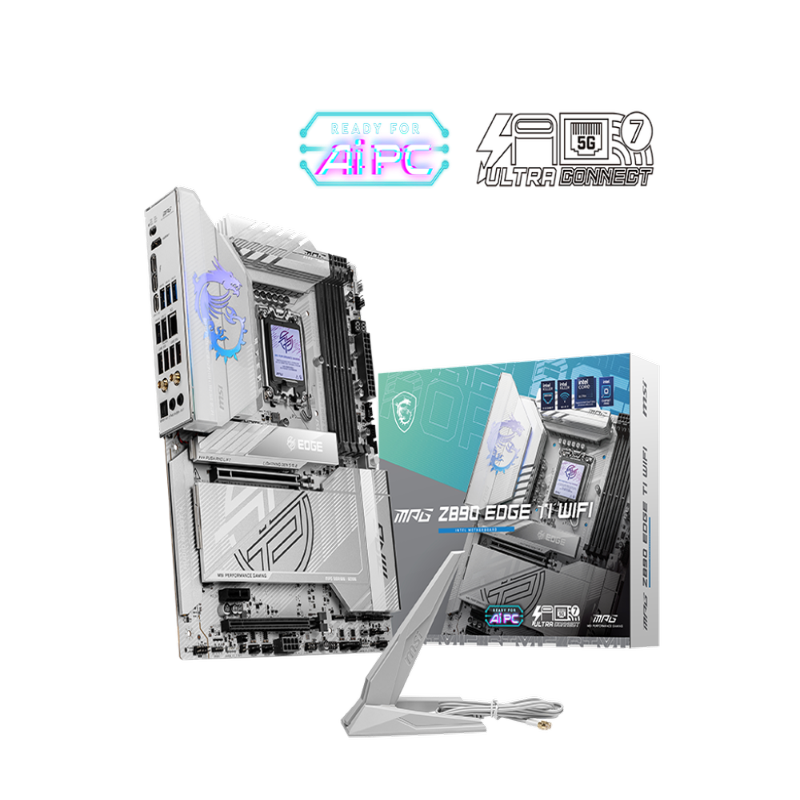

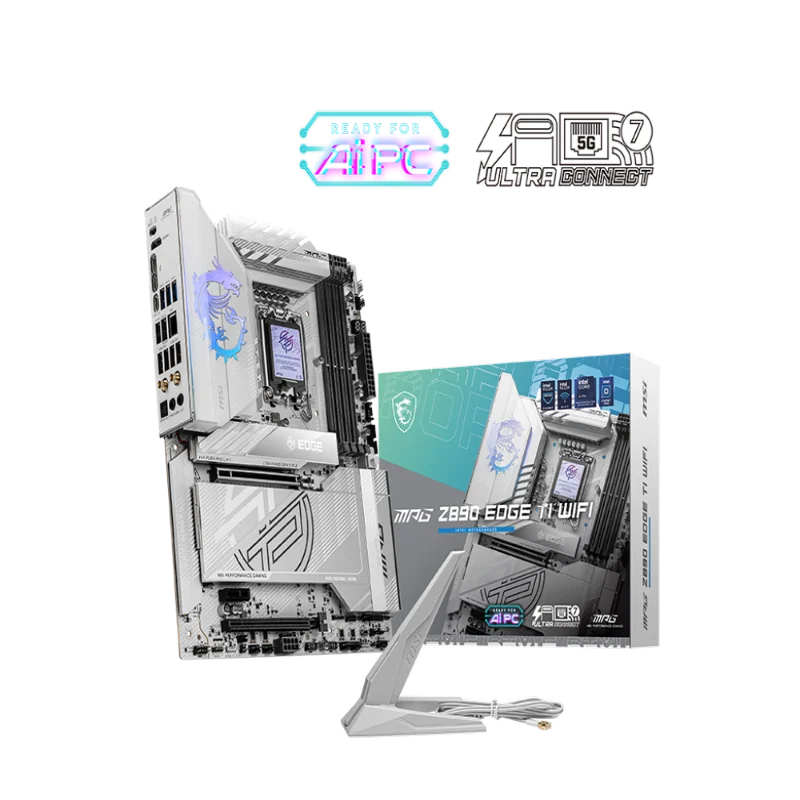

MSI MPG Z890 Edge Ti Wifi DDR5 Intel Motherboard ( White )

The MSI MPG Z890 Edge Ti WiFi is a full-size ATX motherboard built on the Intel Z890 chipset and designed for Intel Core Ultra Series 2 processors using the LGA 1851 socket. Its silver-white aesthetic makes it a natural centrepiece for white-themed builds, pairing clean visual lines with a feature set aimed at enthusiast gamers and content creators who want top-tier connectivity without compromise. At the heart of its power delivery sits a 16+1+1+1 Duet Rail Power System fed by dual 8-pin CPU connectors and backed by an 8-layer PCB constructed from 2 oz thickened copper. This robust VRM design is complemented by MSI's Frozr Guard thermal solution, which uses an enlarged heatsink with heat-pipe routing, 7 W/mK MOSFET thermal pads, additional choke thermal pads, and M.2 Shield Frozr covers to keep both the CPU power stages and fast NVMe drives running at stable temperatures during extended sessions. Memory support spans four DDR5 UDIMM slots with a combined maximum capacity of 256 GB. With a single DIMM per channel in single-rank configuration, the board can reach 9200+ MT/s (OC) under Intel XMP 3.0 profiles, while JEDEC speeds start at 4800 MT/s. CUDIMM support is also present for users targeting the highest bandwidth configurations. Storage flexibility comes from five M.2 slots — the primary slot connects directly to the CPU and supports PCIe 5.0 x4 speeds — alongside four SATA 6 Gbps ports. RAID 0, 1, 5, and 10 are available for both SATA and NVMe arrays. The primary PCIe x16 slot runs at Gen 5 directly from the CPU, enabling next-generation GPU bandwidth. Connectivity is a standout area. The Intel Killer BE1750x Wi-Fi 7 module supports tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz (up to 320 MHz channel width), reaching up to 5.8 Gbps and adding MLO and 4KQAM capabilities. A wired Intel Killer E5000B 5G LAN port covers high-speed Ethernet. Thunderbolt 4 ports on the rear I/O support DisplayPort 2.1 with UHBR20 over USB Type-C, achieving up to 8K at 60 Hz. The onboard HDMI 2.1 (FRL) port also supports up to 8K at 60 Hz from the integrated processor graphics. Audio is handled by a Realtek ALC1220P codec delivering 7.1-channel high-definition output with S/PDIF. USB provisioning is comprehensive: the rear panel carries 1× USB 2.0, 4× USB 5 Gbps Type-A, 4× USB 10 Gbps Type-A, and 1× USB 10 Gbps Type-C. Internally, there is a USB 20 Gbps Type-C front-panel header (with 27 W USB PD fast charging), 2× USB 5 Gbps, and 4× USB 2.0 headers. RGB enthusiasts will find three ARGB V2 headers and one standard RGB header on board. Verified Specifications: - Chipset: Intel Z890 - Socket: LGA 1851 (Intel Core Ultra Series 2) - Form Factor: ATX - Memory: 4× DDR5 UDIMM; max 256 GB; up to 9200+ MT/s (OC) / 4800 MT/s (JEDEC); XMP 3.0; CUDIMM supported - PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x1 (Chipset), 1× PCIe 4.0 x4 (Chipset) - Storage: 5× M.2 (1× PCIe 5.0 x4, 4× PCIe 4.0 x4 / SATA); 4× SATA 6 Gbps - Wireless: Intel Killer BE1750x Wi-Fi 7 (802.11be), Bluetooth 5.4 - LAN: Intel Killer E5000B 5G - Audio: Realtek ALC1220P, 7.1-channel HD, S/PDIF out - Display Out: 1× HDMI 2.1 (8K@60Hz), 2× Thunderbolt 4 USB Type-C (DP 2.1 UHBR20) - OS Support: Windows 11 64-bit
