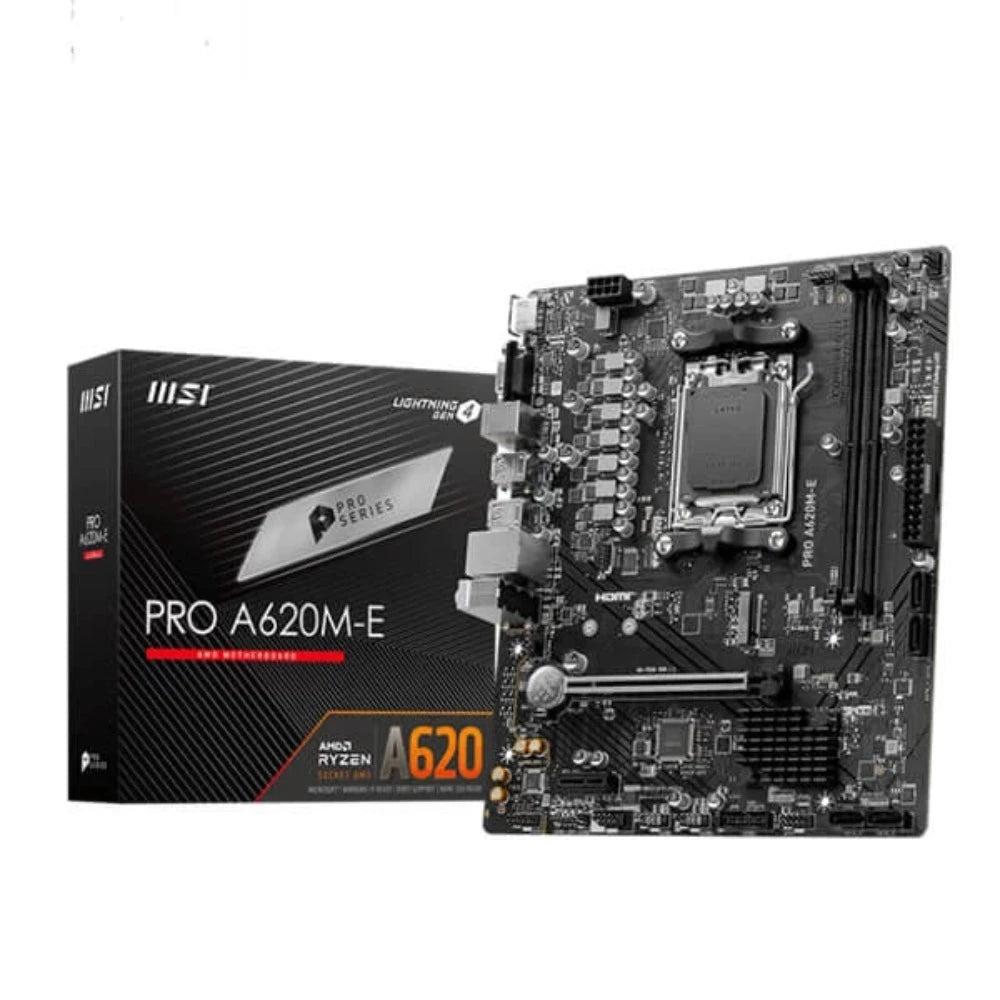

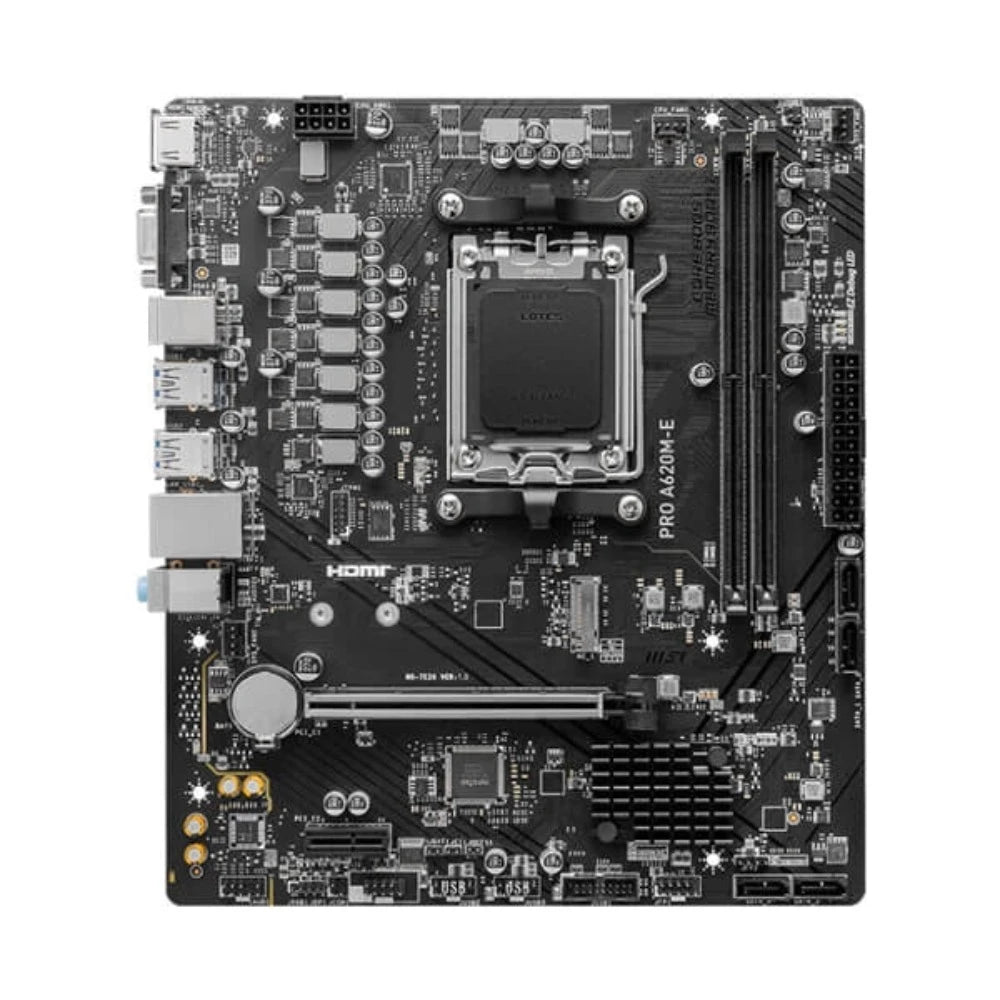

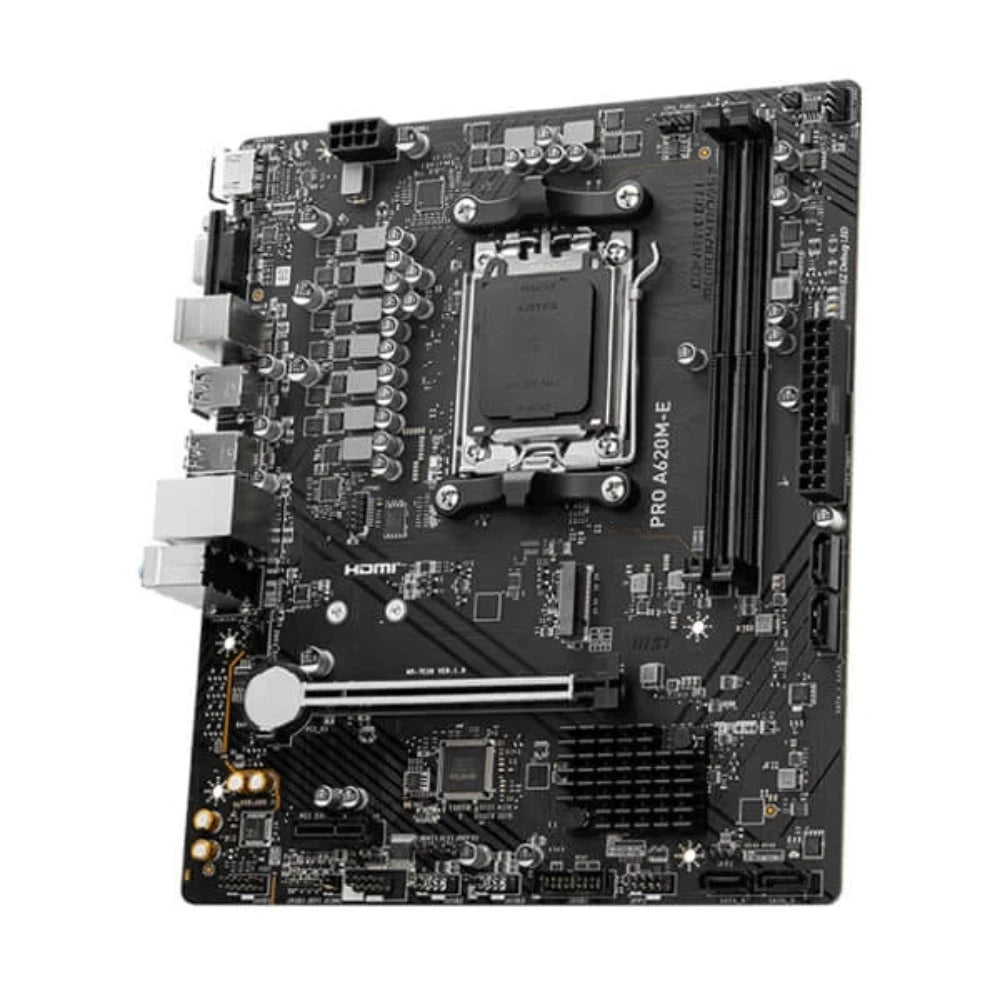

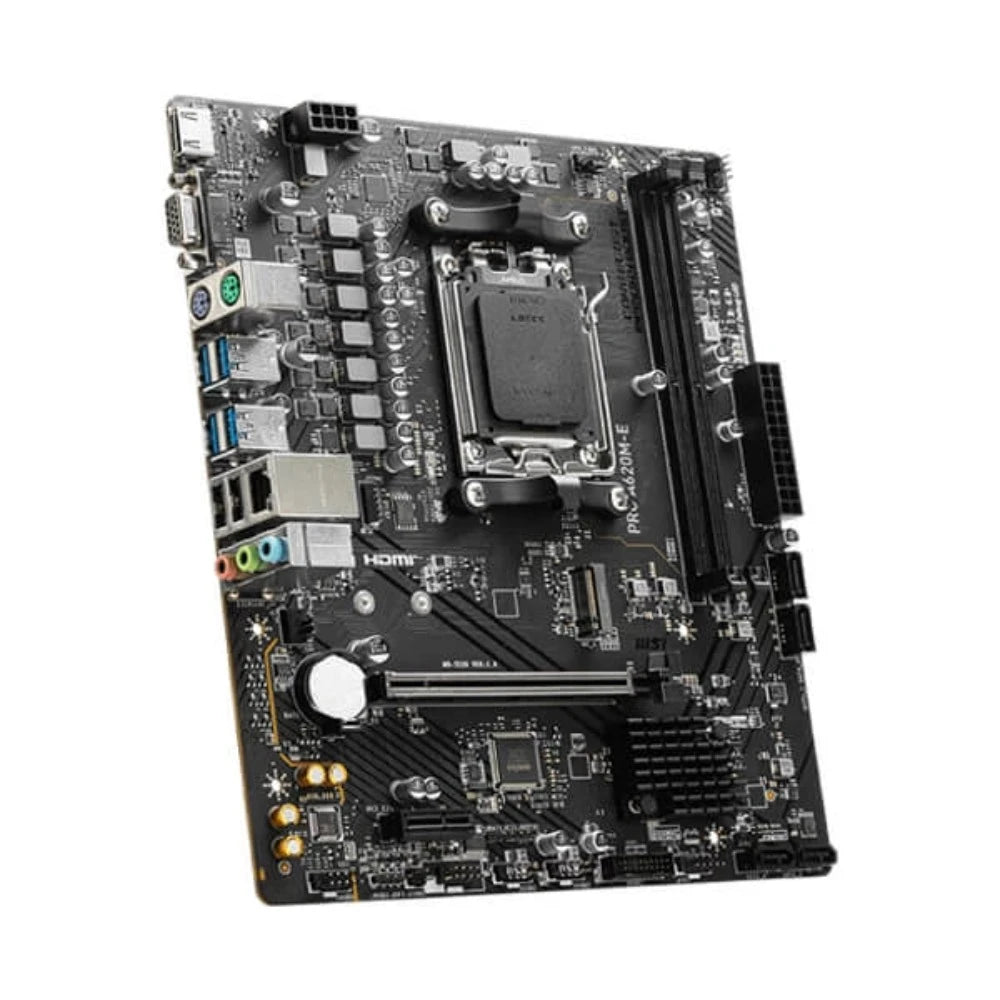

MSI Pro A620M-E DDR5 AMD Motherboard

The MSI Pro A620M-E is a Micro-ATX motherboard built on the AMD A620 chipset, designed for AMD Ryzen 7000 Series Desktop Processors on the AM5 (LGA1718) socket. It brings DDR5 memory support and PCIe 4.0 connectivity to a compact, value-oriented form factor, making it a practical foundation for productivity and everyday computing builds. The board accommodates two DDR5 DIMM slots with a maximum capacity of 96 GB. Memory can run at the JEDEC standard speed of 4800 MHz or be overclocked via AMD EXPO profiles to 5000, 5200, 5400, 5600, 5800, or 6000+ MHz. MSI’s SMT (Surface Mount Technology) welding process on the DIMM slots is designed to reduce solder-joint defects and electromagnetic interference, helping maintain signal integrity at higher frequencies. For expansion, the board provides one PCIe 4.0 x16 slot sourced directly from the CPU and one PCIe 3.0 x1 slot from the chipset. Storage options include a single M.2 slot (PCIe 4.0 x4, sourced from CPU, supporting 2280 and 2260 form factors) alongside four SATA 6 Gb/s ports. The SATA ports support RAID 0, RAID 1, and RAID 10 configurations. Display output is handled via one HDMI 2.1 port (up to 4K at 60 Hz) and one VGA port when using a Ryzen processor with integrated graphics. Networking is provided by a Realtek RTL8111H Gigabit LAN controller. Audio uses a Realtek ALC897 codec delivering 7.1-channel high-definition audio. Note that the source description mentions Wi-Fi 6E and Bluetooth 5.3, but the verified specification table lists only the RTL8111H Gigabit LAN — wireless connectivity has not been confirmed in the structured specifications and is flagged for review. USB connectivity includes 2× USB 2.0 and 4× USB 3.2 Gen 1 Type-A ports on the rear I/O, plus internal headers for 4× USB 2.0 and 2× USB 3.2 Gen 1 Type-A front-panel ports. Debug tools include four EZ Debug LEDs, one JRGB header for addressable RGB accessories, and a TPM 2.0 pin header for security compliance. The board supports Windows 11 and Windows 10 (64-bit) and carries a 3-year manufacturer warranty. Verified Specifications: • Chipset: AMD A620 • Socket: AM5 (AMD Ryzen 7000 Series) • Form Factor: mATX — 211 mm × 243.84 mm • Memory: 2× DDR5 DIMM, max 96 GB, 4800 MHz JEDEC / up to 6000+ MHz OC (AMD EXPO) • PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (chipset) • Storage: 1× M.2 PCIe 4.0 x4 (CPU, 2280/2260), 4× SATA 6 Gb/s; RAID 0/1/10 • Display: 1× HDMI 2.1 (4K 60 Hz), 1× VGA • LAN: Realtek RTL8111H Gigabit Ethernet • Audio: Realtek ALC897, 7.1-channel HD Audio • USB Rear: 2× USB 2.0, 4× USB 3.2 Gen 1 Type-A • OS Support: Windows 11 / Windows 10 (64-bit) • Warranty: 3 Years
