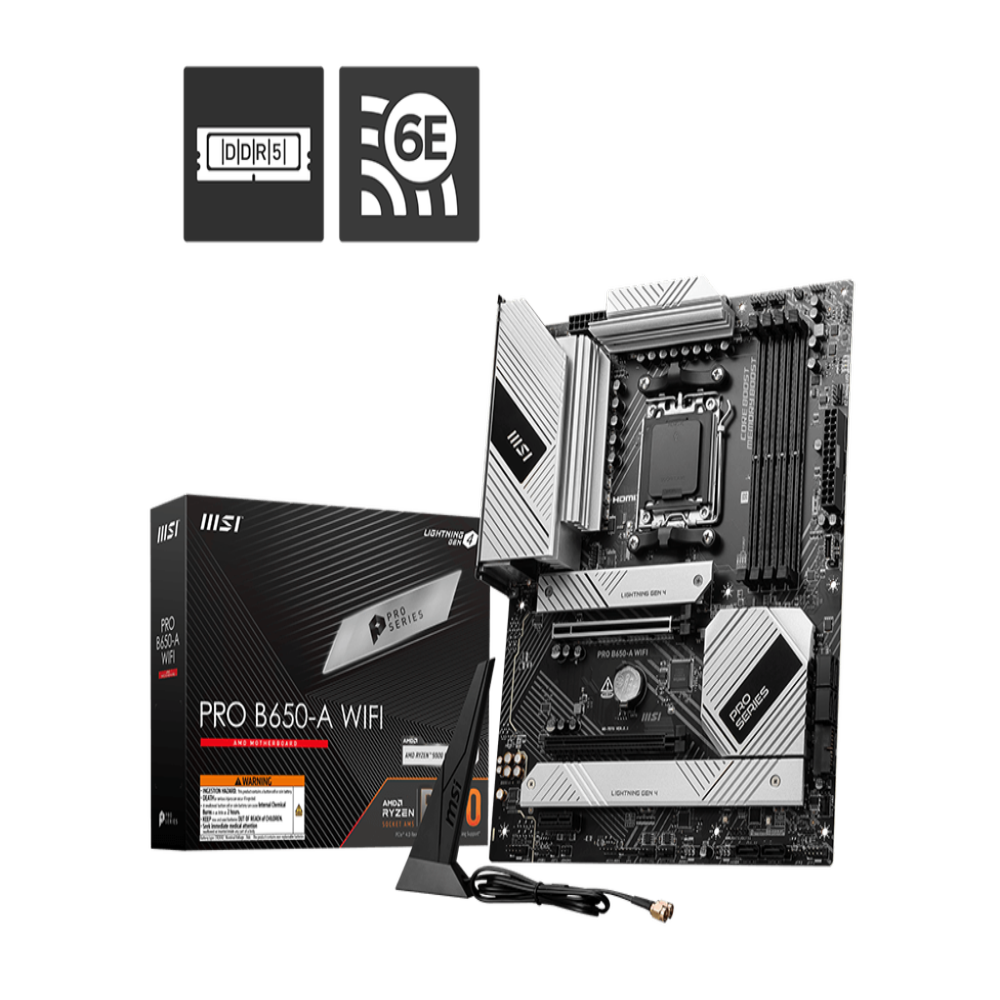

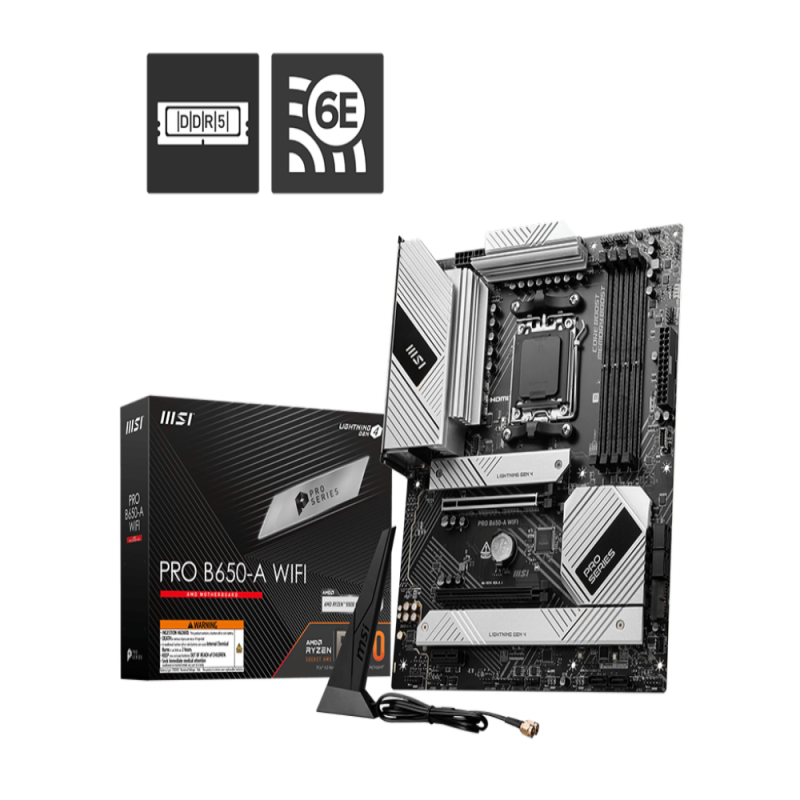

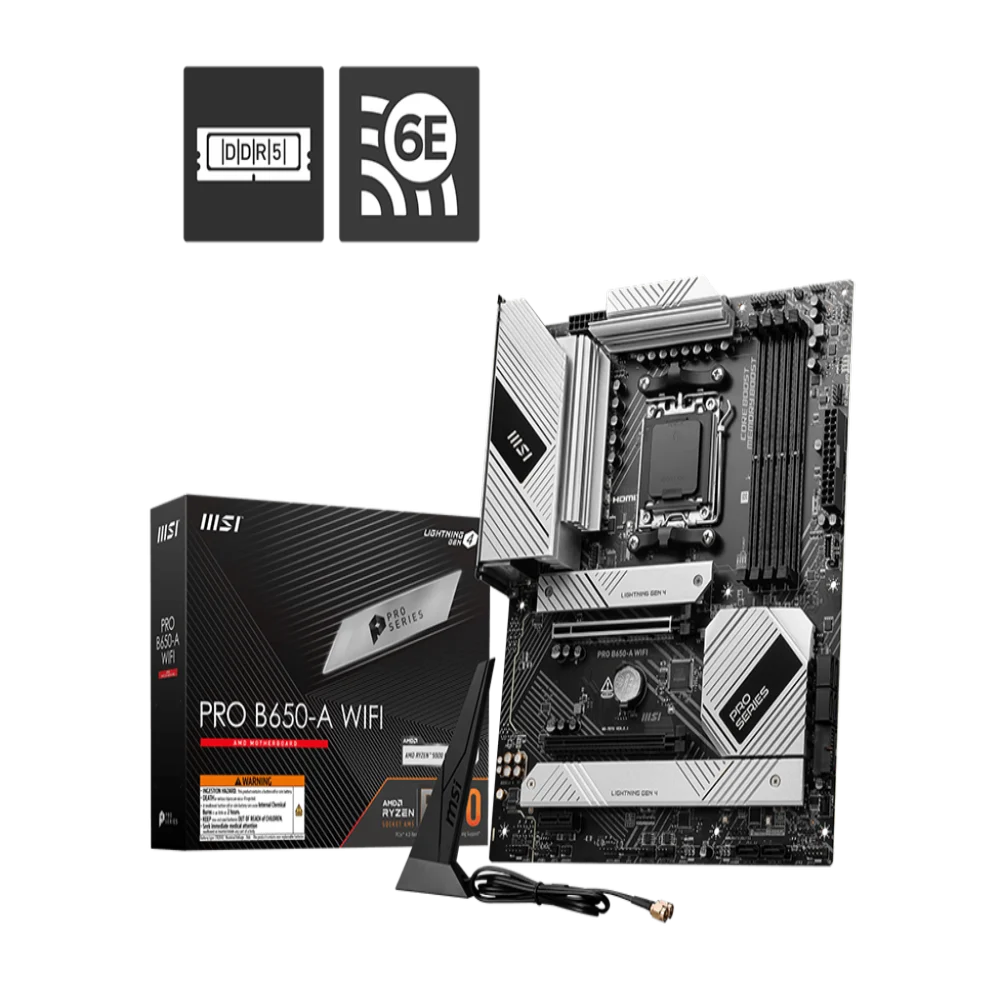

MSI PRO B650-A WIFI DDR5 AMD Motherboard

The MSI PRO B650-A WIFI is a full-featured ATX motherboard built on the AMD B650 chipset for the AM5 socket platform. Designed for professionals and productivity-focused builders, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, giving you a clear upgrade path without swapping platforms. Memory flexibility is a highlight: four DDR5 DIMM slots support up to 256 GB of non-ECC, unbuffered memory with JEDEC baseline at DDR5-4800 and overclocked profiles reaching DDR5-7600+ in a single-DIMM-per-channel, single-rank configuration. AMD EXPO support makes one-click memory tuning straightforward in the UEFI. For storage, three M.2 slots — two sourced from the CPU at PCIe 4.0 x4 speed, one from the chipset also at PCIe 4.0 x4 — are complemented by six SATA 6 Gb/s ports. RAID 0, 1, and 10 configurations are available for both SATA and NVMe M.2 arrays. The primary M.2 slot is covered by MSI's M.2 Shield Frozr thermal solution to manage SSD temperatures under sustained workloads. Power delivery uses a 14+2 DRPS design with 80A SPS power stages and dual 8-pin CPU power connectors, backed by a 6-layer PCB with 2 oz thickened copper traces. Thermal management is reinforced by an extended VRM heatsink, 7 W/mK MOSFET thermal pads, and additional choke thermal pads — all aimed at maintaining stable performance during long, multi-threaded sessions. Connectivity is comprehensive. Networking is handled by AMD Wi-Fi 6E (802.11ax, tri-band 2.4/5/6 GHz, MU-MIMO TX/RX, up to 160 MHz channel width, Bluetooth 5.3) alongside a Realtek RTL8125B 2.5 Gbps wired LAN port. The rear USB panel includes one USB 20 Gbps Type-C, three USB 10 Gbps Type-A, four USB 5 Gbps Type-A, and two USB 2.0 ports. Internal headers add four USB 2.0, two USB 5 Gbps Type-A, and one USB 10 Gbps Type-C front-panel port. Display output for iGPU-equipped processors is handled via one HDMI 2.1 (4K 60 Hz with HDR) and one DisplayPort 1.4 (8K 60 Hz with HBR3) on the rear panel. Audio is powered by a Realtek ALC4080 codec delivering 7.1-channel HD audio with S/PDIF output and up to 32-bit/384 kHz front-panel playback. Four EZ Debug LEDs aid troubleshooting during POST, while two ARGB V2 and two standard RGB headers support case lighting ecosystems. Verified Specifications: - Chipset: AMD B650 - Socket: AM5 - CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series - Memory: 4x DDR5 DIMM, max 256 GB, DDR5-4800 (JEDEC) to DDR5-7600+ (OC), AMD EXPO - VRM: 14+2 DRPS, 80A SPS, dual 8-pin CPU power - PCB: 6-layer, 2 oz copper - PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x2 (chipset), 1x PCIe 3.0 x1 (chipset) - M.2: 3x (2x PCIe 4.0 x4 from CPU, 1x PCIe 4.0 x4 from chipset) - SATA: 6x SATA 6 Gb/s; RAID 0/1/10 supported - LAN: Realtek RTL8125B 2.5 Gbps - Wi-Fi: AMD Wi-Fi 6E (802.11a/b/g/n/ac/ax), MU-MIMO, 160 MHz bandwidth - Bluetooth: 5.3 - Audio: Realtek ALC4080, 7.1-channel, 32-bit/384 kHz - Rear USB: 1x 20 Gbps Type-C, 3x 10 Gbps Type-A, 4x 5 Gbps Type-A, 2x USB 2.0 - Video Out: 1x HDMI 2.1 (4K 60 Hz), 1x DisplayPort 1.4 (8K 60 Hz) — iGPU only - Debug: 4x EZ Debug LED - RGB: 2x ARGB V2, 2x RGB headers
