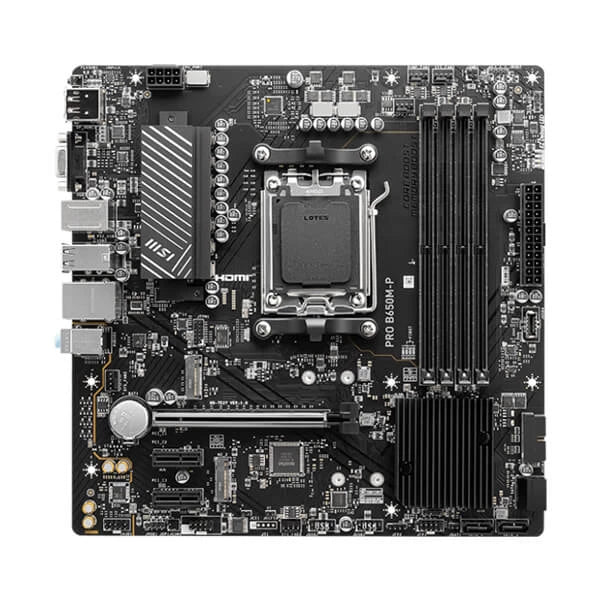

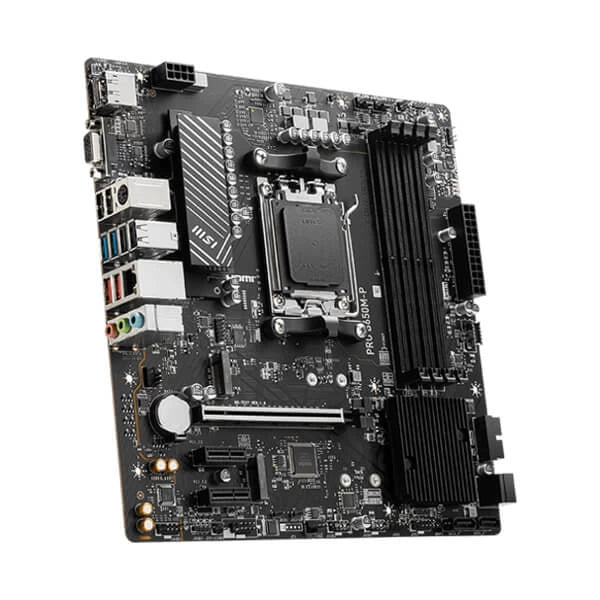

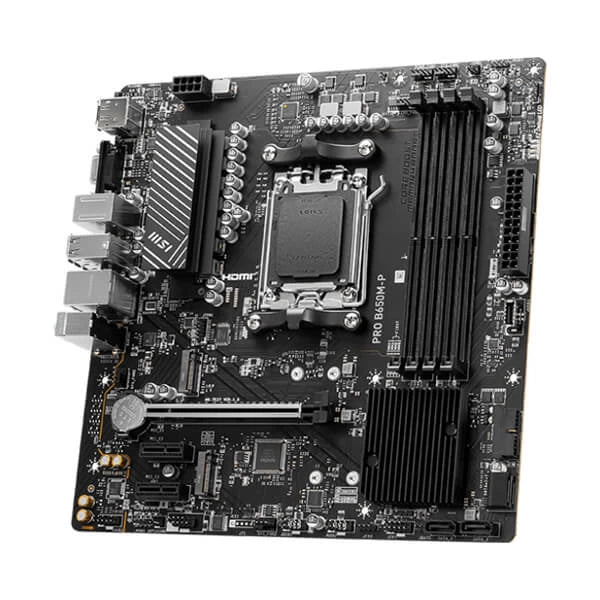

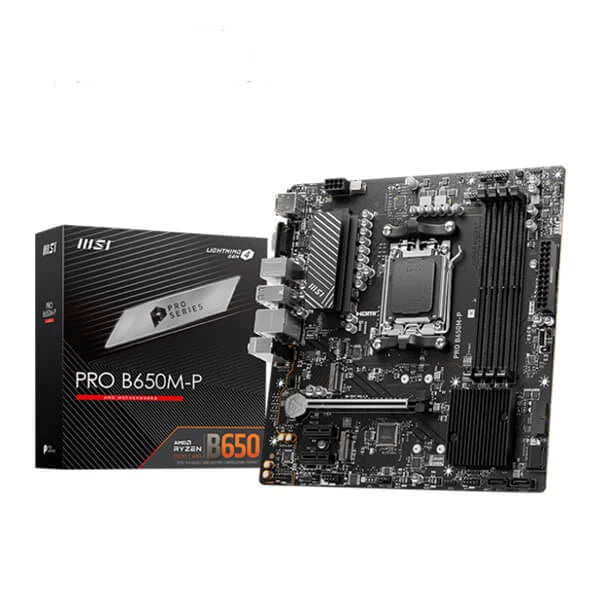

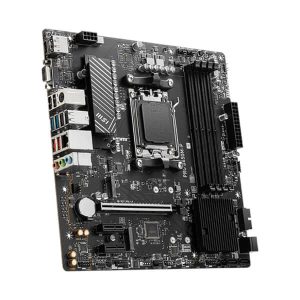

Features Of MSI Pro B650M-P
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- MSI Pro B650M-P DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Heavy Plated VRM Heatsink
The VRM heatsink covers the MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

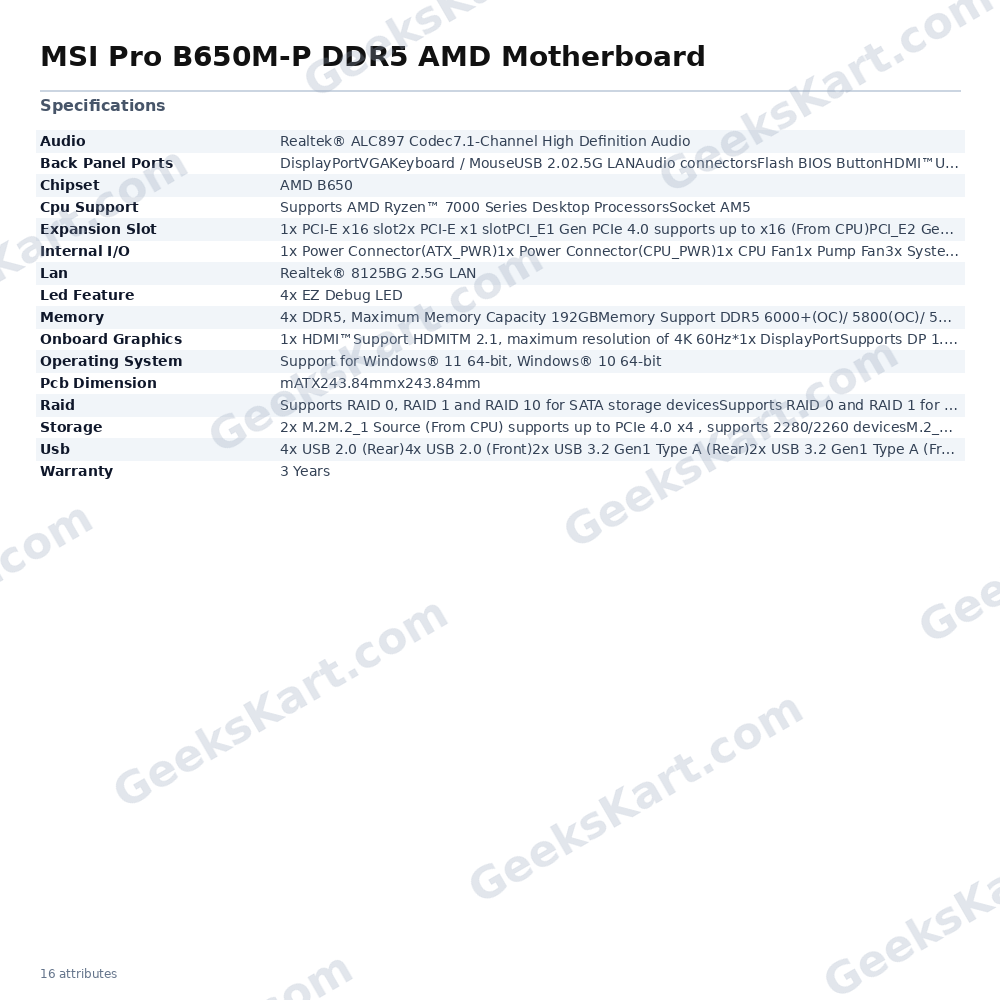

Specifications Of MSI Pro B650M-P
| Chipset | AMD B650 |
| CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics |
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 1920×1200 60Hz |
| EXPANSION SLOT |
1x PCI-E x16 slot
2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN |
Realtek® 8125BG 2.5G LAN
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Internal I/O |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LED FEATURE |
4x EZ Debug LED
|

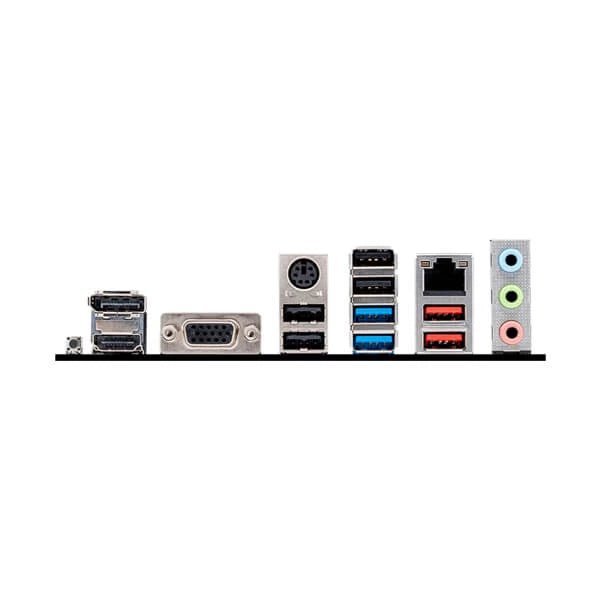

| BACK PANEL PORTS |
DisplayPort
VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
| PCB Dimension |
mATX
243.84mmx243.84mm |
| Warranty | 3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
