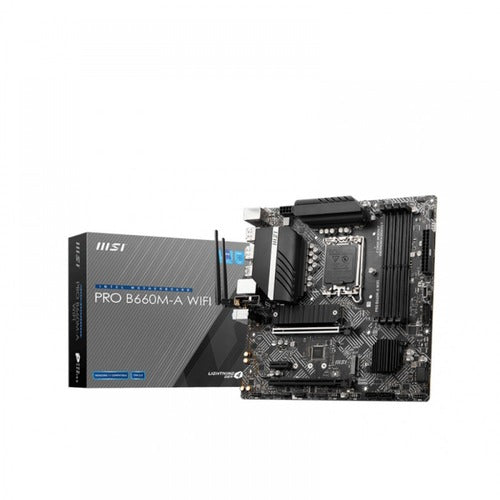

MSI Pro B660M-A Wifi DDR5 Intel Motherboard
MPN MSI-PRO_B660MA-WIFI-D5 · Brand MSI
The MSI Pro B660M-A WiFi DDR5 is a Micro-ATX motherboard for 12th Gen Intel LGA 1700 CPUs, featuring Intel B660 chipset, PCIe 4.0, dual M.2 slots with heatsinks, Intel Wi-Fi 6, 2.5G LAN, and support for up to 128 GB DDR5 at 6200+ MHz (OC)
Inclusive of GST · GST invoice available
Overview
The MSI Pro B660M-A WiFi DDR5 is a Micro-ATX motherboard designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA 1700 socket. Built on the Intel B660 chipset, it brings a well-rounded feature set to productivity-focused and mainstream desktop builds without unnecessary complexity. Memory support is a strong suit: four DDR5 slots accommodate up to 128 GB of non-ECC, unbuffered RAM. JEDEC baseline speed is 4800 MHz (1R), while XMP overclocking profiles push single-rank modules to 6200+ MHz and dual-rank configurations to 5200+ MHz at 1 DPC. Dual-channel operation is fully supported, and Intel Extreme Memory Profile (XMP) can be enabled directly through the BIOS. Storage flexibility comes from two M.2 Key-M slots — both supporting PCIe 4.0 x4 — paired with M.2 Shield Frozr heatsinks that help maintain SSD performance under sustained loads. Four SATA 6 Gb/s ports are also available, and RAID 0, 1, 5, and 10 configurations are supported for SATA arrays. The primary PCIe x16 slot (from CPU) runs at PCIe 4.0 x16, with a second x16-physical slot from the chipset running at PCIe 3.0 x4. Networking is handled by a Realtek RTL8125BG 2.5 Gbps wired LAN controller and a pre-installed Intel Wi-Fi 6 module (802.11ax) supporting 2.4 GHz and 5 GHz bands at up to 160 MHz channel width, delivering up to 2.4 Gbps theoretical throughput. MU-MIMO TX/RX and OFDMA are included. Bluetooth 5.2 is bundled with the wireless module. Video output on the rear panel includes two HDMI 2.1 ports (4K 60 Hz with HDR) and two DisplayPort 1.4 outputs (4K 60 Hz, HBR3), useful for integrated-graphics workloads on compatible CPUs. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel high-definition audio. Fan control is comprehensive: one 4-pin CPU fan header, one 4-pin water-pump header (up to 3 A), and two 4-pin system fan headers are provided. RGB headers include one 4-pin RGB and two 3-pin ARGB connectors, plus four EZ Debug LEDs for quick POST diagnostics. Verified Specifications: - Form Factor: Micro-ATX, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) - Socket: LGA 1700 | Chipset: Intel B660 - Memory: 4x DDR5 slots, max 128 GB, up to 6200+ MHz (OC, 1DPC 1R) - Storage: 2x M.2 PCIe 4.0 x4 (Key-M) + 4x SATA 6 Gb/s; RAID 0/1/5/10 - GPU Slot: PCIe 4.0 x16 (CPU) + PCIe 3.0 x4 (chipset) - LAN: Realtek RTL8125BG 2.5 Gbps - Wi-Fi: Intel Wi-Fi 6 (802.11ax), 2.4/5 GHz, up to 2.4 Gbps, BT 5.2 - Audio: Realtek ALC897, 7.1-ch HD Audio - Display Out: 2x HDMI 2.1 + 2x DisplayPort 1.4 (4K 60 Hz) - USB (rear): USB 3.2 Gen 2 10 Gbps Type-A, USB 3.2 Gen 1 5 Gbps Type-A, USB 2.0 - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® B660 Chipset |
| CPU Type | Supports 12th Gen Intel® CoreTM ProcessorsProcessor socket LGA1700 |
| Lan | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 4x DDR5 memory slots,support up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 6200+ MHz1DPC 2R Max speed up to 5200+ MHz2DPC 1R Max speed up to 4000+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Jumpers | 1x Clear CMOS jumper |
| Storage | 4x SATA 6Gb/s ports (From B660 chipset)2x M.2 slots (Key M)M2_1 slot (From CPU)Supports up to PCIe 4.0 x4Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset)Supports up to PCIe 4.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupports Intel® Optane™ MemorySupport Intel® Smart Response Technology for Intel Core™ processors |
| Multi-Gpu | Supports AMD® CrossFire™ Technology |
| Dimensions | Micro-ATX Form Factor9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Led Features | 1x 4-pin RGB LED connector2x 3-pin RAINBOW LED connectors4x EZ Debug LED |
| Expansion Slot | 2x PCIe x16 slotsPCI_E1 (From CPU)Support PCIe 4.0 x16PCI_E3 (From B660 chipset)Support PCIe 3.0 x41x PCIe 3.0 x1 slot (Fom B660 chipset) |
| Fan Connectors | 1x 4-pin CPU fan connector1x 4-pin water-pump fan connector2x 4-pin system fan connectors |
| Back Panel Ports | Keyboard / MouseDisplayPortUSB 3.2 Gen 1 5Gbps Type-ALAN portAudio connectorUSB 2.0HDMIUSB 3.2 Gen 2 10Gbps Type-AWi-Fi / Bluetooth |
| Onboard Graphics | 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 22x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60Hz |
| Power Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector1x 4-pin ATX 12V power connector |
| System Connectors | 1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Tuning Controller connector1x TBT connector (supports RTD3)1x Serial port |
| Wi-Fi & Bluetooth® | Intel® Wi-Fi 6The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2 |
| Internal USB Connectors | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074)Supports additional 2 USB 3.2 Gen 1 5Gbps ports2x USB 2.0 Type-A connectors (From B660 chipset)Supports additional 4 USB 2.0 ports |
