MSI Pro B840M-P Wifi6e DDR5 AMD Motherboard
MPN MSI-B840M-GAMING-WIFI6E-DDR5-AMD · Brand MSI
The MSI PRO B840M-P WIFI6E is an AMD B840 mATX motherboard for AM5 processors (Ryzen 7000/8000/9000 series), featuring DDR5 support up to 256 GB, dual PCIe 4.0 M.2 slots, Wi-Fi 6E, 2.5G LAN, and a Direct 7+2+1 power design
Inclusive of GST · GST invoice available
Overview
The MSI PRO B840M-P WIFI6E is a compact Micro-ATX motherboard built on the AMD B840 chipset, designed for AMD Ryzen 7000, 8000, and 9000 series desktop processors using the AM5 socket. Measuring 243.84 mm × 243.84 mm, it fits standard mATX cases including the MSI PRO FORGE M051R and M051A Mini Tower options. At the heart of its power delivery is a Direct 7+2+1 digital power design paired with an 8-pin CPU power connector, providing stable voltage regulation for sustained workloads. The PCB is constructed with a 6-layer design using 2 oz thickened copper traces to support higher bandwidth and reliable signal transmission. Extended heatsinks with MOSFET thermal pads rated at 7 W/mK and additional choke thermal pads form the Frozr Guard thermal solution, keeping VRM temperatures in check during extended use. Memory support comes via four DDR5 UDIMM slots capable of holding up to 256 GB of non-ECC, unbuffered RAM. JEDEC speeds range from 4800 to 5600 MT/s, while overclocking via AMD EXPO can push compatible kits to 8000+ MT/s in a 1-DIMM-per-channel, single-rank configuration. CUDIMM support is available in clock driver bypass mode. Storage options include two M.2 slots, both sourced from the CPU and running at up to PCIe 4.0 x4, supporting 2280 and 2260 form factors. Four SATA 6 Gbps ports round out the storage connectivity, with RAID 0, 1, and 10 support for SATA devices and RAID 0/1 for M.2 NVMe drives. Wired networking is handled by a Realtek 8125D 2.5G LAN controller. Wireless connectivity comes from a pre-installed Wi-Fi 6E module occupying the M.2 Key-E slot, supporting 2.4 GHz, 5 GHz, and 6 GHz bands at up to 160 MHz channel width for speeds up to 2.4 Gbps. MU-MIMO TX/RX and Bluetooth 5.3 are also supported. The rear I/O panel offers a single HDMI 2.1 port for integrated graphics output at up to 4K 60 Hz, a USB 10 Gbps Type-A, a USB 10 Gbps Type-C, two USB 5 Gbps Type-A, four USB 2.0 ports, the 2.5G LAN jack, Wi-Fi antenna connectors, and audio jacks. Onboard audio is powered by a Realtek ALC897 codec supporting 7.1-channel HD audio. Four EZ Debug LEDs and one EZ Memory Detection LED aid in quick troubleshooting. The board carries a 3-year manufacturer warranty and officially supports Windows 11 64-bit. Key Verified Specifications: - Chipset: AMD B840 - Socket: AM5 - Form Factor: mATX (243.84 mm × 243.84 mm) - Memory: 4× DDR5 UDIMM, max 256 GB; JEDEC 4800–5600 MT/s; OC up to 8000+ MT/s (1DPC 1R) - Storage: 2× M.2 PCIe 4.0 x4 (2280/2260), 4× SATA 6 Gbps - PCIe Slots: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset) - Networking: Realtek 8125D 2.5G LAN; Wi-Fi 6E (2.4/5/6 GHz, up to 2.4 Gbps); BT 5.3 - Video Output: HDMI 2.1 (4K 60 Hz) - Audio: Realtek ALC897, 7.1-channel HD - USB (Rear): 1× USB 10G Type-C, 1× USB 10G Type-A, 2× USB 5G Type-A, 4× USB 2.0 - Power Design: Direct 7+2+1 phases, 8-pin CPU connector - OS Support: Windows 11 64-bit - Warranty: 3 Years

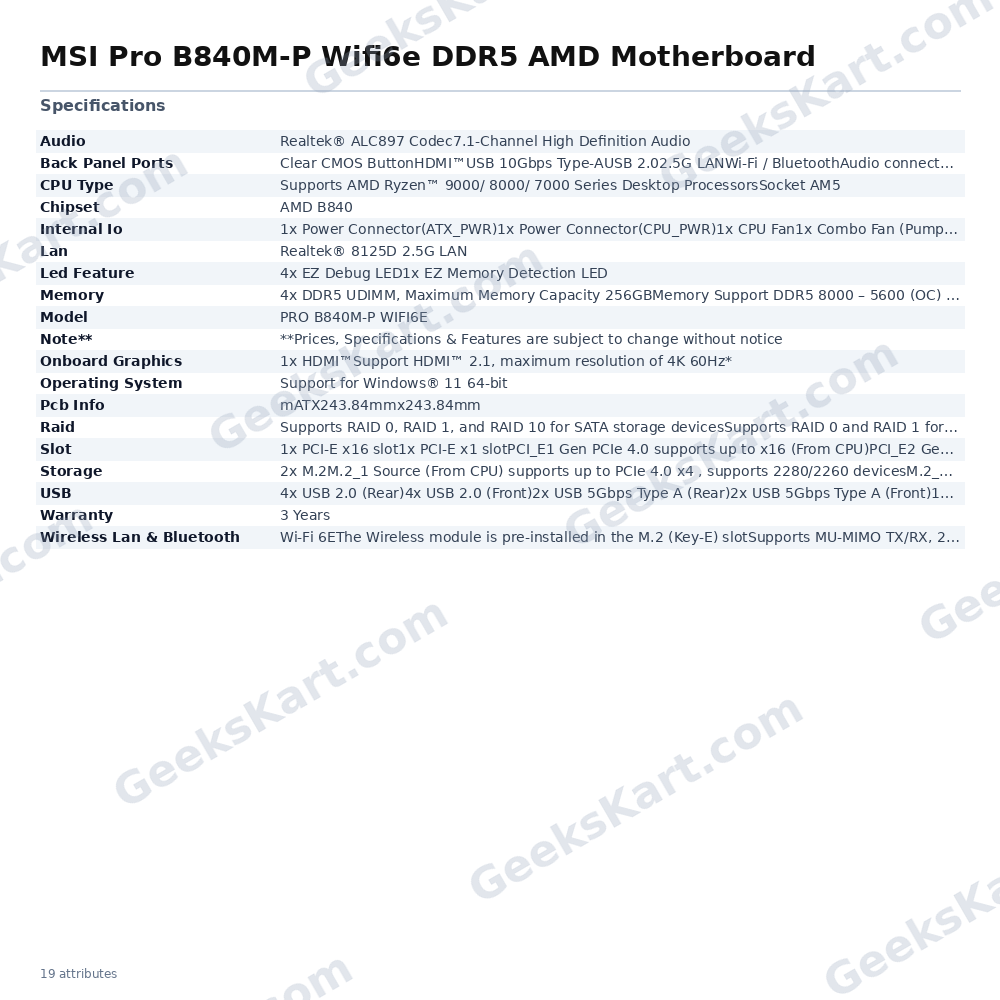

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD B840 |
| CPU Type | Supports AMD RyzenTM 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 |
| Lan | Realtek® 8125D 2.5G LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slot | 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Model | PRO B840M-P WIFI6E |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8000+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Storage | 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G |
| Pcb Info | mATX243.84mmx243.84mm |
| Internal Io | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 5Gbps Type C ports |
| Led Feature | 4x EZ Debug LED1x EZ Memory Detection LED |
| Back Panel Ports | Clear CMOS ButtonHDMI™USB 10Gbps Type-AUSB 2.02.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonUSB 10Gbps Type-CUSB 5Gbps Type-A |
| Onboard Graphics | 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Operating System | Support for Windows® 11 64-bit |
| Wireless Lan & Bluetooth | Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3**, FIPS, FISMA |
