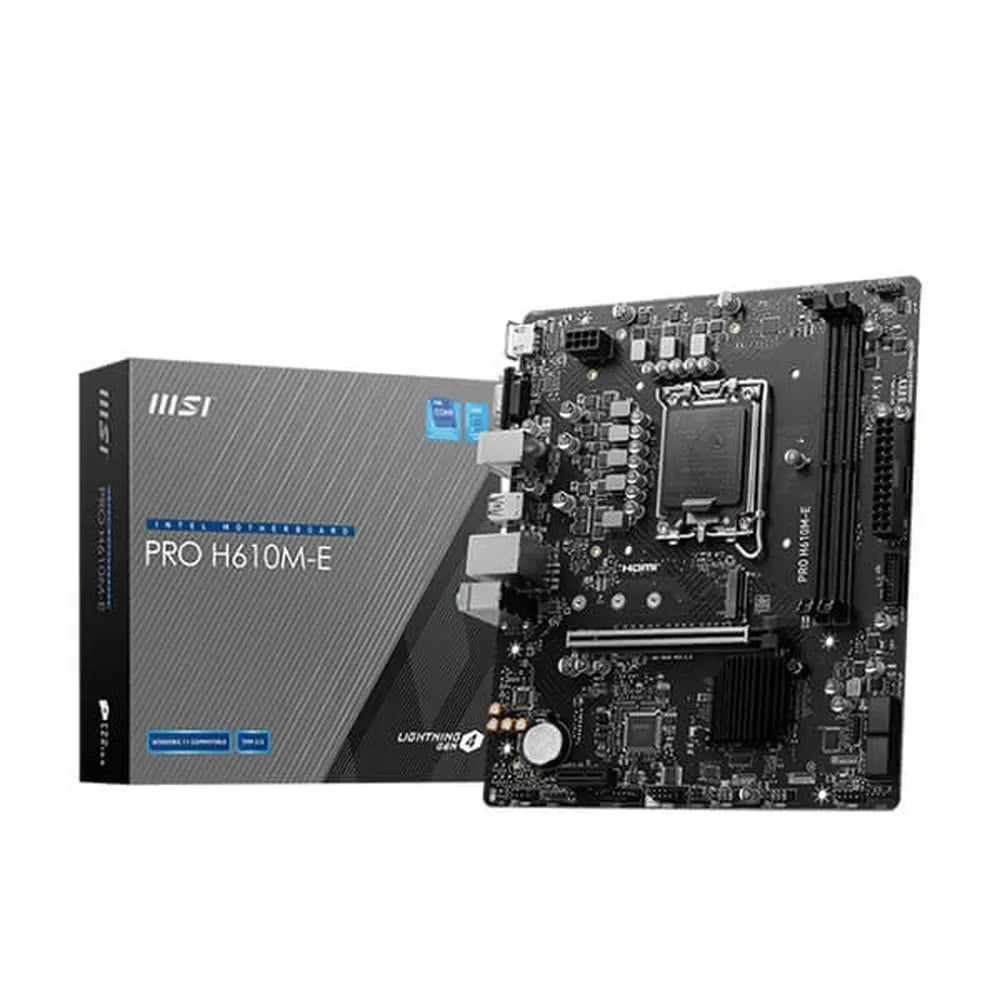

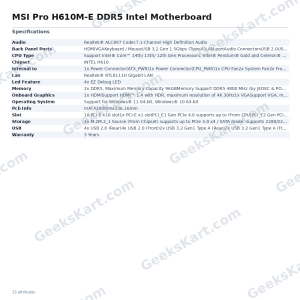

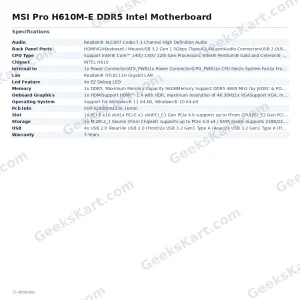

MSI Pro H610M-E DDR5 Intel Motherboard

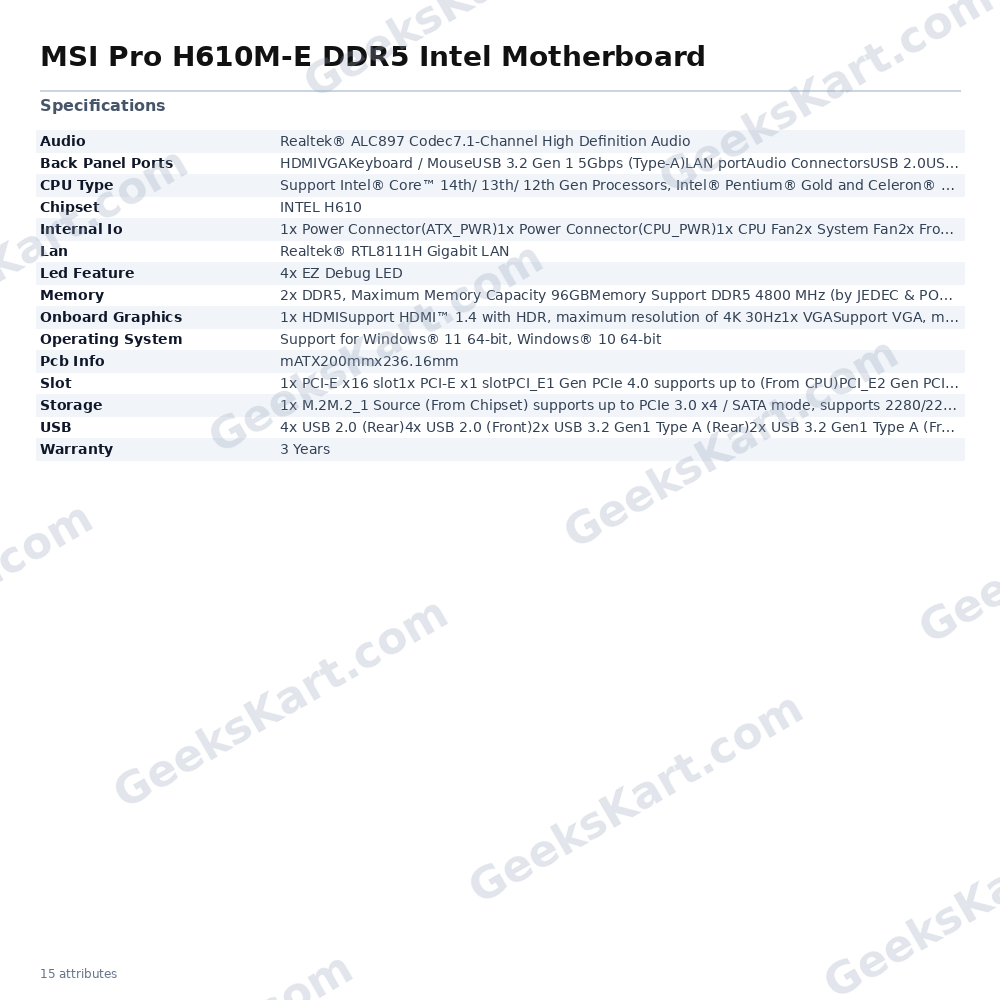

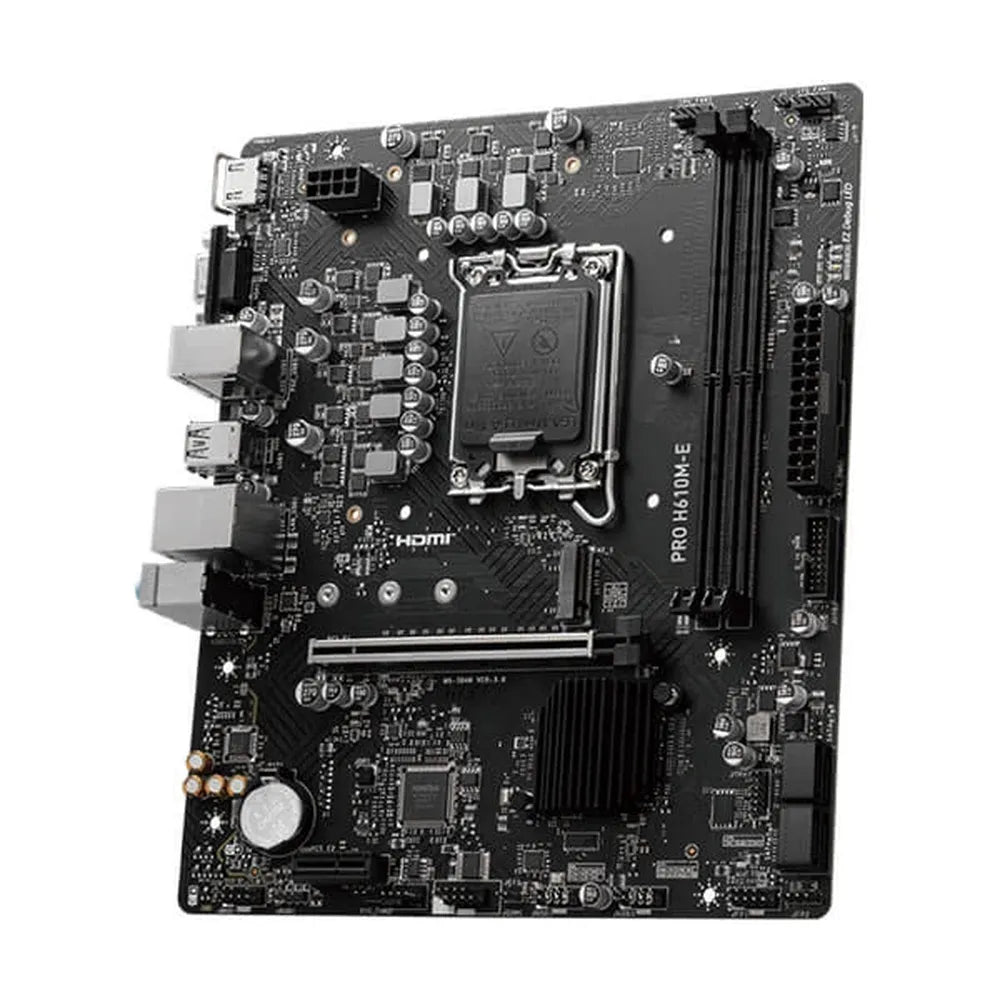

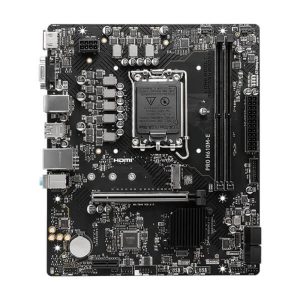

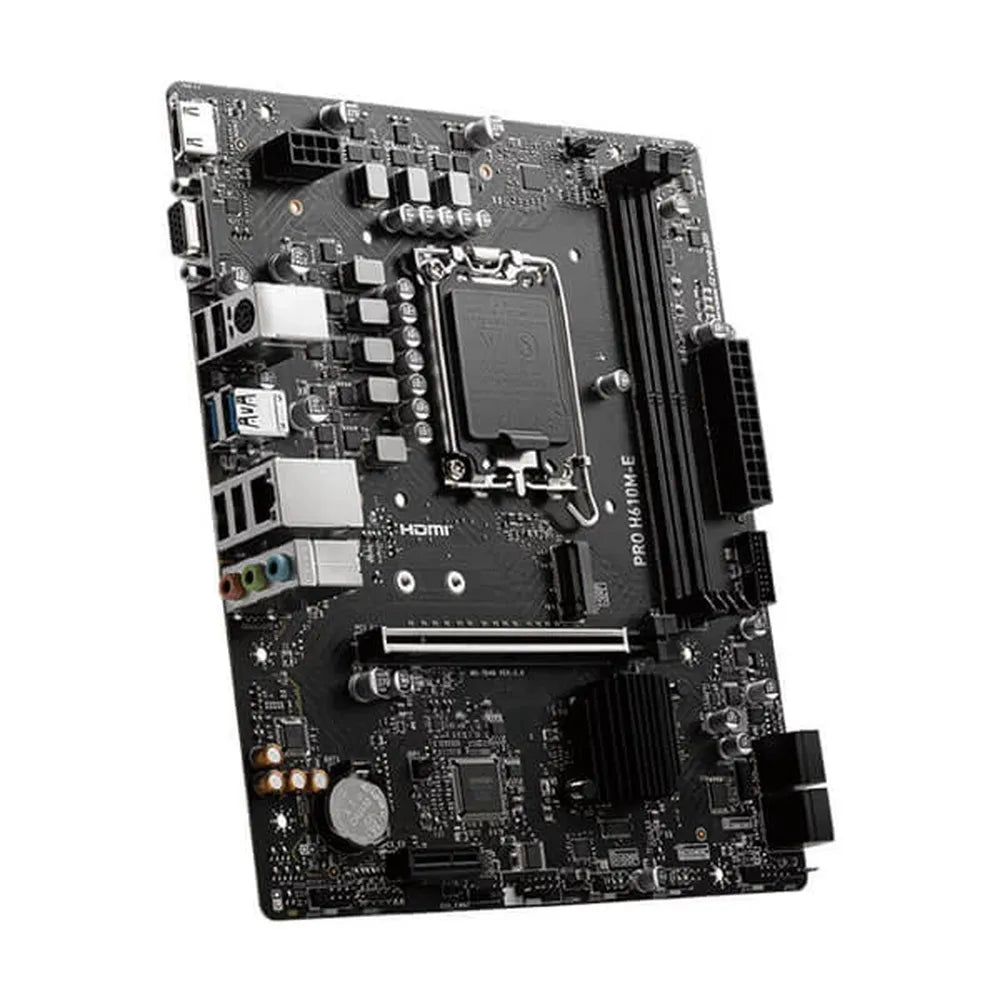

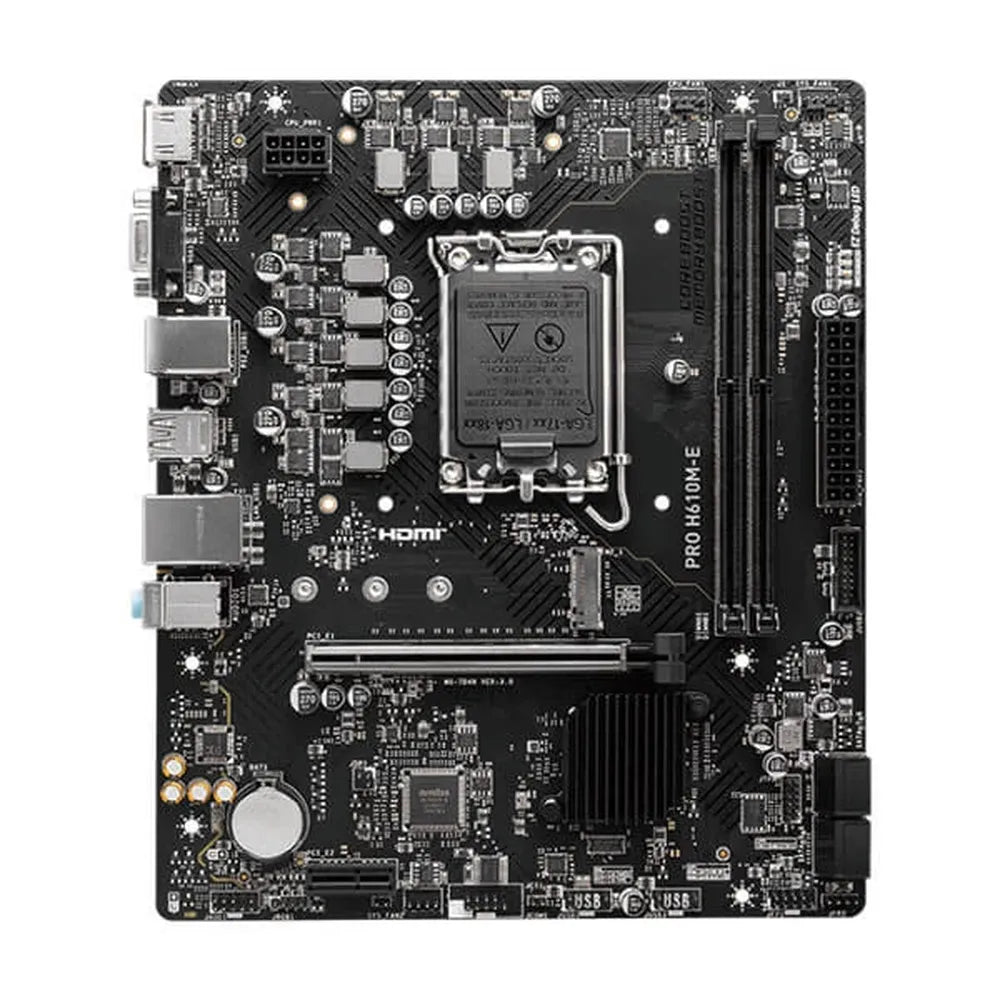

The MSI Pro H610M-E DDR5 is a Micro-ATX motherboard built on the Intel H610 chipset, designed for professionals and value-oriented business users who need a reliable, compact platform for 12th, 13th, or 14th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its fully digital power design, branded as Core Boost, provides stable voltage delivery across a range of processor configurations, complemented by both passive and active Frozr AI cooling elements on the VRM area. Memory flexibility is a key strength: the board features two DDR5 DIMM slots supporting up to 96 GB of non-ECC unbuffered RAM, running at DDR5 4800 MHz per JEDEC specification, with Intel XMP 3.0 support for enthusiast overclocking profiles and a dual-controller dual-channel architecture for improved bandwidth efficiency. For graphics, a PCIe 4.0 x16 slot (direct from the CPU) accommodates modern discrete graphics cards, protected by MSI’s Steel Armor reinforcement to guard against physical deflection and electromagnetic interference. An additional PCIe 3.0 x1 slot is available for expansion cards via the chipset. Storage options include one M.2 slot (from chipset, PCIe 3.0 x4 or SATA, 2242/2260/2280 form factors) and four SATA 6 Gbps ports for traditional drives. Connectivity is handled by a Realtek RTL8111H Gigabit LAN controller and a rear I/O panel featuring HDMI 1.4 (up to 4K at 30 Hz), VGA, four USB 2.0 ports, and two USB 3.2 Gen 1 Type-A (5 Gbps) ports. Audio is delivered via a Realtek ALC897 codec supporting 7.1-channel HD audio output. Internal headers include an RGB LED connector (JRGB) for Mystic Light-compatible strips, a TPM 2.0 pin header for enterprise security features, chassis intrusion detection (JCI), front panel audio (JAUD), a COM port (JCOM), one CPU fan header, and two system fan headers — all manageable through MSI’s Total Fan Control in BIOS or software. Four EZ Debug LEDs assist with rapid boot troubleshooting. The board carries a 3-year manufacturer warranty and supports Windows 10 and Windows 11 (64-bit). Verified Specifications: – Chipset: Intel H610 – Socket: LGA 1700 – CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron – Memory: 2x DDR5 DIMM, up to 96 GB, DDR5 4800 MHz (JEDEC), XMP 3.0 – PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) – Storage: 1x M.2 (PCIe 3.0 x4 / SATA, 2242–2280), 4x SATA 6 Gbps – Display: HDMI 1.4 (4K/30 Hz), VGA (up to 2048×1536) – LAN: Realtek RTL8111H 1 Gbps – Audio: Realtek ALC897, 7.1-channel HD – USB Rear: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 – Form Factor: Micro-ATX, 200 mm × 236.16 mm – Warranty: 3 Years
