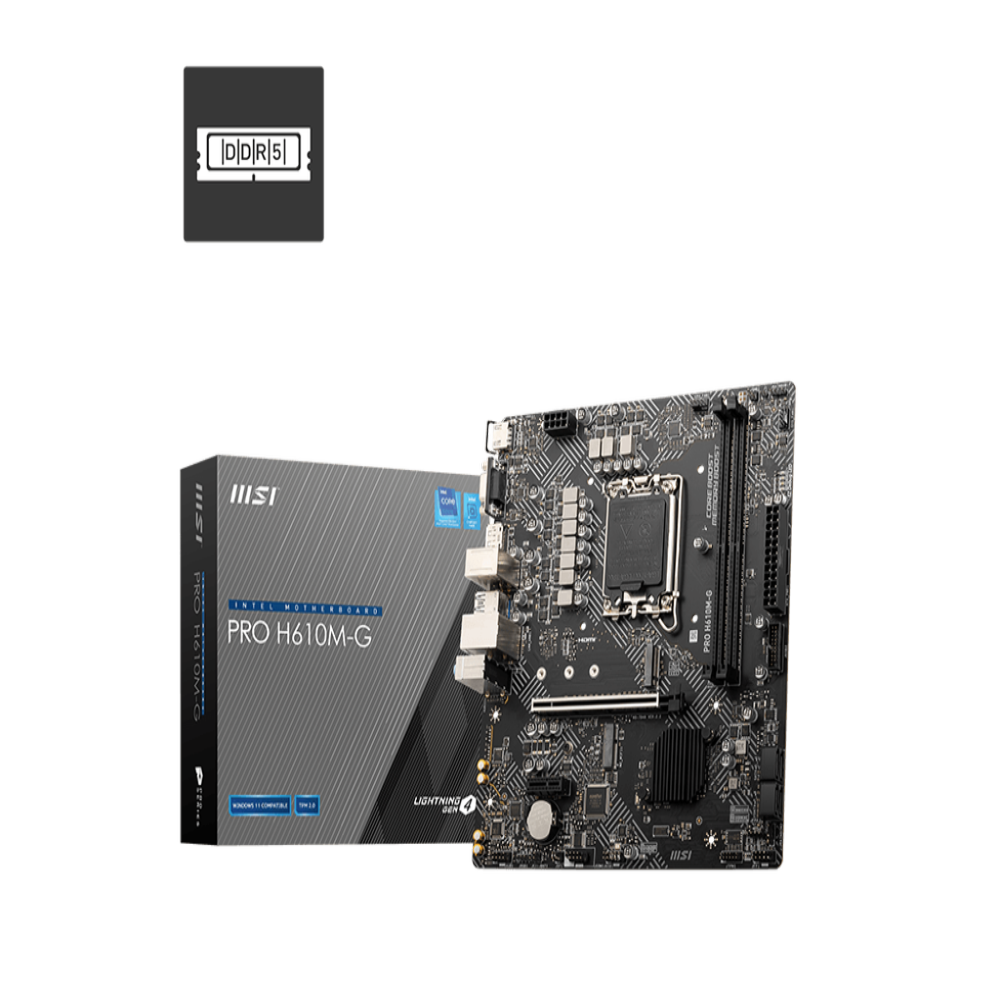

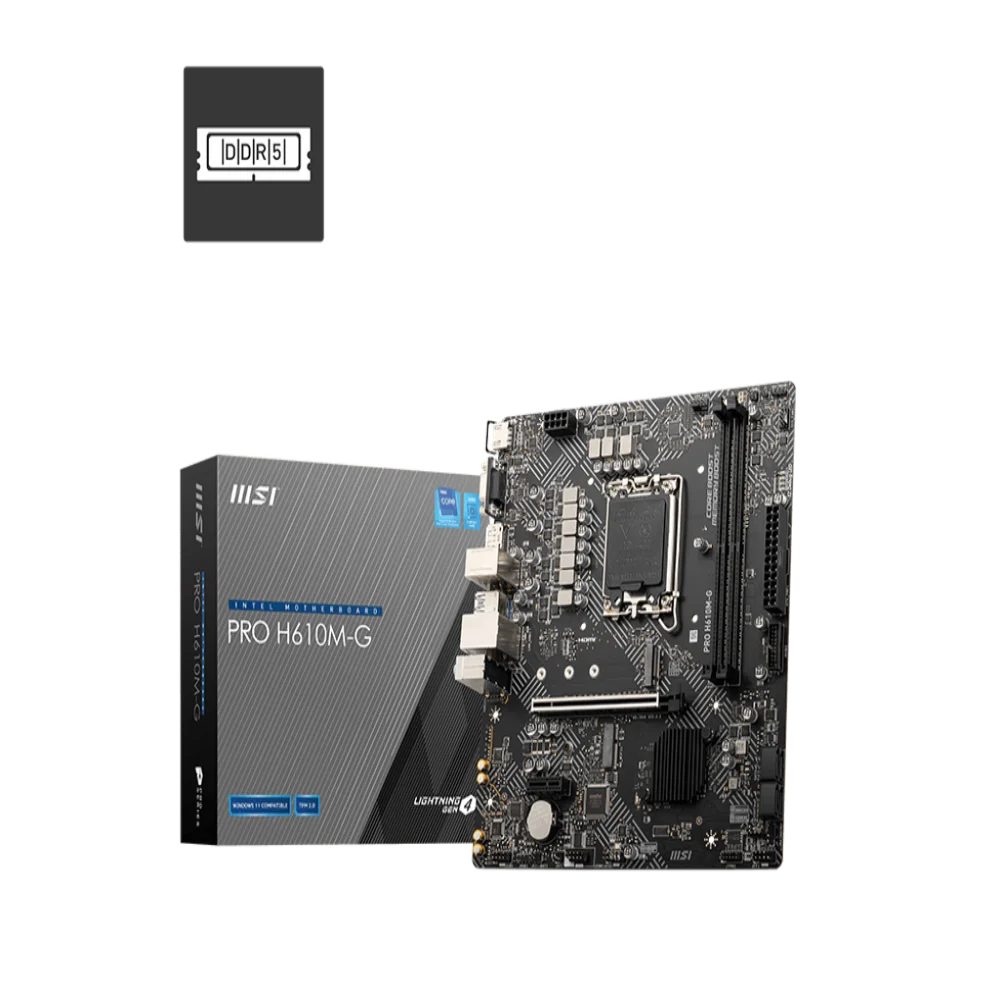

MSI Pro H610M-G Wifi DDR5 Intel Motherboard

The MSI PRO H610M-G WiFi DDR5 is a Micro-ATX motherboard designed for Intel LGA 1700 processors, pairing the Intel H610 chipset with the latest DDR5 memory technology. It is compatible with Intel Core 12th, 13th, and 14th Generation processors, as well as Intel Pentium Gold and Celeron processors, making it a versatile platform for productivity-focused desktop builds. Memory performance is a key strength of this board. Two DDR5 DIMM slots support up to 96 GB of capacity, with speeds reaching DDR5-5600 MHz per JEDEC and POR specifications. Intel XMP 3.0 support allows for validated memory profile activation, while Dual-Controller Dual-Channel mode helps extract consistent bandwidth for multitasking and professional workloads. Only non-ECC, unbuffered memory modules are compatible. Connectivity is covered comprehensively. The integrated Wi-Fi 6E module (pre-installed in the M.2 Key-E slot) supports tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.4 Gbps throughput, with MU-MIMO TX/RX and 802.11 a/b/g/n/ac/ax standards. Bluetooth 5.3 is also included. A wired Intel LAN port provides stable Ethernet connectivity. Expansion slots include one PCIe 4.0 x16 slot (from the CPU) and one PCIe 3.0 x1 slot (from the chipset), with Steel Armor reinforcement on the primary slot to protect against heavy graphics card sag and EMI. Storage options include one M.2 slot supporting PCIe 3.0 x4 or SATA mode (2242/2260/2280 form factors) and four SATA 6 Gb/s ports. Display output is handled by three rear video connectors: HDMI 2.1 (up to 4K 60 Hz), DisplayPort 1.4 (up to 4K 60 Hz), and VGA (up to 1920×1200 at 60 Hz), all leveraging Intel integrated graphics. Audio is delivered via a Realtek ALC897 codec supporting 7.1-channel High Definition Audio. Fan management is handled through MSI's FROZR AI Cooling system, which monitors CPU and system temperatures and adjusts fan speeds automatically. Up to four temperature targets can be configured in BIOS or via MSI software. Additional onboard features include two JRAINBOW addressable RGB headers, one JRGB RGB header, four EZ Debug LEDs for simplified troubleshooting, and a TPM 2.0 header. USB connectivity includes four USB 2.0 ports and two USB 5 Gbps Type-A ports on the rear panel, plus headers for two additional USB 2.0 and two USB 5 Gbps front-panel ports. Verified Specifications: - Chipset: Intel H610 - Socket: LGA 1700 - CPU Support: Intel Core 12th / 13th / 14th Gen; Pentium Gold; Celeron - Form Factor: mATX (211 mm × 243.84 mm) - Memory: 2× DDR5 DIMM, max 96 GB, up to DDR5-5600 MHz (JEDEC/POR), XMP 3.0 - Storage: 1× M.2 (PCIe 3.0 x4 / SATA, up to 2280); 4× SATA 6 Gb/s - PCIe: 1× PCIe 4.0 x16 (CPU); 1× PCIe 3.0 x1 (Chipset) - Video Out: HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (4K 60 Hz), VGA - Wireless: Wi-Fi 6E (2.4/5/6 GHz, up to 2.4 Gbps), Bluetooth 5.3 - Audio: Realtek ALC897, 7.1-ch HD Audio - USB Rear: 4× USB 2.0, 2× USB 5 Gbps Type-A - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years
