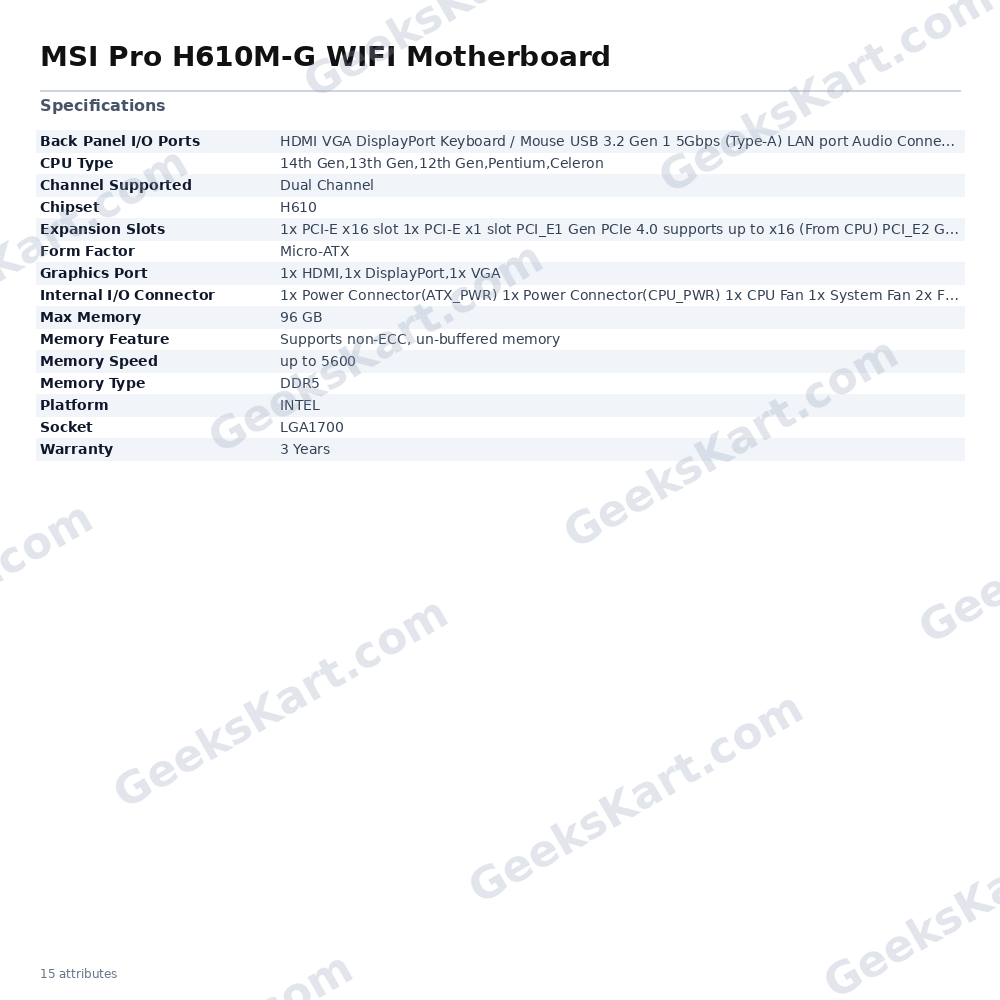

MSI Pro H610M-G WIFI Motherboard

The MSI Pro H610M-G WIFI is a Micro-ATX motherboard built on Intel's H610 chipset and designed around the LGA1700 socket. It is compatible with Intel Core 12th, 13th, and 14th generation processors as well as Intel Pentium Gold and Celeron processors, making it a flexible foundation for productivity-focused desktop builds that prioritise value and reliability. Memory support is one of the board's notable strengths: it accommodates DDR5 modules in dual-channel configuration, scaling up to 96 GB total capacity at speeds reaching 5600 MHz. Non-ECC, unbuffered memory is supported, which covers the vast majority of consumer DDR5 kits available today. Connectivity is handled through an integrated Wi-Fi 6E solution, delivering a faster and more reliable wireless connection suitable for demanding office applications and multimedia workflows. Wired networking uses an Intel LAN controller, prioritising stable throughput. The expansion layout includes one PCIe 4.0 x16 slot (from the CPU) for a discrete graphics card and one PCIe 3.0 x1 slot (from the chipset) for additional peripherals. Steel Armor reinforcement on the primary PCIe slot helps bear the weight of full-length graphics cards while also reducing electromagnetic interference. Display output options on the rear panel cover HDMI, DisplayPort, and VGA, allowing the board to drive monitors directly from Intel integrated graphics without a discrete GPU. USB connectivity at the back panel includes USB 3.2 Gen 1 (5 Gbps) Type-A ports alongside USB 2.0 ports. Internal headers provide two additional USB 2.0 ports and two USB 5 Gbps Type-A ports for front-panel expansion. For enthusiasts who appreciate addressable lighting, the board includes two JRAINBOW (ARGB) headers and one JRGB header. A TPM 2.0 pin header is present for hardware-based security requirements, and a chassis intrusion connector adds a layer of physical security monitoring. MSI's FROZR AI COOLING feature monitors CPU and GPU temperatures and automatically adjusts system fan speeds via the MSI AI Engine, helping to maintain a quiet and thermally efficient environment without manual tuning. Verified Specifications: - Socket: LGA1700 - Chipset: Intel H610 - Form Factor: Micro-ATX - Supported CPUs: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron - Memory Type: DDR5 (Non-ECC, Unbuffered) - Memory Channels: Dual Channel - Max Memory: 96 GB - Max Memory Speed: 5600 MHz - Expansion: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) - Wireless: Wi-Fi 6E - Rear Display: HDMI, DisplayPort, VGA - Rear USB: USB 3.2 Gen 1 (5 Gbps) Type-A, USB 2.0 - Internal USB: 2x USB 2.0, 2x USB 5 Gbps Type-A - RGB Headers: 2x ARGB (JRAINBOW), 1x RGB (JRGB) - TPM: TPM 2.0 pin header - Warranty: 3 Years
