Msi Pro H610M-S DDR4 II M-ATX Motherboard
MPN PRO-H610M-S-DDR4-II · Brand GIGABYTE · mATX
The MSI PRO H610M-S DDR4 II is a Micro-ATX motherboard for Intel LGA1700 CPUs (12th–14th Gen), supporting up to 64GB DDR4 3200MHz in dual-channel and featuring a PCIe 4.0 x16 slot
Inclusive of GST · GST invoice available
Overview
The MSI PRO H610M-S DDR4 II is a Micro-ATX form factor motherboard built on Intel's H610 chipset with an LGA1700 socket, making it compatible with Intel Core 12th, 13th, and 14th generation processors as well as Intel Pentium Gold and Celeron series CPUs. Designed for home office systems, everyday computing, and entry-level builds, this board delivers a stable and efficient platform without overcomplicating the feature set. For memory, the board features two DDR4 DIMM slots supporting up to 64GB of total capacity. It is compatible with DDR4 speeds from 1866MHz up to 3200MHz via JEDEC profiles, and operates in dual-channel mode for improved data throughput. Only non-ECC, unbuffered memory modules are supported. On the expansion side, the PRO H610M-S DDR4 II includes one PCIe x16 slot running at PCIe 4.0 from the CPU, ideal for a dedicated graphics card, and one PCIe x1 slot running at PCIe 3.0 from the chipset for additional expansion cards. The back panel provides an HDMI output for integrated graphics, multiple USB 2.0 ports, a USB 5Gbps (USB 3.2 Gen 1) Type-A port, a Gigabit LAN port, and audio connectors. Internal connectivity includes headers for four USB 2.0 ports and two USB 5Gbps Type-A ports, along with standard front-panel headers, a chassis intrusion header, a front audio header, and a TPM 2.0 pin header for platform security. The board ships with a 3-year manufacturer warranty. Verified Specifications: - Socket: LGA1700 - Chipset: Intel H610 - CPU Compatibility: Intel Core 12th, 13th, 14th Gen; Pentium Gold; Celeron - Form Factor: Micro-ATX - Memory Slots: 2x DDR4 DIMM - Max Memory: 64GB - Memory Speeds (JEDEC): 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz - Memory Channels: Dual-Channel - PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) - Display Output: 1x HDMI - USB (Back Panel): USB 2.0, USB 5Gbps Type-A - LAN: Yes (port present; speed not specified in source) - Internal USB Headers: 4x USB 2.0, 2x USB 5Gbps Type-A - TPM: Pin header supporting TPM 2.0 - Warranty: 3 Years

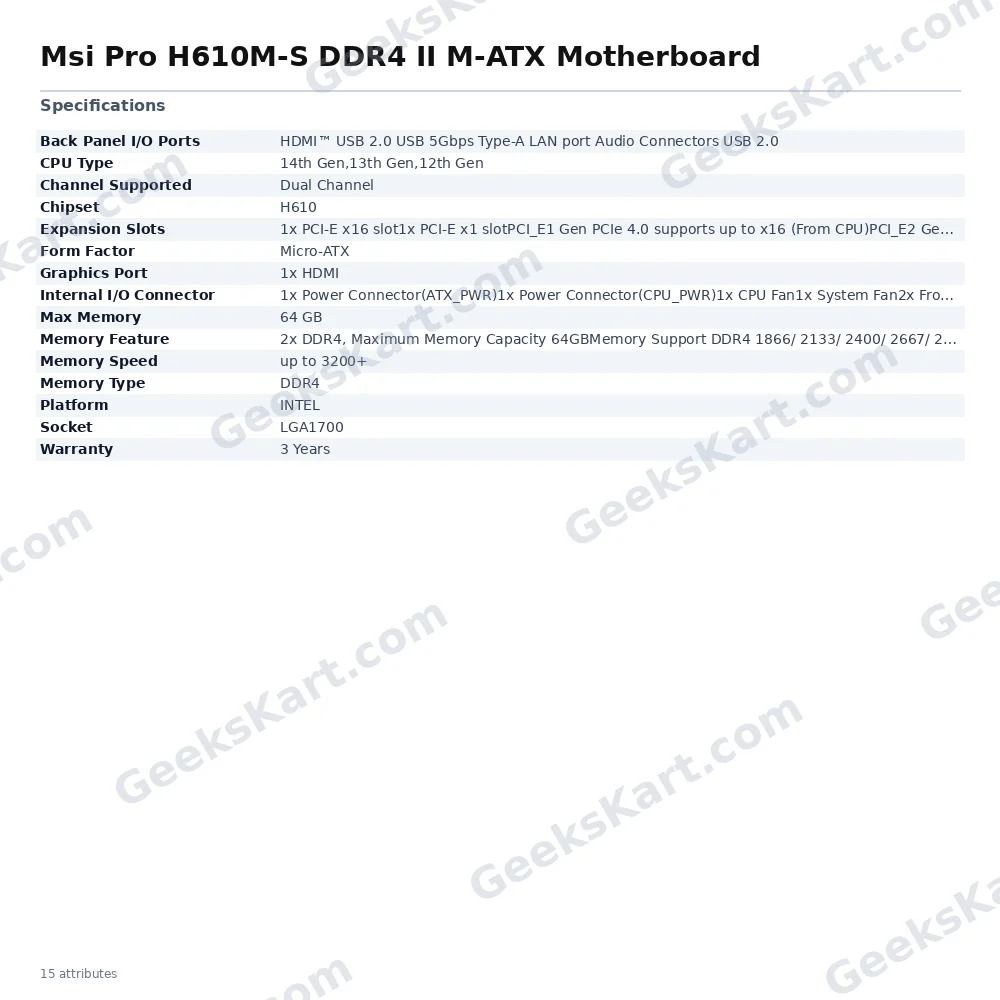

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen |
| Max Memory | 64 GB |
| Memory Speed | up to 3200+ |
| Platform | INTEL |
| Graphics Port | 1x HDMI |
| Memory Feature | 2x DDR4, Maximum Memory Capacity 64GBMemory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports Dual-Channel modeSupports non-ECC, un-buffered memory |
| Expansion Slots | 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Channel Supported | Dual Channel |
| Back Panel I/O Ports | HDMI™ USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports |
