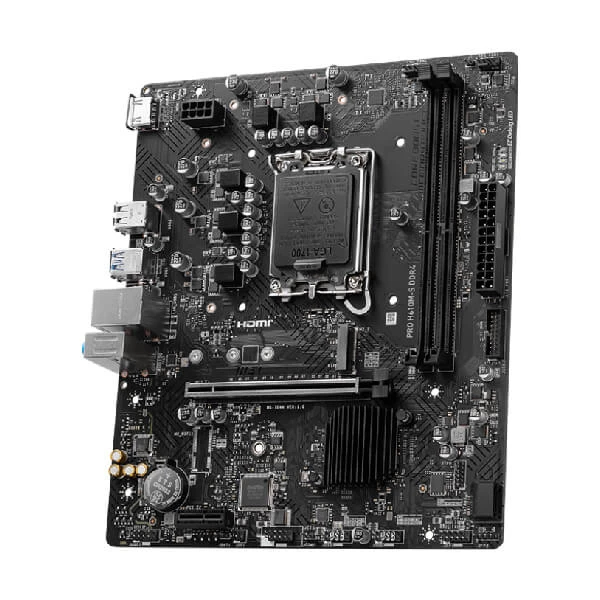

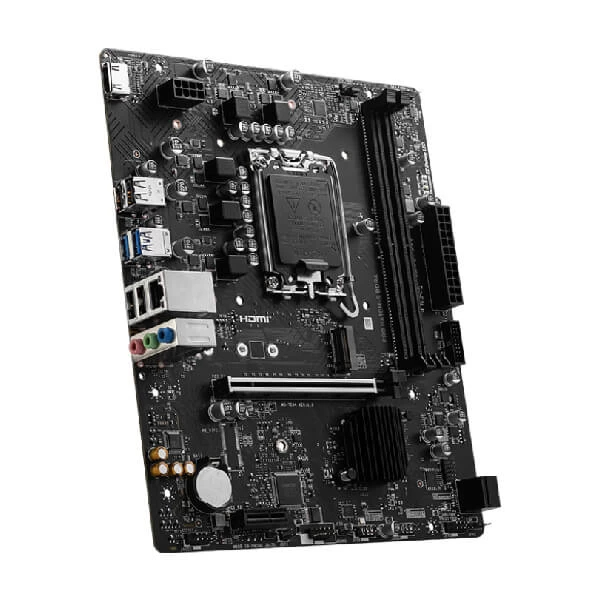

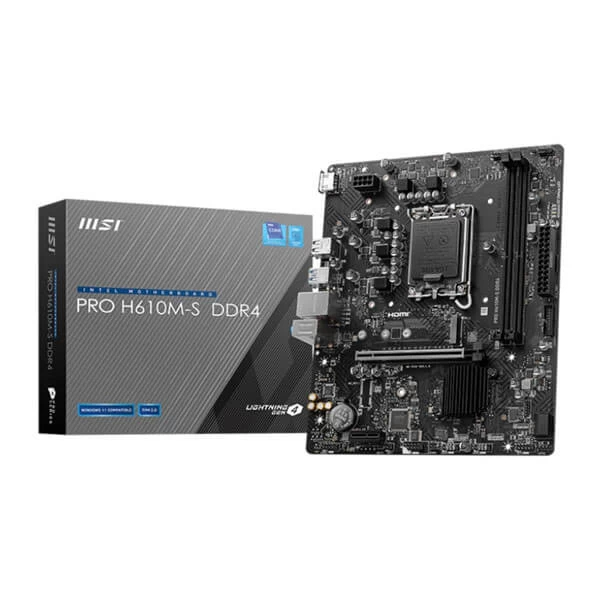

MSI Pro H610M-S DDR4 Motherboard Supports Intel 12th, 13th & 14th Gen Processors
₹5,870.00
Support Intel Core 14th/ 13th/ 12th Gen Processor
100 in stock
This item is selling fast!

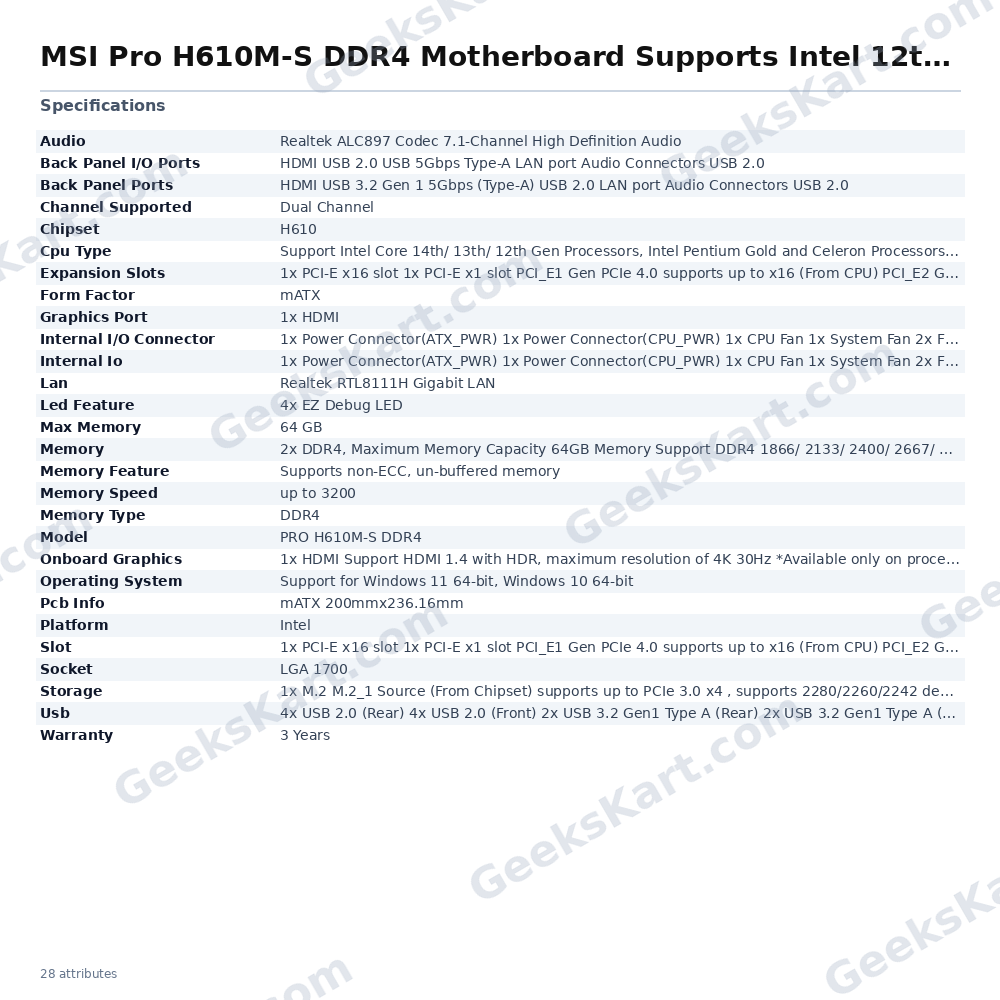

Additional information
| Socket | LGA 1700 |
|---|---|
| Chipset | H610 |
| Platform | Intel |
| Memory Type | DDR4 |
| Form Factor | mATX |
| Cpu Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Lan | Realtek RTL8111H Gigabit LAN |
| Usb | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Model | PRO H610M-S DDR4 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
| Pcb Info | mATX 200mmx236.16mm |
| Warranty | 3 Years |
| Internal Io | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| Led Feature | 4x EZ Debug LED |
| Memory Speed | up to 3200 |
| Graphics Port | 1x HDMI |
| Memory Feature | Supports non-ECC, un-buffered memory |
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |

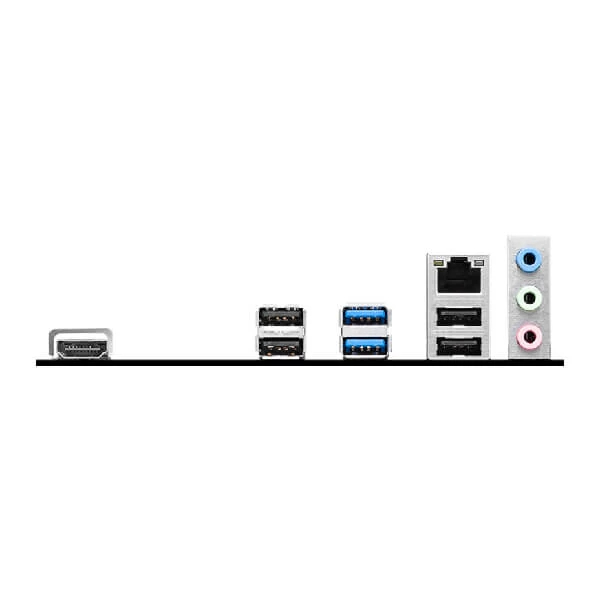

| Back Panel Ports | HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 LAN port Audio Connectors USB 2.0 |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Onboard Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Channel Supported | Dual Channel |
| Max Memory | 64 GB |
| Back Panel I/O Ports | HDMI USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
