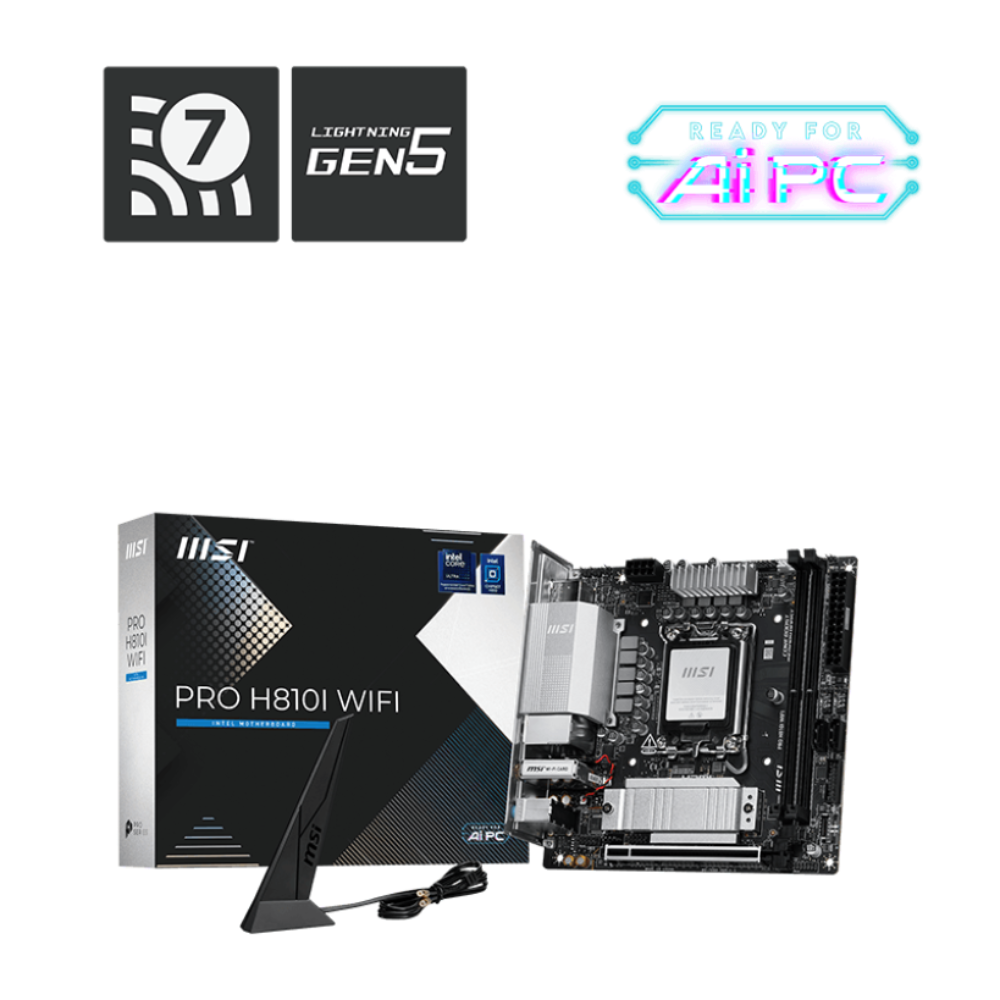

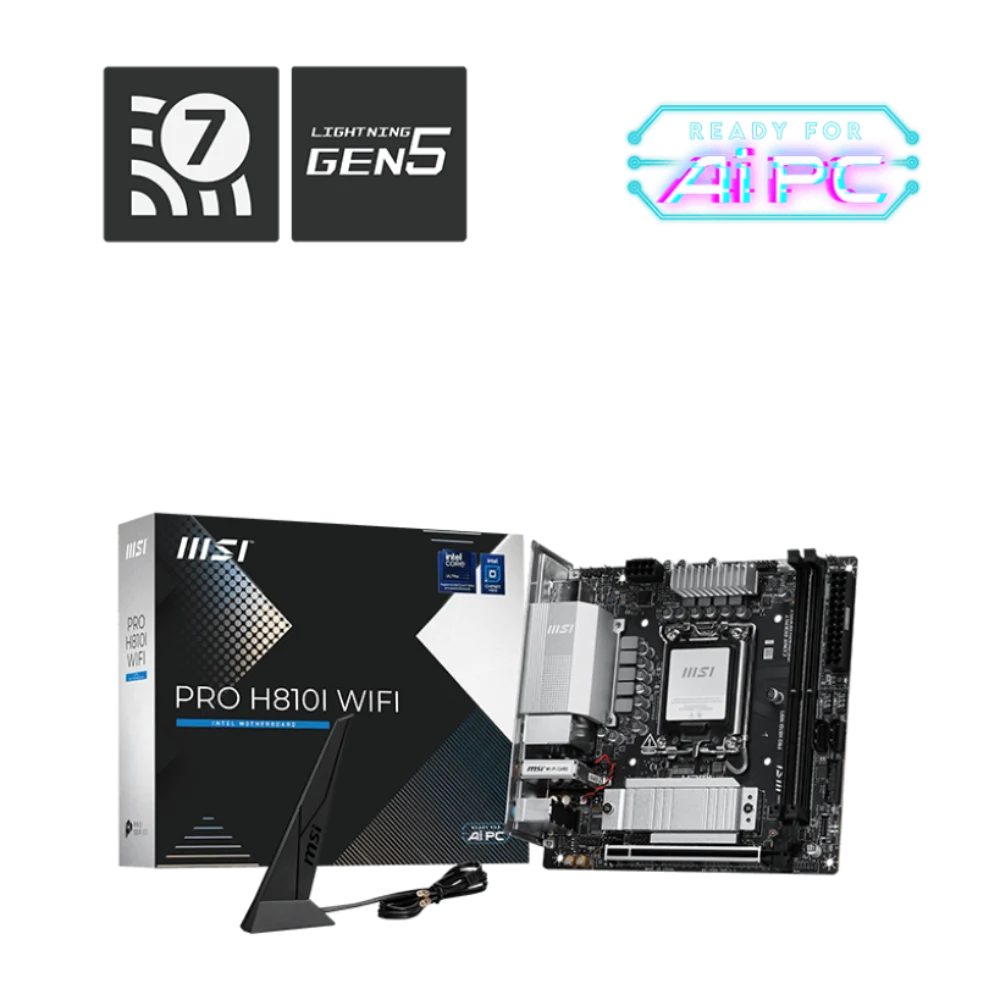

The MSI PRO H810I WiFi 7 is a Mini-ITX form-factor motherboard built around Intel’s H810 chipset, designed to accommodate Intel Core Ultra Processors (Series 2) in the LGA 1851 socket. Despite its compact 170 mm × 170 mm footprint, it delivers a feature set typically associated with larger boards, making it a strong choice for space-conscious professionals and enthusiasts who refuse to compromise on connectivity. At the heart of its memory subsystem are two DDR5 UDIMM slots supporting up to 128 GB of capacity. The board accepts DDR5 speeds from 4800 MT/s (JEDEC) up to 6400 MT/s and is compatible with Intel XMP 3.0 profiles, CUDIMM, and operates in dual-channel mode. MSI’s Memory Extension Mode allows for optimised parameters at the same frequency, targeting lower latency without requiring a manual speed bump. Connectivity is a standout attribute. Wireless networking is handled by an onboard Wi-Fi 7 module pre-installed in the M.2 Key-E slot, supporting the 802.11be standard across 2.4 GHz, 5 GHz, and 6 GHz bands (160 MHz) with MU-MIMO and MLO, reaching up to 2.9 Gbps. Wired networking is provided by an Intel I226 2.5 Gbps LAN controller. Bluetooth 5.4 with 4K-QAM is also included. Expansion is anchored by a single PCIe 5.0 x16 slot sourced from the CPU, enabling full-bandwidth discrete GPU installation. Storage options include one M.2 2280 slot (via chipset, PCIe 4.0 x4) and two SATA 6 Gbps ports. A rear USB 20 Gbps Type-C port alongside front-panel USB 10 Gbps Type-C and multiple USB 5 Gbps Type-A ports cover high-speed peripheral needs. For display output on processors with integrated graphics, the board provides HDMI 2.1 and DisplayPort 1.4, both capable of 4K 60 Hz output. Audio is managed by a Realtek ALC897 codec with 7.1-channel HD Audio support. Thermal management under the Frozr Guard umbrella includes an extended VRM heatsink with 7 W/mK MOSFET thermal pads and an M.2 Shield Frozr heatsink cover. The EZ PCIe Clip II mechanism on the primary slot enables single-finger GPU removal. A pre-installed I/O shield and EZ Debug LEDs further simplify the build process. Verified Specifications: • Form Factor: Mini-ITX (170 mm × 170 mm) • Chipset: Intel H810 • Socket: LGA 1851 (Intel Core Ultra Series 2) • Memory: 2× DDR5 UDIMM, up to 128 GB, DDR5 4800–6400 MT/s, XMP 3.0, Dual-Channel • PCIe: 1× PCIe 5.0 x16 (CPU) • Storage: 1× M.2 2280 PCIe 4.0 x4 (chipset); 2× SATA 6 Gbps • Wireless: Wi-Fi 7 (802.11be), 2.4/5/6 GHz, up to 2.9 Gbps; Bluetooth 5.4 • LAN: Intel I226 2.5 Gbps • USB Rear: 1× USB 20 Gbps Type-C, 2× USB 5 Gbps Type-A, 2× USB 2.0 • USB Front Headers: 1× USB 10 Gbps Type-C, 2× USB 5 Gbps Type-A, 4× USB 2.0 • Display: HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (4K 60 Hz) — iGPU only • Audio: Realtek ALC897, 7.1-Channel HD Audio • RGB: 1× JARGB_V2 addressable header
ASUS Prime H610M-F Wifi DDR4 Intel Motherboard
₹8,595.00
MSI MAG X870E Gaming Plus Max WIfi7 DDR5 AMD Motherboard
₹31,995.00
MSI Pro H810I Wifi7 DDR5 Intel Motherboard
₹15,880.00
The MSI PRO H810I WiFi 7 is a Mini-ITX Intel H810 motherboard for LGA 1851 Core Ultra Series 2 processors, featuring DDR5 up to 6400 MT/s, PCIe 5.0, Wi-Fi 7, 2.5G LAN, and USB 20 Gbps Type-C in a compact 170 mm × 170 mm layout

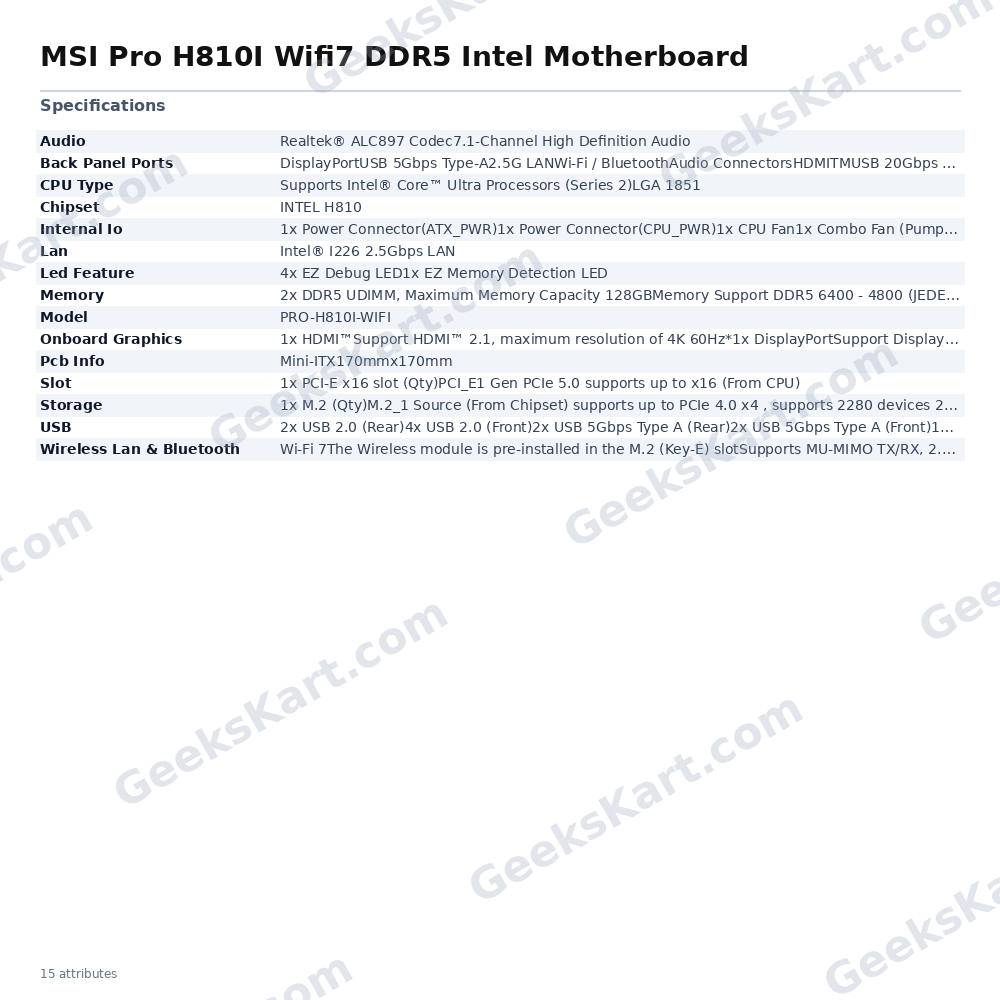

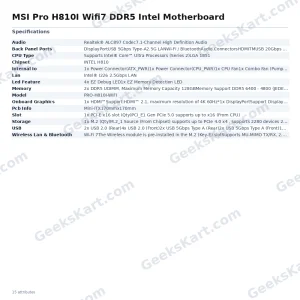

Additional information
| Chipset | INTEL H810 |
|---|---|
| CPU Type | Supports Intel® CoreTM Ultra Processors (Series 2)LGA 1851 |
| Lan | Intel® I226 2.5Gbps LAN |
| USB | 2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear) |
| Slot | 1x PCI-E x16 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Model | PRO-H810I-WIFI |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 6400 – 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 6400 MT/s• 1DPC 2R Max speed up to 6400 MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard only have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
| Storage | 1x M.2 (Qty)M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G (Qty)*Please refer to the manual for M.2 SSD heatsink restrictions |
| Pcb Info | Mini-ITX170mmx170mm |
| Internal Io | 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)1x System Fan1x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Addressable V2 RGB LED connector (JARGB_V2)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| Led Feature | 4x EZ Debug LED1x EZ Memory Detection LED |
| Back Panel Ports | DisplayPortUSB 5Gbps Type-A2.5G LANWi-Fi / BluetoothAudio ConnectorsHDMITMUSB 20Gbps Type-CUSB 2.0 |
| Onboard Graphics | 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless Lan & Bluetooth | Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
