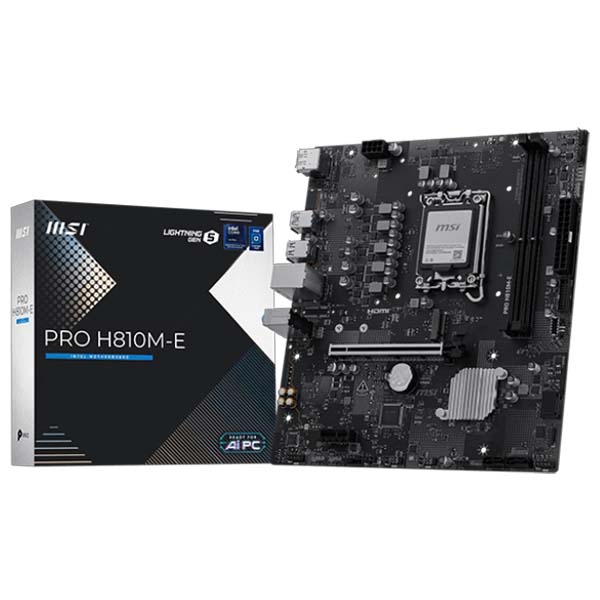

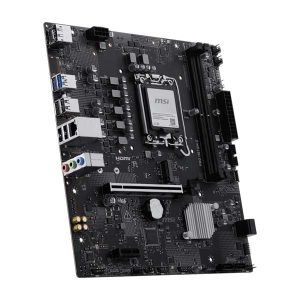

MSI PRO H810M-E LGA 1851 mATX Motherboard

MPN PRO-H810M-E  ·  Brand MSI  ·  mATX

The MSI PRO H810M-E is an LGA 1851 mATX motherboard from MSI's PRO series, priced at ₹7,699, suited for compact Intel-platform desktop builds

Memory Speed up to 6400 Form Factor mATX Warranty 3 Years Chipset H810
₹8,300.00

Inclusive of GST · GST invoice available

In stock, ready to ship today
Warranty
3 Years
Dispatch
24–48 hrs
Returns
7-day
01

Overview

The MSI PRO H810M-E is a Micro-ATX form-factor motherboard designed for Intel's LGA 1851 socket, making it a practical and space-conscious choice for compact desktop builds on the Intel platform. Carrying MSI's PRO series branding — a line aimed at professional and business-oriented users who prioritise stability and reliability — this board slots comfortably into mid-range system integrations where a smaller chassis footprint is desirable without compromising on platform compatibility. The mATX form factor (Micro-ATX) measures approximately 244 × 244 mm, fitting a wide range of mid-tower and micro-tower cases, which helps reduce overall system size while retaining standard motherboard mounting points. The LGA 1851 socket is Intel's contemporary interface, and its presence on this board signals compatibility with current-generation Intel processors that use this socket type. As a PRO series product, the MSI PRO H810M-E is positioned for users who need a dependable foundation for productivity workstations, small-form-factor office machines, or budget-aware custom PC builds. The chipset designation H810 generally represents an entry-level Intel chipset tier, offering core connectivity features suited to mainstream computing tasks. Verifiable specifications confirmed by available source data: — Model: MSI PRO H810M-E — SKU: PRO H810M-E — CPU Socket: LGA 1851 — Form Factor: mATX (Micro-ATX) — Brand: MSI — Series: MSI PRO — Listed price: ₹7,699 (INR) — Availability: In stock (as listed by source at time of catalogue) — Chipset family: Intel H810 (entry-level Intel chipset for LGA 1851 platform) Note: Additional specifications such as memory slots, RAM type and speed support, PCIe slot configuration, M.2 slot count, USB header details, and audio chipset have not been confirmed in the available source data. Buyers are advised to verify these details with the retailer or MSI's official product page before purchase. For optimal thermal performance with an LGA 1851 build, pairing this motherboard with a compatible MSI cooler such as those from the MAG CORELIQUID or MAG COREFROZR series ensures a single-brand ecosystem with straightforward mounting compatibility

02

Datasheet

Memory Type

DDR5

Warranty

3 Years

Form Factor

mATX

Chipset

H810

Socket

LGA1851

CPU Type

Core Ultra

Max Memory

128 GB

Memory Speed

up to 6400

Platform

INTEL

Graphics Port

1 x DisplayPort,1 x HDMI

Memory Feature

Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel POR Speed and JEDEC Speed Supports Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM

Expansion Slots

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

Channel Supported

Dual Channel

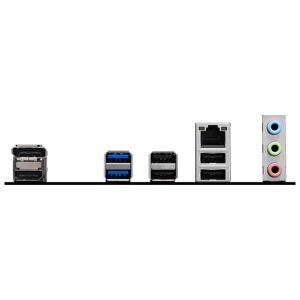

Back Panel I/O Ports

DisplayPort USB 5Gbps Type-A USB 2.0 2.5G LAN Audio Connectors HDMI USB 2.0

Internal I/O Connector

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
