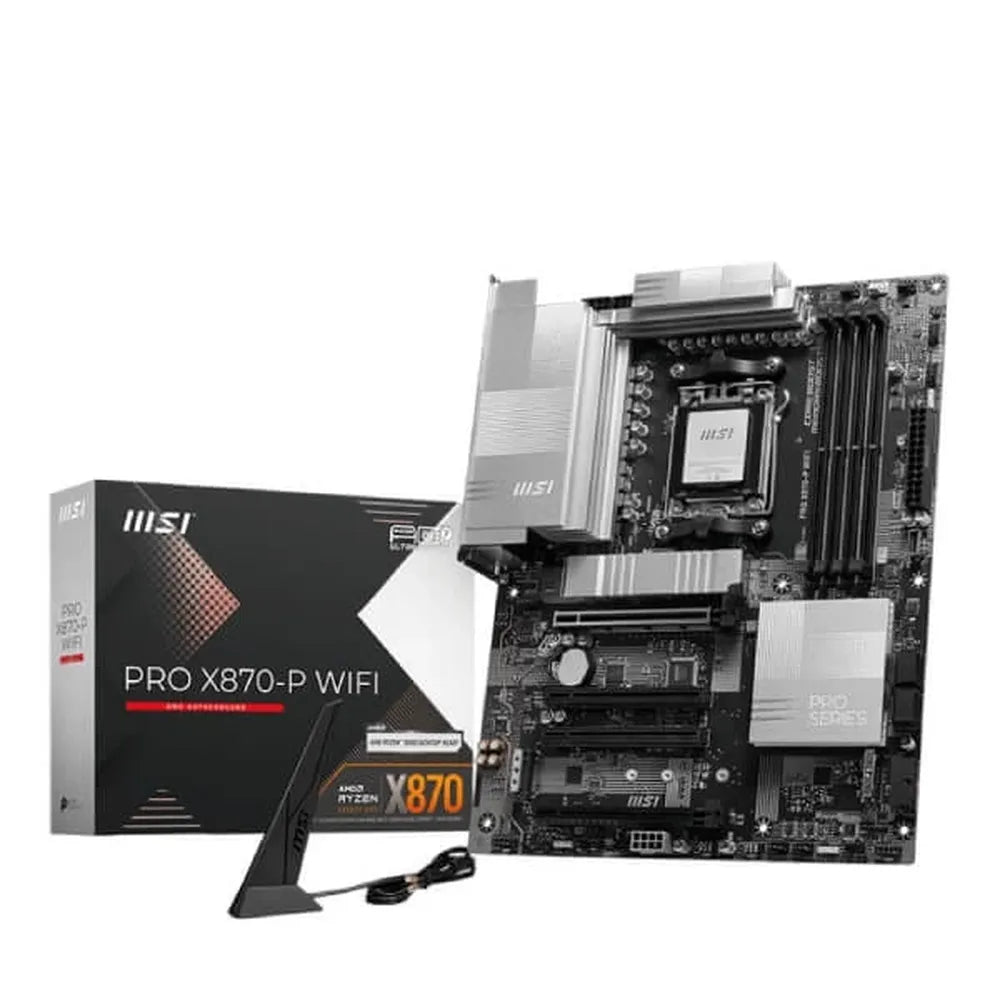

MSI Pro X870-P WiFi ATX DDR5 AMD Motherboard

The MSI Pro X870-P WiFi is a full-size ATX motherboard built on the AMD X870 chipset, designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors via the AM5 socket. Its professional-grade power delivery features a 14+2+1 Duet Rail Power System with dual 8-pin CPU power connectors, an 8-layer PCB constructed with 2 oz thickened copper, and server-grade components — a combination that supports demanding workloads and overclocking sessions without thermal compromise. Memory performance is a standout. Four DDR5 UDIMM slots accommodate up to 256 GB of memory and can reach DDR5 8200 MT/s (OC) in a single-rank, single-DIMM-per-channel configuration. JEDEC speeds between 4800 and 5600 MT/s are supported natively, and AMD EXPO profiles are compatible for one-click memory tuning. Dual-channel operation is fully supported across configurations. Storage options are equally capable. The primary M.2 slot (M2_1, CPU-fed) supports PCIe 5.0 x4 speeds on Ryzen 9000 and 7000 processors, while two additional M.2 slots handle PCIe 4.0 drives. Four SATA 6 Gbps ports round out the storage connectivity. RAID 0 and RAID 1 are supported for NVMe M.2 devices. Connectivity is a genuine strength. The rear panel includes a USB4 40 Gbps Type-C port, a USB 20 Gbps Type-C, two USB 10 Gbps Type-A, and a USB 20 Gbps Type-C — alongside a Realtek 8126VB 5G wired LAN controller. The pre-installed Wi-Fi 7 module (M.2 Key-E slot) supports 2.4 GHz, 5 GHz, and 6 GHz bands with MU-MIMO, MLO, 4K-QAM, and speeds up to 5.8 Gbps. Bluetooth 5.4 is included. HDMI 2.1 (4K 60 Hz) and DisplayPort 1.4 via USB4 Type-C provide display output for processors with integrated graphics. Thermal management uses the Frozr Guard system: an extended heatsink with 7 W/mK MOSFET thermal pads, choke thermal pads, and EZ M.2 Shield Frozr II covers for M.2 SSDs. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio. Four EZ Debug LEDs assist with quick fault diagnosis during POST. Verified Specifications: - Chipset: AMD X870 - Form Factor: ATX — 243.84 mm × 304.8 mm - CPU Socket: AM5 (Ryzen 9000 / 8000 / 7000 series) - Memory: 4× DDR5 UDIMM, max 256 GB; up to 8200 MT/s (OC) - Primary M.2: PCIe 5.0 x4 (CPU); additional M.2 slots: PCIe 4.0 x4 and PCIe 4.0 x2 - SATA: 4× SATA 6 Gbps - PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4, 2× PCIe 3.0 x1 - LAN: Realtek 8126VB 5G - Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4 - USB (rear): 1× USB4 40 Gbps Type-C, 1× USB 20 Gbps Type-C, 2× USB 10 Gbps Type-A, 2× USB 5 Gbps Type-A, 4× USB 2.0 Type-A - Display: HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 via USB4 Type-C - Audio: Realtek ALC897, 7.1-channel HD - Warranty: 3 years
