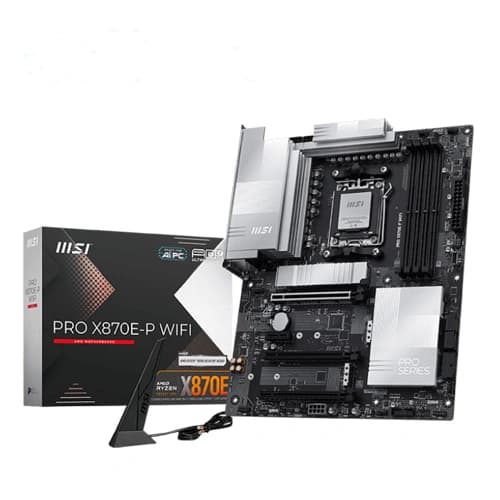

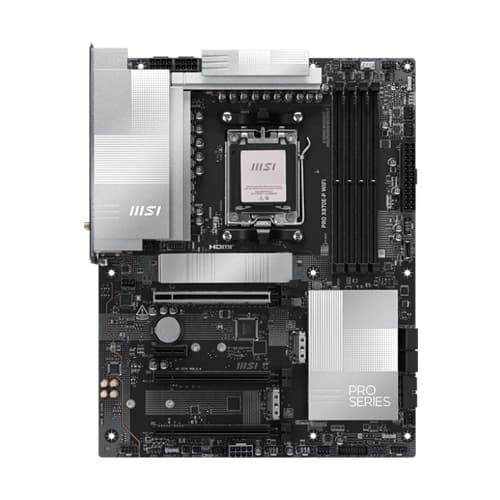

MSI Pro X870E-P WIFI ATX Motherboard
MPN PRO-X870E-P-WIFI · Brand MSI · ATX
MSI Pro X870E-P WIFI ATX Motherboard
Inclusive of GST · GST invoice available
Overview
MSI Pro X870E-P WIFI ATX Motherboard
Datasheet
| Motherboard Series | MSI PRO |
|---|---|
| Platform | AMD |
| Graphics Port | 1x HDMI,1x Type-C DisplayPort |
| Memory Feature | Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.• The DIMM slots on this motherboard have double-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand website |
| Expansion Slots | 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

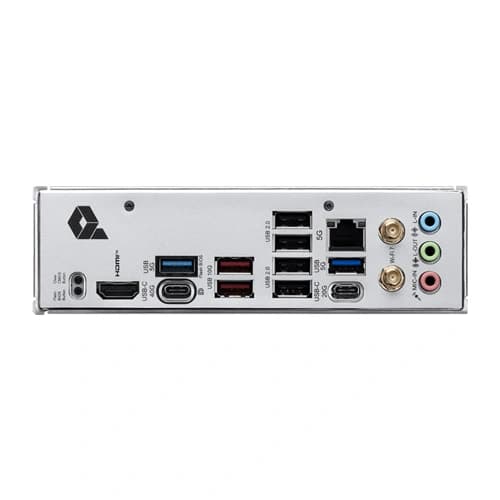

| Back Panel I/O Ports | Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A |
| Internal I/O Connector | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)6x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | ATX |
| color | Black |
| Chipset | X870E |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200+ |
