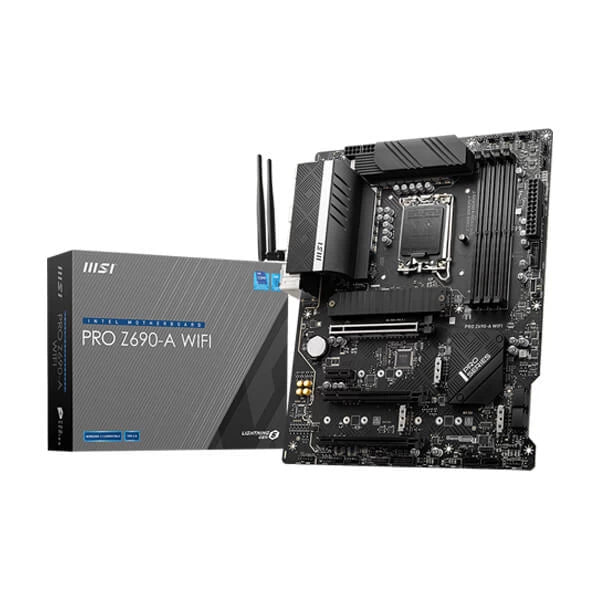

MSI Pro Z690-A Wifi DDR5 Intel Motherboard

The MSI Pro Z690-A WiFi DDR5 is an ATX-form-factor motherboard built on the Intel Z690 chipset, designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA1700 socket. It represents a capable platform for builders who want DDR5 memory support, next-generation PCIe 5.0 bandwidth, and comprehensive wireless connectivity without stepping into the premium enthusiast tier. At the heart of its performance story is the primary PCIe 5.0 x16 slot sourced directly from the CPU, which doubles the interface bandwidth compared to the prior generation. Two additional PCIe x16-keyed slots from the Z690 chipset round out the expansion options, while four M.2 Key-M slots — three supporting PCIe 4.0 x4 and one supporting PCIe 3.0 x4 — alongside six SATA 6 Gb/s ports give builders extensive storage flexibility. M2_1 through M2_2 and M2_4 support PCIe 4.0 x4 drives; M2_3 operates at PCIe 3.0 x4 and also accepts SATA. MSI's M.2 Shield Frozr heatsink helps manage thermal load on NVMe drives to reduce throttling under sustained workloads. Memory support spans four DDR5 DIMM slots with a maximum capacity of 128 GB. The base JEDEC speed is 4800 MHz (1R single-rank); with Intel XMP 3.0 enabled, 1DPC 1R configurations can reach 6400+ MHz overclocked. Dual Controller Dual-Channel mode is supported, and the board is limited to non-ECC, unbuffered memory. Connectivity is a clear strength: Intel Wi-Fi 6E provides tri-band wireless (2.4 GHz / 5 GHz / 6 GHz) with MU-MIMO TX/RX and speeds up to 2.4 Gbps at 160 MHz channel width, alongside Bluetooth 5.2. Wired networking is handled by an Intel I225-V 2.5 Gbps controller. The rear I/O includes one USB 3.2 Gen 2x2 (20 Gbps) Type-C port, one USB 3.2 Gen 2 (10 Gbps) Type-A port, two USB 3.2 Gen 1 (5 Gbps) Type-A ports, and four USB 2.0 Type-A ports, plus HDMI 2.1 (4K 60 Hz) and DisplayPort 1.4 (4K 60 Hz) for integrated graphics output. A Flash BIOS Button on the rear panel allows firmware updates without a CPU or memory installed. The VRM uses a 14+1+1 Duet Rail Power System fed by dual 8-pin ATX 12V connectors. Thermal management extends to an extended metal heatsink over the VRM area with MOSFET thermal pads rated at 7 W/mK. Audio is provided by a Realtek ALC897 codec delivering 7.1-channel High Definition Audio. RGB and addressable lighting headers include one 4-pin RGB connector and two 3-pin ARGB connectors, complemented by four EZ Debug LEDs for straightforward troubleshooting. Verified Specifications: - Chipset: Intel Z690 - Socket: LGA1700 - Form Factor: ATX — 12 in. x 9.6 in. (30.5 cm x 24.4 cm) - Memory: 4x DDR5 DIMM, max 128 GB, JEDEC 4800 MHz, XMP 3.0 up to 6400+ MHz (1DPC 1R OC) - PCIe: 1x PCIe 5.0 x16 (CPU), 2x PCIe 3.0 x16-keyed (chipset), 1x PCIe 3.0 x1 (chipset) - Storage: 4x M.2 (Key-M), 6x SATA 6 Gb/s; RAID 0/1/5/10 on SATA, RAID 0/1/5 on NVMe - Wireless: Intel Wi-Fi 6E, 802.11ax, up to 2.4 Gbps; Bluetooth 5.2 - LAN: Intel I225-V 2.5 Gbps - USB (rear): 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A - Display Output: 1x HDMI 2.1 (4K/60 Hz), 1x DisplayPort 1.4 (4K/60 Hz) - Audio: Realtek ALC897, 7.1-channel HD Audio - VRM: 14+1+1 phase, dual 8-pin ATX 12V - Warranty: 3 Years - OS Support: Windows 11 64-bit, Windows 10 64-bit - Multi-GPU: AMD CrossFire
