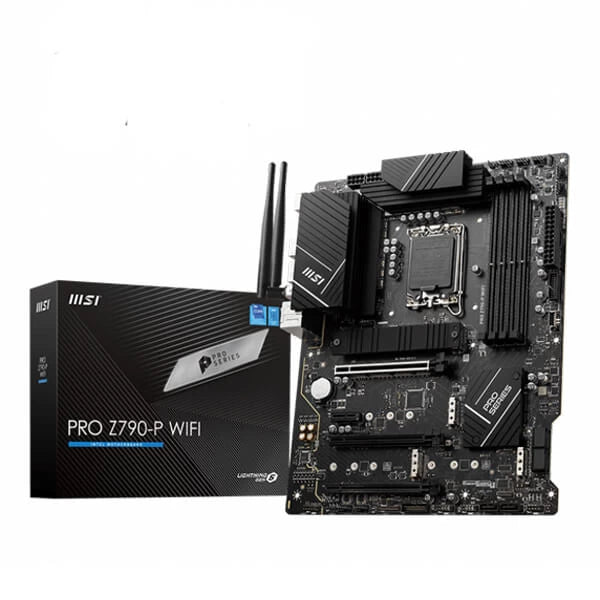

MSI Pro Z790-P Wifi DDR5 Intel Motherboard
MPN MSI-PRO-Z790-P-WI-FI-BLACK · Brand MSI
The MSI Pro Z790-P WiFi DDR5 is an ATX motherboard for 12th/13th Gen Intel LGA 1700 CPUs, featuring PCIe 5.0, four DDR5 slots (up to 128 GB, 7000+ MHz OC), Intel Wi-Fi 6E, 2.5G LAN, and four M.2 slots
Inclusive of GST · GST invoice available
Overview
The MSI Pro Z790-P WiFi DDR5 is an ATX form-factor motherboard built on the Intel Z790 chipset, designed to support 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA 1700 socket. It is a well-rounded platform for both performance enthusiasts and productivity-focused builders who want a feature-rich board without unnecessary excess. Memory support is handled by four DDR5 DIMM slots capable of holding up to 128 GB in total. The board supports JEDEC speeds from 4800 MHz up to 5600 MHz, with XMP 3.0 overclocking headroom reaching 7000+ MHz in a single-rank, single-DIMM-per-channel configuration. Dual-channel operation is supported across all slot configurations. The power delivery system uses a 14+1+1 DRPS arrangement with 55A DrMOS components and dual 8-pin CPU power connectors, providing stable current to demanding processors. Thermal management is addressed through an extended heatsink, MOSFET thermal pads rated at 7 W/mK, and MSI's M.2 Shield Frozr covering the M.2 slots. Storage is expansive: four M.2 slots (all supporting PCIe 4.0 x4, with the top slot also accommodating 22110-length drives) are complemented by six SATA 6 Gbps ports. RAID 0, 1, 5, and 10 are supported for both SATA and NVMe arrays. The primary PCIe slot (PCI_E1) operates at PCIe 5.0 x16 from the CPU, making it compatible with current and next-generation discrete GPUs. Connectivity on the rear panel includes Intel 2.5 Gbps LAN, Intel Wi-Fi 6E (802.11ax, up to 2.4 Gbps on 6 GHz/160 MHz), Bluetooth 5.3, HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (4K 60 Hz), and a USB 3.2 Gen 2x2 Type-C port running at 20 Gbps. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel high-definition output. RGB enthusiasts will find two ARGB V2 headers and one standard RGB header onboard, alongside four EZ Debug LEDs for quick fault diagnosis. Verifiable Specifications: - Chipset: Intel Z790 - Socket: LGA 1700 - CPU Compatibility: 12th / 13th Gen Intel Core, Pentium Gold, Celeron - Memory: 4x DDR5 slots, max 128 GB, up to 7000+ MHz (OC), XMP 3.0 - PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 3.0 x1 (Chipset) - Storage: 4x M.2 PCIe 4.0 x4, 6x SATA 6 Gbps; RAID 0/1/5/10 - Wireless: Intel Wi-Fi 6E, 2.4 / 5 / 6 GHz, up to 2.4 Gbps; Bluetooth 5.3 - LAN: Intel 2.5 Gbps - USB Rear: 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 1x USB 3.2 Gen 2 Type-A (10 Gbps), 2x USB 3.2 Gen 1 Type-A (5 Gbps), 4x USB 2.0 - Audio: Realtek ALC897, 7.1-channel HD - Display Output: HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (4K 60 Hz) - Form Factor: ATX (243.84 mm x 304.8 mm) - OS Support: Windows 11 / Windows 10 (64-bit) - Warranty: 3 Years

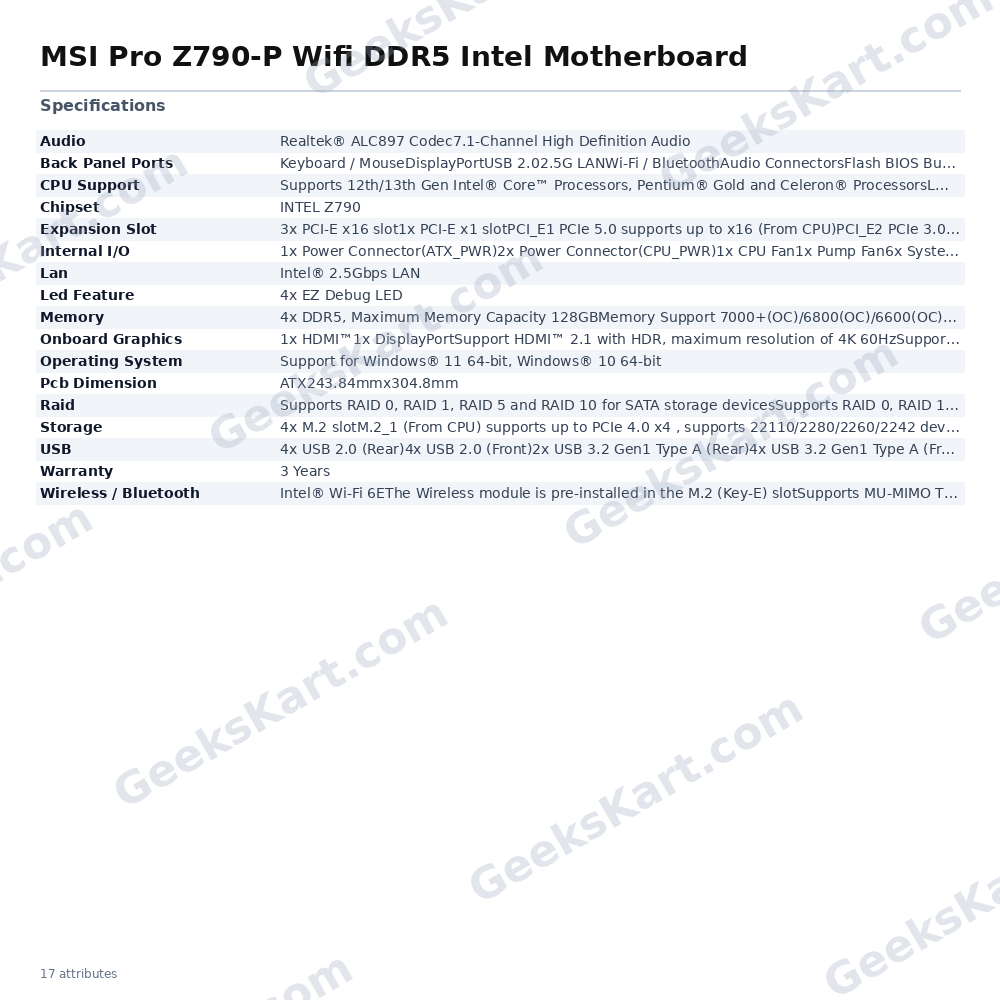

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | INTEL Z790 |
| Lan | Intel® 2.5Gbps LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 4x DDR5, Maximum Memory Capacity 128GBMemory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7000+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory |
| Storage | 4x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6G port |
| CPU Support | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700 |
| Led Feature | 4x EZ Debug LED |
| Internal I/O | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.04x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C |
| Pcb Dimension | ATX243.84mmx304.8mm |
| Expansion Slot | 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Back Panel Ports | Keyboard / MouseDisplayPortUSB 2.02.5G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonUSB 2.0HDMI™USB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2×2 20Gbps (Type-C)USB 3.2 Gen 2 10Gbps (Type-A) |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI™1x DisplayPortSupport HDMI™ 2.1 with HDR, maximum resolution of 4K 60HzSupport DP 1.4, maximum resolution of 4K 60Hz |
| Wireless / Bluetooth | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
