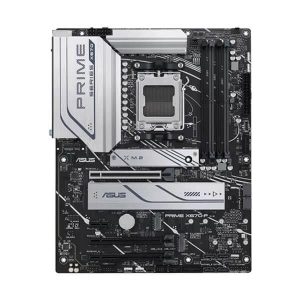

Asus Prime X670-p Csm Motherboard
₹27,705.00
Msi Mpg Z790 Carbon WIFI Lga 1700 Intel Ddr5 ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
₹49,485.00
MSI Pro Z790-P WIFI Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
₹22,280.00
X Form Factor <li class="listItem_OMS5rN7R1Z" data
100 in stock
This item is selling fast!
Additional information
| Platform | INTEL |
|---|---|
| Motherboard Series | MSI PRO |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | Z790 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 128 GB |
| Memory Speed | up to 7000+ |
| Lan | Intel® 2.5Gbps LAN |
| Usb | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port |
| Cpu Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Led Feature | 4x EZ Debug LED |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Pcb Dimension | ATX 243.84mmx304.8mm |
| Expansion Slot | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Memory Feature | Supports Intel XMP 3.0 OC Supports non-ECC, un-buffered memory |
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |

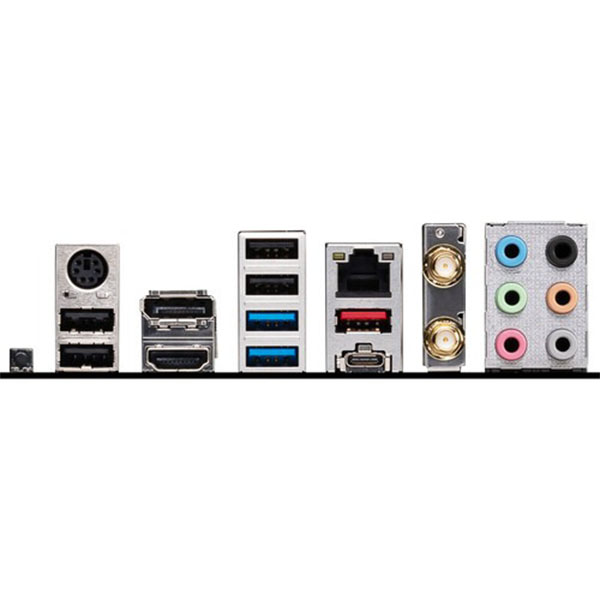

| Back Panel Ports | Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) |
| Wireless / Bluetooth | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
