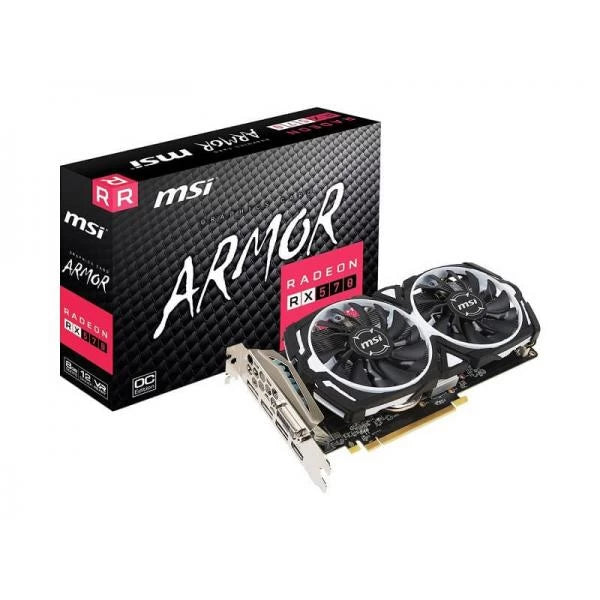

MSI Radeon RX 570 Armor OC 8GB AMD Graphic Card
MPN MSI-RX570 · Brand MSI
Features of MSI Radeon RX 570 Armor OC 8GB AMD Graphic Card Guiding the Future of Gaming Immersive VR Experiences AMD FreeSync™ Technology HDR compatible CLASSY BLACK & WHITE DESIGN Traditional Fan Blade Dispersion Fan Blade Core/Memory Boost Clock / Memory Frequency up to 1268 MHz / 7000 MHz 8GB GDDR5 TORX Fan Dispersion fan blade: Steep curved blade accelerating the airflow. Traditional fan blade: Provides steady airflow to massive heat sink below. Zero Frozr: Stopping the fan in low-load
Inclusive of GST · GST invoice available
Overview
Features of MSI Radeon RX 570 Armor OC 8GB AMD Graphic Card
- Guiding the Future of Gaming
- Immersive VR Experiences
- AMD FreeSync™ Technology
- HDR compatible
- CLASSY BLACK & WHITE DESIGN
- Traditional Fan Blade
- Dispersion Fan Blade
Core/Memory
- Boost Clock / Memory Frequency
up to 1268 MHz / 7000 MHz - 8GB GDDR5
TORX Fan
- Dispersion fan blade: Steep curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
- Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
- Advanced Airflow Control technology: Improves cooling efficiency by using advanced aerodynamics to focus airflow.
Afterburner Overclocking Utility
- Wireless control through Android/iOS devices.
- Predator: In-game video recording.
- Kombustor: built-in DirectX12 benchmark.
- Supports multi-GPU setups.
All Solid Capacitors
- 10 years long lifetime under full load.
- Lower temperature and higher efficiency.
- Aluminum core for higher stability.
Get the Best graphics card prices from us today!
Specifications of MSI Radeon RX 570 Armor OC 8GB AMD Graphic Card
| Model | Radeon™ RX 570 ARMOR 8G OC |
| MEMORY SIZE | 8GB |
| Output | DisplayPort x 3 / HDMI / DL-DVI-D |
| Memory | MEMORY SPEED = 7000 MHz |
| MEMORY TYPE | GDDR5 |
| OpenGL | 4.5 |
| Core Name | Polaris 20 XL |
| Memory Bus | 256-bit |
| Core clock | 1268 MHz |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 570 |
| SERIES | RX 570 |
| Cores | 2048 Units |
| DirectX Version Support | 12 |
| HDCP Support | Y |
| Interface | PCI Express x16 |
| CHIPSET | AMD Radeon |
| Power Consumption | 150W |
| Weight (Card / Package) | 622 g / 972 g |
| Maximum Displays | 5 |
| Afterburner OC | Y |
| Recommended Power Supply | 600W |
| Multi-GPU Technology | Crossfire™, 2-Way (Bridgeless) |
| Card Dimension(mm) | 246 x 130 x 39 mm |
| VR Ready | Y |
| Power Connectors | 8-pin x 1 |
| WARRANTY | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
Datasheet
| Model | Radeon™ RX 570 ARMOR 8G OC |
|---|---|
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | MEMORY SPEED = 7000 MHz |
| Opengl | 4.5 |
| Output | DisplayPort x 3 / HDMI / DL-DVI-D |
| Series | RX 570 |
| Vr Ready | Y |
| Core Name | Polaris 20 XL |
| Core Clock | 1268 MHz |
| Memory Bus | 256-bit |
| Hdcp Support | Y |
| Afterburner Oc | Y |
| Maximum Displays | 5 |
| Power Connectors | 8-pin x 1 |
| Card Dimension(Mm) | 246 x 130 x 39 mm |
| Multi-Gpu Technology | Crossfire™, 2-Way (Bridgeless) |
| Directx Version Support | 12 |
| Weight (Card / Package) | 622 g / 972 g |
| Graphics Processing Unit | Radeon™ RX 570 |
| Recommended Power Supply | 600W |
| Memory Type | GDDR5 |
| Warranty | 3 Years |
| Chipset | AMD RADEON |
| Cores | 2048 Units |
| Memory Size | 8GB |
| Interface | PCI Express x16 |
| Power Consumption | 150W |
