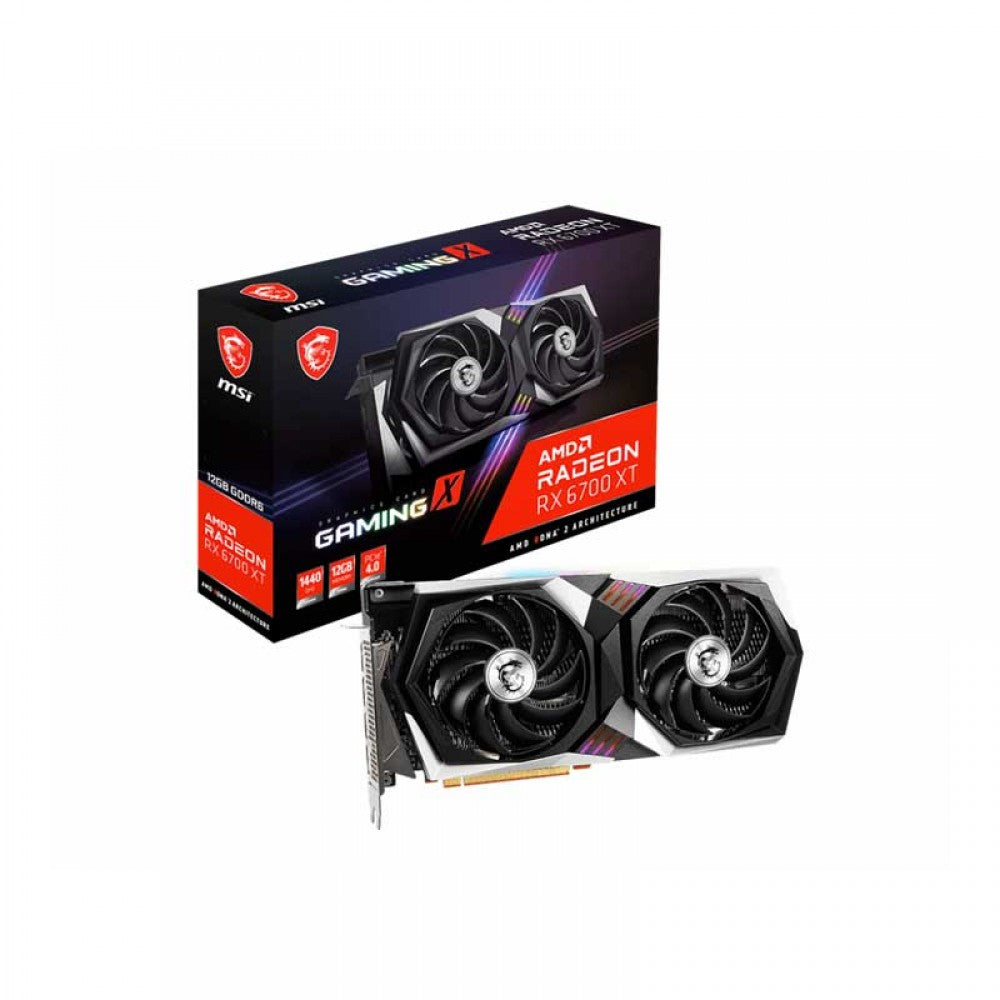

MSI Radeon RX 6700 XT Gaming X 12GB AMD Graphic Card
MPN MSI-RX6700XT · Brand MSI
Features of MSI Radeon RX 6700 XT Gaming X 12GB AMD Graphic Card Boost Clock / Memory Speed TBD / 16 Gbps 12GB GDDR6 DisplayPort x 3 (v1.4)HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) TWIN FROZR 8 Thermal Design TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure. Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink. Airflow Control
Inclusive of GST · GST invoice available
Overview
Features of MSI Radeon RX 6700 XT Gaming X 12GB AMD Graphic Card
Boost Clock / Memory Speed
- TBD / 16 Gbps
- 12GB GDDR6
- DisplayPort x 3 (v1.4)HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)
TWIN FROZR 8 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
- Dragon Center
- MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.

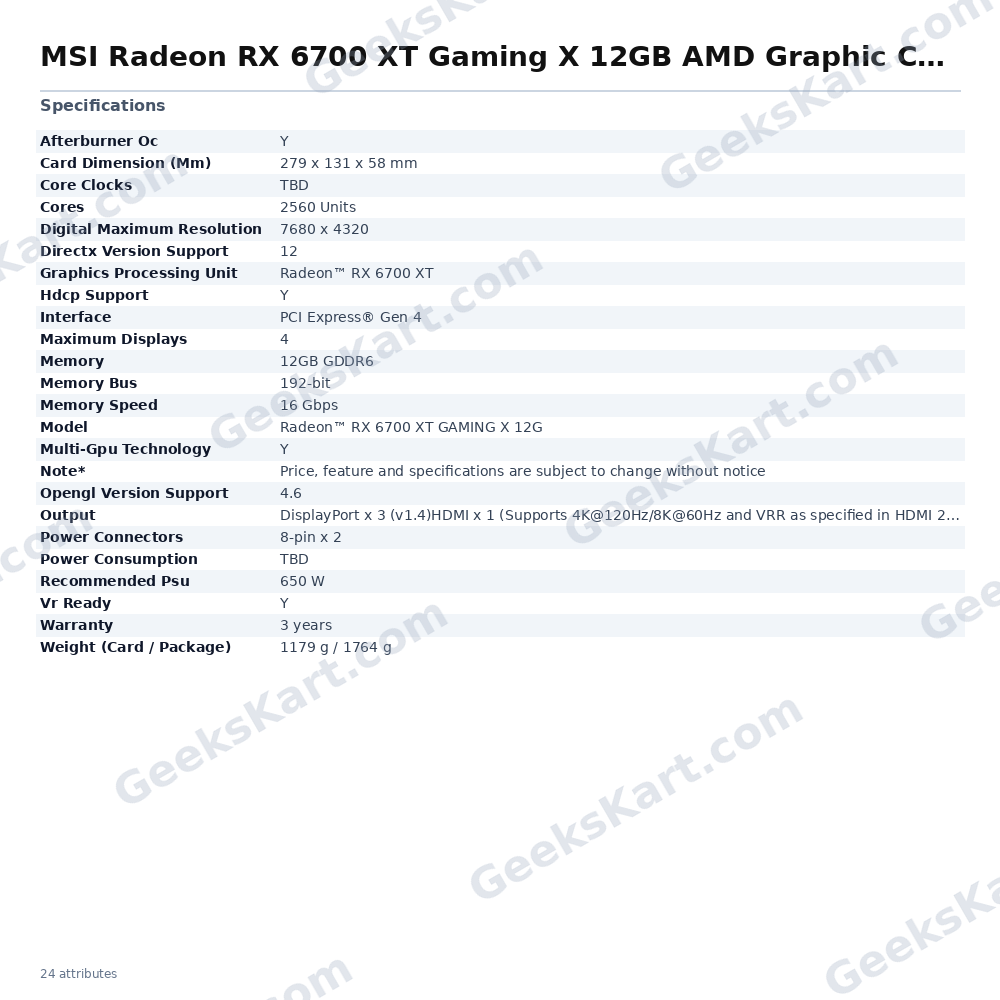

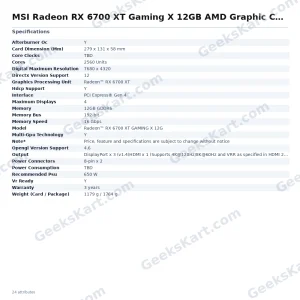

Specifications of MSI Radeon RX 6700 XT Gaming X 12GB AMD Graphic Card
| Model Name | Radeon™ RX 6700 XT GAMING X 12G |
| Graphics Processing Unit | Radeon™ RX 6700 XT |
| Interface | PCI Express® Gen 4 |
| Cores | 2560 Units |
| Core Clocks | TBD |
| Memory Speed | 16 Gbps |
| Memory | 12GB GDDR6 |
| Memory Bus | 192-bit |
| Output | DisplayPort x 3 (v1.4) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP Support | Y |
| Power Consumption | TBD |
| Power Connectors | 8-pin x 2 |
| Recommended PSU | 650 W |
| Card Dimension (Mm) | 279 x 131 x 58 mm |
| Weight (Card / Package) | 1179 g / 1764 g |
| DirectX Version Support | 12 |
| OpenGl Version Support | 4.6 |
| Multi-GPU Technology | Y |
| Afterburner OC | Y |
| Maximum Displays | 4 |
| VR Ready | Y |
| Digital Maximum Resolution | 7680 x 4320 |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice |
Datasheet
| Warranty | 3 Years |
|---|---|
| Cores | 2560 Units |
| Memory Speed | 16 Gbps |
| Interface | PCI Express® Gen 4 |
| Recommended PSU | 650 W |
| Power Consumption | TBD |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | 12GB GDDR6 |
| Output | DisplayPort x 3 (v1.4)HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| Vr Ready | Y |
| Memory Bus | 192-bit |
| Model | Radeon™ RX 6700 XT GAMING X 12G |
| Core Clocks | TBD |
| Hdcp Support | Y |
| Afterburner Oc | Y |
| Maximum Displays | 4 |
| Power Connectors | 8-pin x 2 |
| Card Dimension (Mm) | 279 x 131 x 58 mm |
| Multi-Gpu Technology | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 |
| Weight (Card / Package) | 1179 g / 1764 g |
| Graphics Processing Unit | Radeon™ RX 6700 XT |
| Digital Maximum Resolution | 7680 x 4320 |
