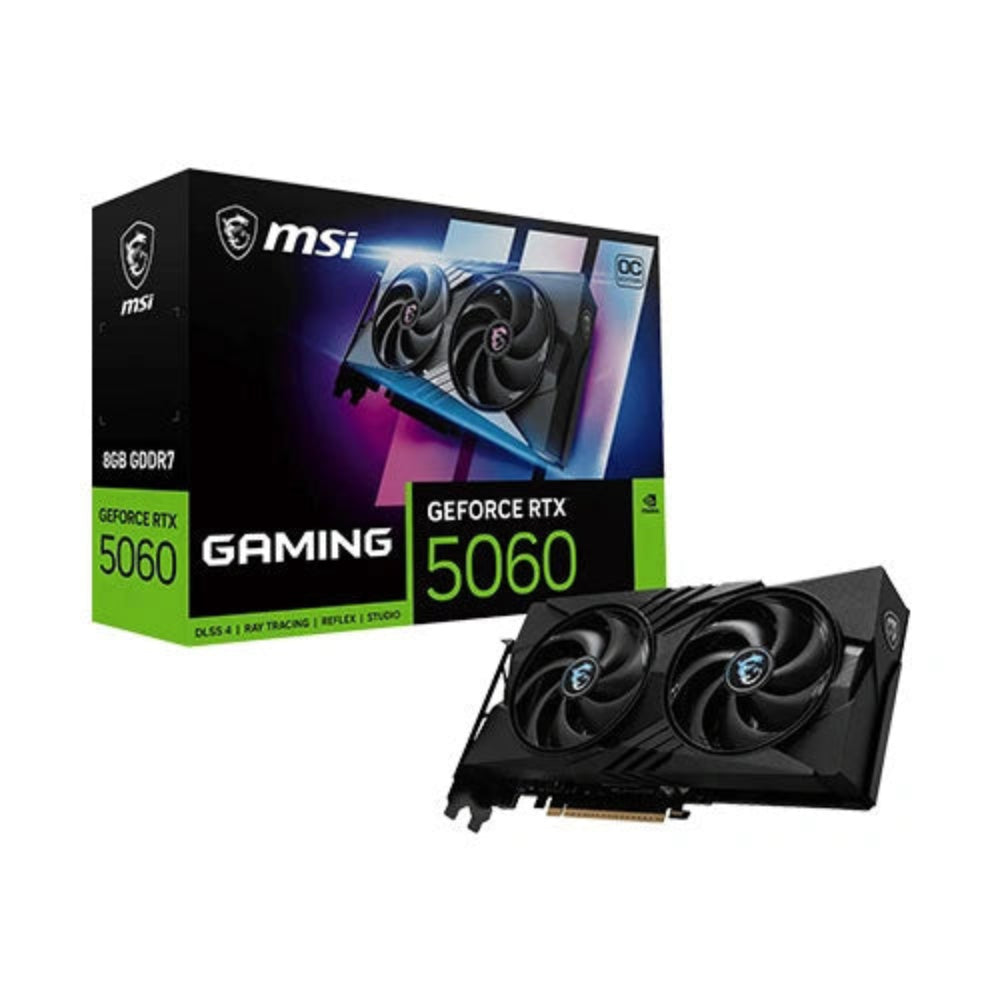

MSI RTX 5060 Gaming OC V1 8GB GDDR7 Graphics Card

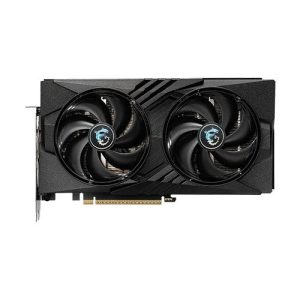

The MSI GeForce RTX 5060 Gaming OC V1 (model G5060-8GCV1) is a mid-range discrete graphics card built on the NVIDIA Blackwell architecture and equipped with support for DLSS 4.5, bringing AI-accelerated frame generation and upscaling to a wide audience of PC gamers and content creators. With 3,840 CUDA cores and 8 GB of high-bandwidth GDDR7 memory running across a 128-bit interface at 28 Gbps, this card delivers strong rasterisation and ray-tracing performance for its segment. At the heart of the cooling solution is MSI's TWIN FROZR 10 system, featuring two STORMFORCE fans. Each fan carries seven blades with a claw-texture surface and a circular-arc shroud profile that concentrates airflow while keeping acoustic output low. The WAVE-CURVED 3.0 geometry refines airflow over the areas under the fan motor where pressure would otherwise drop. When the GPU temperature is low — during light desktop use or video playback — the ZERO FROZR feature halts both fans entirely, producing a fully silent idle state. The fans resume automatically once thermals rise during intensive workloads. Thermal energy is captured by a nickel-plated copper baseplate that sits directly over the GPU die and memory modules, then routed away through a set of heat pipes to the heatsink fin array. A metal backplate reinforces the PCB against flex and incorporates airflow vents plus thermal pads that help dissipate heat from the rear of the board. The card connects via PCIe 5.0 and draws supplemental power through a single 8-pin connector, with a recommended PSU rating of 550 W. Display connectivity covers HDMI and DisplayPort outputs, supporting up to four simultaneous displays at resolutions up to 7680 × 4320 (8K). DirectX 12 Ultimate and OpenGL 4.6 ensure compatibility with current and near-future game engines and professional applications. MSI Center software provides real-time monitoring, fan curve customisation, and one-click performance profiles, while MSI Afterburner enables manual clock and voltage adjustments for users who want hands-on overclocking control. Verified specifications: GPU — NVIDIA GeForce RTX 5060 (Blackwell); CUDA cores — 3,840; Memory — 8 GB GDDR7; Memory interface — 128-bit; Memory bandwidth — 28 Gbps; Boost clock — 2,587 MHz; Extreme Performance clock (MSI Center) — 2,602 MHz; PCIe — 5.0; Power connector — 1 × 8-pin; Recommended PSU — 550 W; Display outputs — HDMI + DisplayPort; Max displays — 4; Max resolution — 7680 × 4320; DirectX — 12 Ultimate; OpenGL — 4.6; Warranty — 3 years
