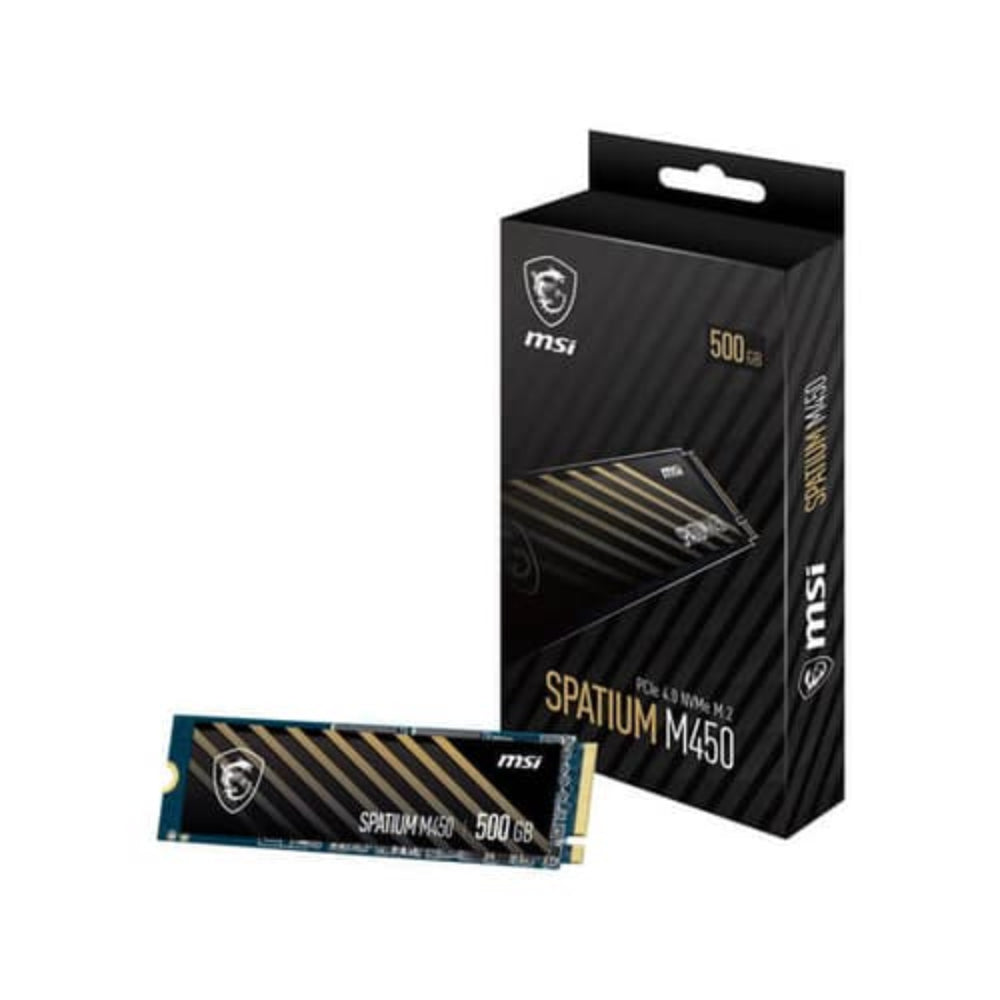

MSI Spatium M450 500GB M.2 NVME Gen4 Solid State Drive ( SSD )
MPN MSI-SPATIUM-M450-500GB-M-2-NVME-GEN4 · Brand MSI · M.2 2280
The MSI Spatium M450 500GB M.2 NVMe Gen4 SSD delivers sequential reads up to 3,600 MB/s and writes up to 2,300 MB/s via a PHISON E19T controller, backed by a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The MSI Spatium M450 500GB is a PCIe Gen4 M.2 NVMe solid state drive designed to deliver fast sequential throughput for both desktop and notebook systems. Built on the PCIe Gen4x4 interface and compliant with the NVMe 1.4 standard, it pairs a PHISON E19T controller with 3D NAND flash memory in the compact M.2 2280 (80 × 22 × 2.15 mm) form factor, making it straightforward to install in any compatible slot without a heatsink. For everyday tasks, game loading, and file transfers, the drive reaches sequential read speeds of up to 3,600 MB/s and sequential write speeds of up to 2,300 MB/s. Random 4K performance is rated at up to 300,000 IOPS read and 550,000 IOPS write, keeping the system responsive even under mixed workloads. Maximum operating power is 3.4 W, dropping to 40 mW at PS3 idle and just 5 mW in the L1.2 low-power state — a consideration for notebook battery life. Endurance for the 500GB capacity is rated at 300 TBW (terabytes written), with a mean time between failure of up to 1,500,000 hours. Built-in error-correction capabilities help preserve data integrity over the drive's lifespan. MSI backs the Spatium M450 with a 5-year warranty (or until the rated TBW is reached, whichever comes first). The drive is compatible with MSI Center software for health monitoring and performance metrics, and Actiphy backup software is included for data protection. Verified Specifications: • Capacity: 500 GB • Form Factor: M.2 2280 • Interface: PCIe Gen4x4, NVMe 1.4 • Controller: PHISON E19T • Flash: 3D NAND • Sequential Read: up to 3,600 MB/s • Sequential Write: up to 2,300 MB/s • Random Read (4K): up to 300,000 IOPS • Random Write (4K): up to 550,000 IOPS • Endurance (TBW): 300 • MTBF: up to 1,500,000 hours • Max Operating Power: 3.4 W • Idle Power (PS3): 40 mW • Low Power (L1.2): 5 mW • Operating Temperature: 0°C – 70°C • Storage Temperature: –40°C – 85°C • Dimensions: 80.00 mm (L) × 22.00 mm (W) × 2.15 mm (H) • Warranty: 5 years or rated TBW, whichever is reached first

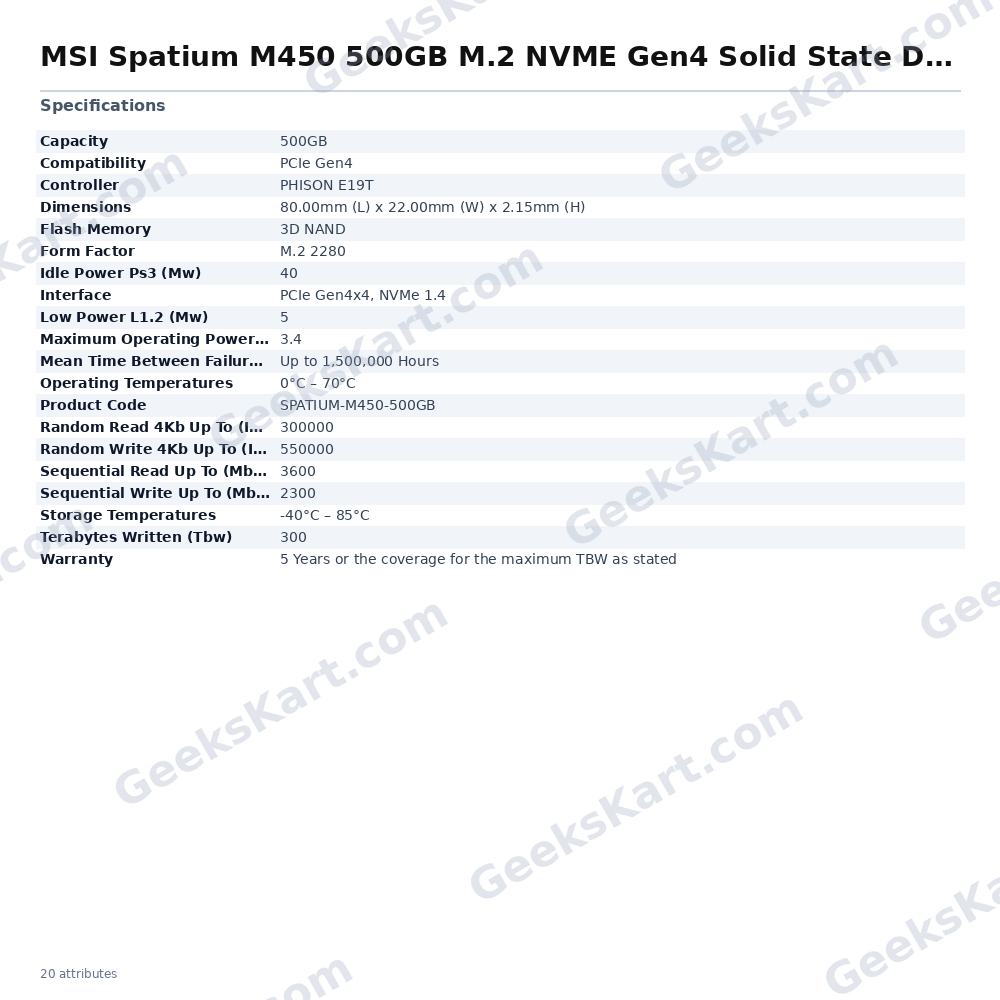

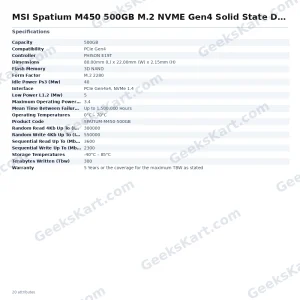

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 500GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4x4, NVMe 1.4 |
| Controller | PHISON E19T |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| Flash Memory | 3D NAND |
| Product Code | SPATIUM-M450-500GB |
| Compatibility | PCIe Gen4 |
| Idle Power Ps3 (Mw) | 40 |
| Low Power L1.2 (Mw) | 5 |
| Storage Temperatures | -40°C – 85°C |
| Operating Temperatures | 0°C – 70°C |
| Terabytes Written (Tbw) | 300 |
| Maximum Operating Power (W) | 3.4 |
| Random Read 4Kb Up To (Iops) | 300000 |
| Sequential Read Up To (Mb/S) | 3600 |
| Random Write 4Kb Up To (Iops) | 550000 |
| Sequential Write Up To (Mb/S) | 2300 |
| Mean Time Between Failure (Mtbf) | Up to 1,500,000 Hours |
