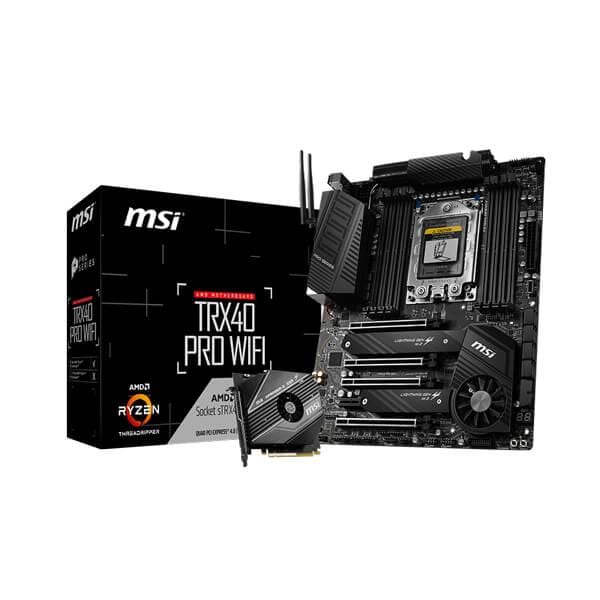

MSI TRX40 Pro Wifi DDR4 AMD Motherboard

The MSI TRX40 Pro WiFi is a full-size ATX motherboard built specifically for AMD's 3rd Generation Ryzen Threadripper desktop processors using the sTRX4 socket. Powered by the AMD TRX40 chipset, it is engineered for high-end desktop (HEDT) workloads including content creation, 3D rendering, scientific computing, and serious multi-threaded gaming. Memory support is expansive: eight DDR4 DIMM slots arranged in a quad-channel architecture accommodate up to 256 GB of RAM. Standard JEDEC profiles run from 2133 MHz through 3200 MHz, while XMP overclocking can push a single rank, single DIMM-per-channel configuration up to 4666 MHz. Both ECC and non-ECC unbuffered DIMMs are supported, making the board equally relevant for workstation and creative professional use cases. Expansion is handled by four PCIe 4.0 x16 slots operating in x16/x8/x16/x8 configurations, enabling up to 3-way NVIDIA SLI or 3-way AMD CrossFire multi-GPU setups. An additional PCIe 3.0 x1 slot covers peripheral cards. Two onboard M.2 Key-M slots both support PCIe 4.0 x4, allowing twin NVMe SSDs to operate at full Gen 4 bandwidth. Eight SATA 6 Gb/s ports round out the storage connectivity, with RAID 0, 1, and 10 support across SATA devices. Networking combines dual Intel I211AT Gigabit LAN controllers with an Intel Wi-Fi 6 AX200 module (802.11 a/b/g/n/ac/ax, up to 2.4 Gbps on 160 MHz channels) and Bluetooth 5. USB connectivity on the rear panel includes a USB 3.2 Gen 2x2 Type-C port at 20 Gbps, two USB 3.2 Gen 2 Type-A ports at 10 Gbps, and two USB 3.2 Gen 1 Type-A ports; internal headers add further USB 3.2 Gen 1 and USB 2.0 ports. Audio is driven by a Realtek ALC1220 codec delivering 7.1-channel high-definition audio alongside a Realtek ALC4050H codec for front and rear panel microphone input, plus optical S/PDIF output. Fan control extends across one CPU fan header, one water-pump header, and four system fan headers. RGB and addressable RGB headers include one 5050 4-pin connector, two 3-pin ARGB connectors, and one 3-pin Corsair LED connector. Verified Specifications: - Socket: AMD sTRX4 (3rd Gen Ryzen Threadripper) - Chipset: AMD TRX40 - Form Factor: ATX, 12 in. x 9.6 in. (30.4 cm x 24.4 cm) - Memory: 8x DDR4 DIMM, quad-channel, up to 256 GB, max OC 4666 MHz (1DPC 1R) - PCIe Slots: 4x PCIe 4.0 x16; 1x PCIe 3.0 x1 - M.2: 2x Key-M PCIe 4.0 x4 / SATA - SATA: 8x 6 Gb/s; RAID 0/1/10 - LAN: 2x Intel I211AT Gigabit - Wireless: Intel Wi-Fi 6 AX200 (802.11ax, up to 2.4 Gbps); Bluetooth 5 - USB (rear): 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x Gen 2 Type-A (10 Gbps), 2x Gen 1 Type-A - Audio: Realtek ALC1220 + ALC4050H, 7.1-channel HD, optical S/PDIF out - Power: 1x 24-pin ATX + 2x 8-pin EPS - OS Support: Windows 10 64-bit - Warranty: 3 Years
