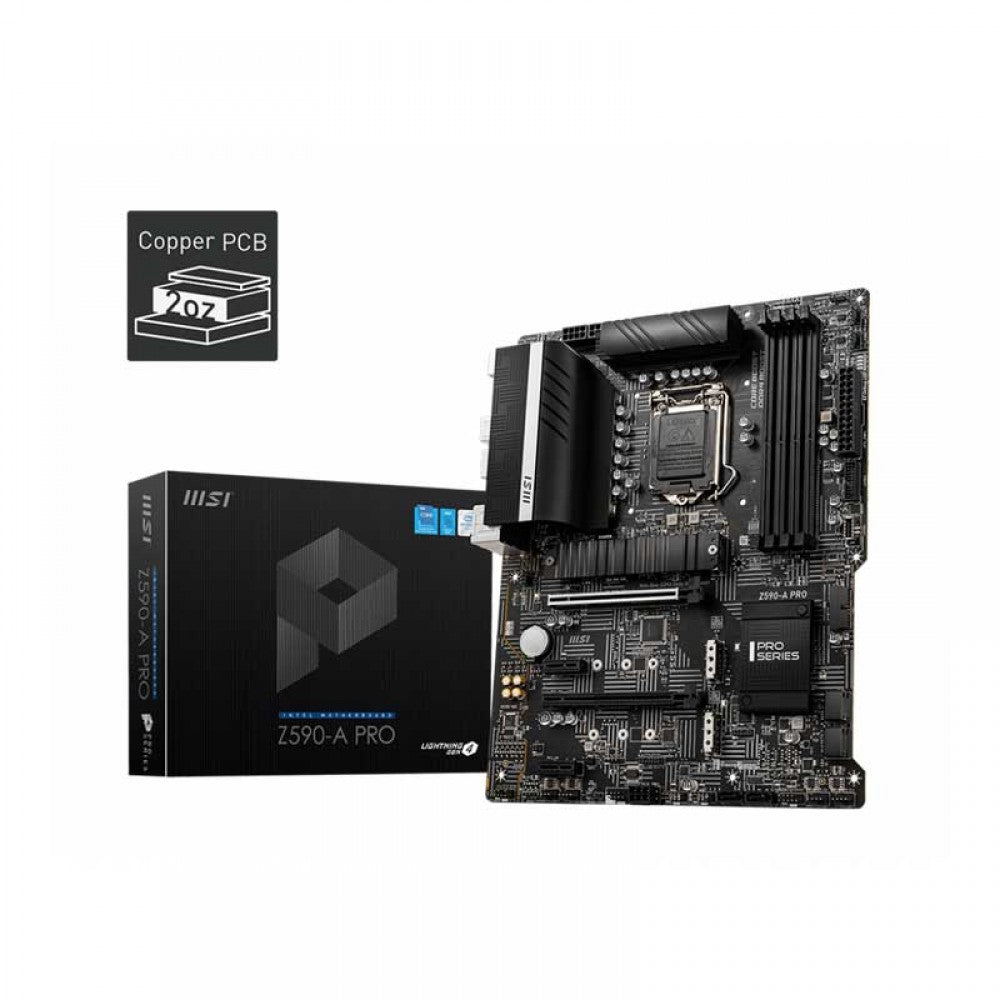

MSI Z590-A Pro DDR4 Intel Motherboard

The MSI Z590-A Pro is an ATX form-factor motherboard built on Intel’s Z590 chipset, designed for users who need a stable, feature-rich platform for 10th and 11th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA1200 socket. It delivers a well-rounded balance of connectivity, storage, and overclocking headroom without unnecessary excess, making it a practical choice for productivity workstations, content-creation rigs, and enthusiast builds alike. At the heart of the board’s power delivery sits a 12+2+1 phase VRM design paired with an 8-pin and 4-pin ATX 12V power input. An extended PWM heatsink with a 7W/mK thermal pad helps keep temperatures in check even under sustained heavy workloads. MSI’s Core Boost technology is designed to optimize current delivery to the CPU for both multi-core operation and overclocking attempts. Memory support extends to four DDR4 DIMM slots accommodating up to 128 GB in dual-channel configuration. With 11th Gen processors, JEDEC-rated speeds reach 3200 MHz natively, while Intel XMP profiles can push overclocked configurations beyond that. MSI’s onboard M.2 Shield Frozr heatsinks cover the M.2 slots to help manage SSD thermals during sustained read/write operations. Connectivity is a clear strength. The rear panel houses a USB 3.2 Gen 2×2 Type-C port at 20 Gbps, a USB 3.2 Gen 2 Type-A at 10 Gbps, two USB 3.2 Gen 1 Type-A ports at 5 Gbps, and four USB 2.0 Type-A ports, complemented by additional internal headers for front-panel expansion. Networking is handled by an Intel I225-V controller delivering 2.5 Gbps wired LAN, a meaningful step up over standard Gigabit solutions. Display output via HDMI 2.0b (up to 4K/60Hz) and DisplayPort 1.4 (up to 4K/60Hz) is available when using a CPU with integrated graphics. Fan control is comprehensive, with six 4-pin system fan headers, a dedicated 4-pin CPU fan header, and a 4-pin water-pump header supporting up to 2A for AIO or custom loop cooling. MSI’s Frozr AI Cooling and Total Fan Control utilities manage speeds automatically based on CPU and GPU thermal readings. Verified Specifications: – Form Factor: ATX, 12 in. x 9.6 in. (30.5 cm x 24.4 cm) – Socket: LGA1200 – Chipset: Intel Z590 – CPU Support: 10th & 11th Gen Intel Core, Pentium Gold, Celeron – Memory: 4x DDR4 slots, max 128 GB, dual-channel, XMP supported – Storage: 3x M.2 (Key M) slots; 6x SATA 6 Gb/s ports; RAID 0/1/5/10 for SATA; RAID 0/1 for NVMe – PCIe: 2x PCIe x16 (x16/x4); 2x PCIe 3.0 x1; PCIe 4.0 on primary slot with 11th Gen CPU – USB: 1x USB 3.2 Gen 2×2 20Gbps Type-C (rear); 1x USB 3.2 Gen 2 10Gbps Type-A (rear); 2x USB 3.2 Gen 1 5Gbps Type-A (rear); 4x USB 2.0 Type-A (rear) – LAN: Intel I225-V 2.5Gbps – Audio: Realtek ALC897, 7.1-channel HD Audio – Display Output: 1x HDMI 2.0b, 1x DisplayPort 1.4 (iGPU required) – Multi-GPU: 2-Way AMD CrossFire – Power Connectors: 24-pin ATX + 8-pin + 4-pin ATX 12V – Warranty: 3 Years
