Nextron Nforce RX 580 8GB GDDR5 Graphics Card
MPN RX-580-8GB-GDDR5 · Brand NEXTRON
The Nextron Nforce RX 580 packs 8GB GDDR5 memory across a 256-bit bus, 2048 stream processors, and AMD FreeSync support into a dual-fan design — a capable AMD Radeon GPU for 1080p gaming
Inclusive of GST · GST invoice available
Overview
The Nextron Nforce RX 580 8GB GDDR5 Graphics Card is powered by AMD's Radeon RX 580 architecture and built for reliable 1080p gaming and everyday creative work. Featuring 2048 stream processors and a 256-bit memory interface paired with 8GB of GDDR5 memory running at 7 Gbps effective clock speed, this card delivers the memory bandwidth needed for smooth frame rates in demanding titles. The GPU runs at a base engine clock of 1244 MHz and is based on AMD's Radeon chipset, which brings native support for DirectX 12, OpenGL 4.6, and AMD FreeSync technology. FreeSync synchronises the display refresh rate with the GPU's output, reducing screen tearing and stuttering for a more fluid visual experience—provided you pair it with a compatible FreeSync monitor. The card is also certified VR Ready, meaning it meets AMD's minimum specification thresholds for connected VR headsets. Cooling is handled by a dual-fan heatsink design that keeps thermals in check during extended gaming sessions. The card connects via PCI Express 3.0 and requires a single 8-pin power connector, with AMD recommending a minimum 550W power supply unit for stable operation. Display output options include HDMI and DisplayPort, supporting up to four simultaneous displays at resolutions up to 7680 x 4320 (8K passthrough where supported). Additional Radeon Software features included with this card are Radeon ReLive for game capture and streaming, Radeon Chill for adaptive frame-rate-based power saving, and LiquidVR Technology for reduced latency in VR applications. Verifiable Specifications: - GPU: AMD Radeon RX 580 - Stream Processors: 2048 - Memory: 8GB GDDR5 - Memory Interface: 256-bit - Memory Clock: 7 Gbps - Engine Clock: 1244 MHz - PCI Express: 3.0 - Power Connector: 1 x 8-pin - Recommended PSU: 550W - Display Outputs: HDMI, DisplayPort - Max Displays: 4 - Max Resolution: 7680 x 4320 - DirectX: 12 | OpenGL: 4.6 - Cooler: Dual Fan Heatsink - Warranty: 3 Years

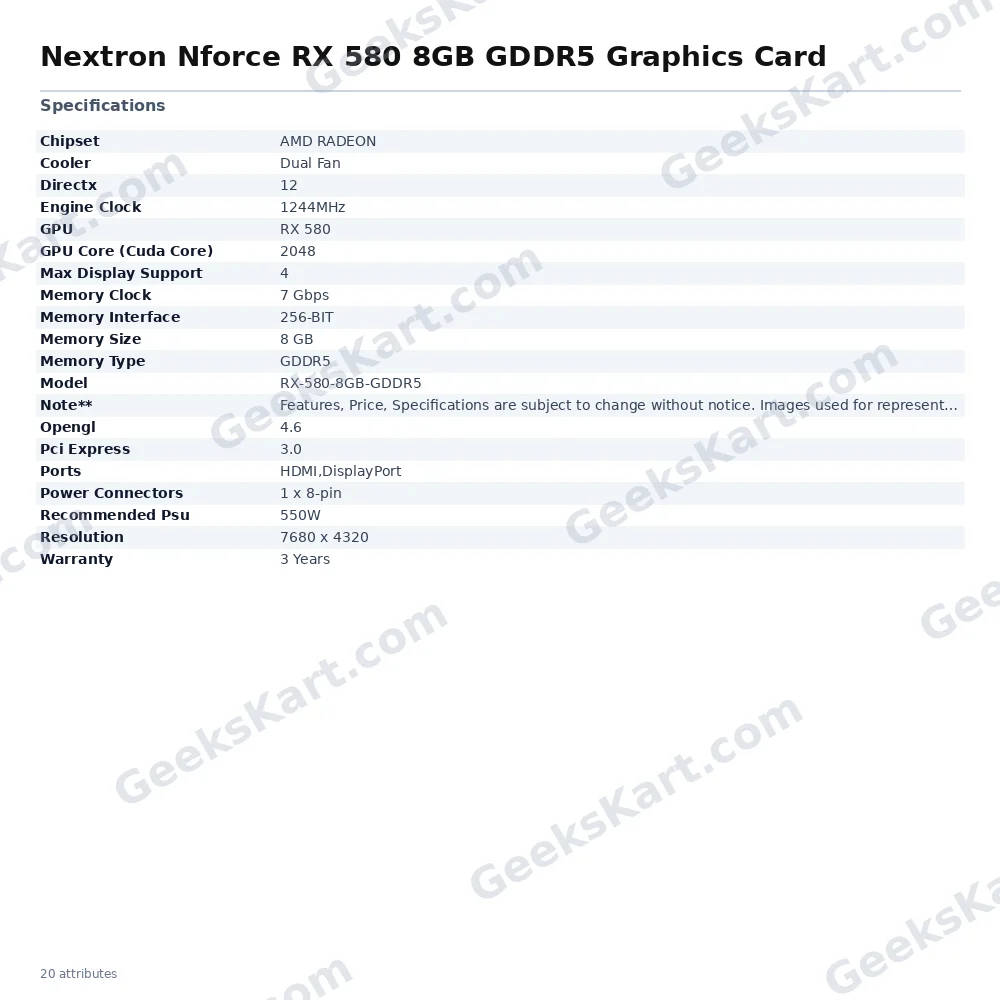

Datasheet
| Memory Type | GDDR5 |
|---|---|
| Warranty | 3 Years |
| Chipset | AMD RADEON |
| Memory Size | 8 GB |
| GPU | RX 580 |
| Memory Clock | 7 Gbps |
| Recommended PSU | 550W |
| Resolution | 7680 x 4320 |
| Model | RX-580-8GB-GDDR5 |
| Ports | HDMI,DisplayPort |
| Cooler | Dual Fan |
| Note** | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
| Opengl | 4.6 |
| Directx | 12 |
| Pci Express | 3.0 |
| Engine Clock | 1244MHz |
| Memory Interface | 256-BIT |
| Power Connectors | 1 x 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 2048 |
