Noctua NH-D15 chromax.black Dual-Tower CPU Air Cooler with 2× NF-A15 140mm Fans
MPN NH-D15-CHROMAX-BLACK · Brand NOCTUA
The Noctua NH-D15 chromax.black is a six-heatpipe dual-tower CPU air cooler featuring two 140mm NF-A15 PWM fans, an all-black finish, SecuFirm2 multi-socket mounting (AM5, AM4, LGA1700 and more), and a 6-year warranty
Inclusive of GST · GST invoice available
Overview
The Noctua NH-D15 chromax.black is the all-black variant of Noctua's flagship NH-D15 dual-tower CPU air cooler. It carries forward the same core engineering — a six-heatpipe dual-tower heatsink paired with two NF-A15 140mm PWM fans — while wrapping every component in an all-black finish: black-coated aluminium fins, black fan blades, black anti-vibration pads, black fan clips, and black mounting hardware, making it a natural fit for stealth-themed builds or any colour scheme that benefits from a neutral base. The heatsink uses a copper base and copper heatpipes with aluminium cooling fins, all joined via soldered interfaces rather than press-fit connections. Soldering ensures the thermal bond between heatpipes and fins does not degrade over years of heat cycling, which press-fitted coolers can be susceptible to. The fin stack measures 150 mm wide — 10 mm wider than its predecessor, the NH-D14 — with heatpipes spaced further apart to distribute heat more uniformly across the larger surface area. Each of the two supplied NF-A15 HS-PWM chromax.black fans spins up to 1,500 RPM (±10%) and produces a maximum airflow of 140.2 m³/h at a peak noise level of 24.6 dB(A). Using the included NA-RC7 Low-Noise Adaptors reduces the ceiling to 1,200 RPM and drops noise to 19.2 dB(A). Minimum speed at 20% PWM signal is 300 RPM. The fans use Noctua's SSO2 self-stabilising oil-pressure bearing and carry an MTTF rating of more than 150,000 hours. A NA-YC1 4-pin PWM splitter cable allows both fans to run from a single motherboard header. In single-fan mode the recessed lower fins provide 66 mm of RAM clearance, accommodating most tall memory heatsinks. In dual-fan mode standard-height RAM up to 32 mm is recommended; in chassis with more than 165 mm CPU cooler clearance the front fan can be shifted upward to accommodate taller modules. The SecuFirm2 multi-socket mounting system covers Intel LGA1851, LGA1700, LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), and LGA20xx (LGA2066, LGA2011-0, LGA2011-3 Square ILM), as well as AMD AM4 and AM5. The package includes Noctua's NT-H1 pro-grade thermal compound. The cooler is colour-customisable via optional NA-HC3/NA-HC4 heatsink covers and NA-SAVP3 anti-vibration pads (sold separately in black, blue, green, red, yellow, and white). Verified Specifications: • Heatsink height / width / depth (without fan): 160 mm / 150 mm / 135 mm • Overall height / width / depth (with fans): 165 mm / 150 mm / 161 mm • Weight without fans: 980 g | Weight with fans: 1,320 g • Material: Copper base & heatpipes, aluminium fins, soldered joints, nickel plating • Heatpipes: 6 • Fans: 2× Noctua NF-A15 HS-PWM chromax.black, 140 mm • Fan bearing: SSO2 • Max. fan speed: 1,500 RPM (±10%) | With LNA: 1,200 RPM (±10%) • Min. fan speed (20% PWM): 300 RPM (±20%) • Max. airflow: 140.2 m³/h | With LNA: 115.5 m³/h • Max. noise: 24.6 dB(A) | With LNA: 19.2 dB(A) • NSPR: 183 • Voltage: 12 V • MTTF: >150,000 hours • Socket support: AMD AM5, AM4; Intel LGA1851, LGA1700, LGA1200, LGA115x, LGA20xx • Warranty: 6 years

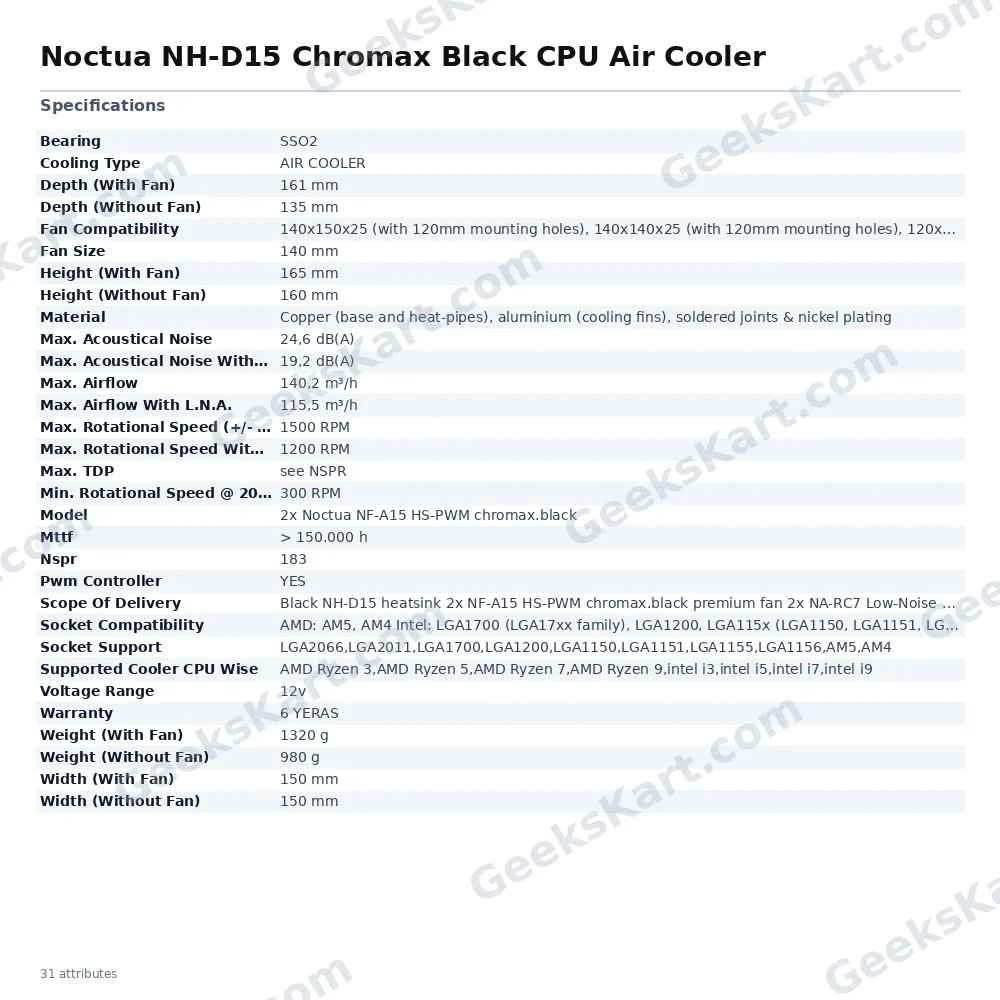

Datasheet
| Mttf | > 150.000 h |
|---|---|
| Nspr | 183 |
| Model | 2x Noctua NF-A15 HS-PWM chromax.black |
| Bearing | SSO2 |
| Fan Size | 140 mm |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Max. TDP | see NSPR |
| Cooling Type | AIR COOLER |
| Max. Airflow | 140,2 m³/h |
| Voltage Range | 12v |
| Pwm Controller | YES |
| Socket Support | LGA2066,LGA2011,LGA1700,LGA1200,LGA1150,LGA1151,LGA1155,LGA1156,AM5,AM4 |
| Depth (With Fan) | 161 mm |
| Width (With Fan) | 150 mm |
| Fan Compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| Height (With Fan) | 165 mm |
| Scope Of Delivery | Black NH-D15 heatsink 2x NF-A15 HS-PWM chromax.black premium fan 2x NA-RC7 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Noctua Metal Case-Badge |
| Weight (With Fan) | 1320 g |
| Depth (Without Fan) | 135 mm |
| Width (Without Fan) | 150 mm |
| Height (Without Fan) | 160 mm |
| Socket Compatibility | AMD: AM5, AM4 Intel: LGA1700 (LGA17xx family), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0 and LGA2011-3 Square ILM) |
| Weight (Without Fan) | 980 g |
| Max. Acoustical Noise | 24,6 dB(A) |
| Max. Airflow With L.N.A. | 115,5 m³/h |
| Supported Cooler CPU Wise | AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9,intel i3,intel i5,intel i7,intel i9 |
| Max. Rotational Speed (+/- 10%) | 1500 RPM |
| Max. Acoustical Noise With L.N.A. | 19,2 dB(A) |
| Min. Rotational Speed @ 20% Pwm (+/-20%) | 300 RPM |
| Max. Rotational Speed With L.N.A. (+/- 10%) | 1200 RPM |
| Warranty | 6 YERAS |
